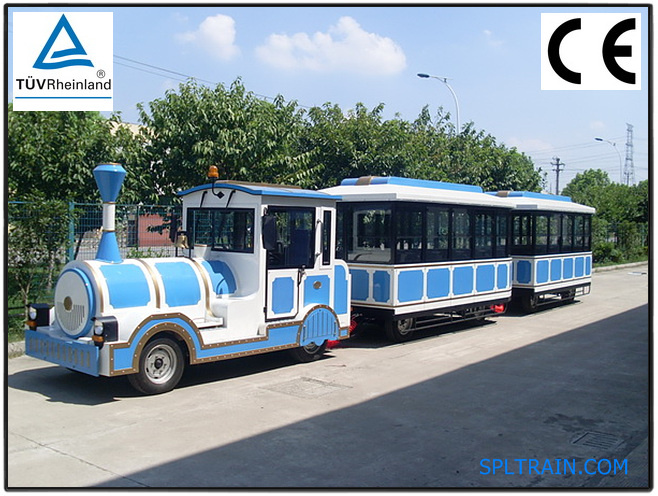

This trackless fun train is running by diesel engine. It is very maneuverable, environmentally friendly and powered by a silent 92KW diesel engine with TUV approval. It is designed for intensive use and ideal for city tour, parks, zoos, amusement parks, and special events. The train is comprised of a locomotive and 2 passenger wagons and will carry 42passengers to 62passengers.
More specification as follows:
LOCOMOTIVE SPECIFICATION
DIMESION
Length: 3965mm
Width: 1620mm
Height: 2210mm
MOTOR
Iveco Sofim 8140.43S diesel engine, common rail, 4 cylinders, Turbo-charged, intercooler, direct injection, Displacement of 2798CC, Rated power of 92/3600 KW/(r/min), EURO 3, TUV approval
CHASSIS
Supporting structure in steel section with parabolic suspension. Steering wheel provided with hydraulic power.
STEERING
Professional steering column assembly, 4-direction adjustable (forward-backward, up-down).
BRAKES
Hydraulic drum brakes on wheels; Parking brake. Pneumatic hydraulic converter for controlling wagon brakes. Pneumatic circuit for coach braking.
TRANSMISSION
Original Iveco transmission, 3 forward gears with reverse, speed is reduced by using helical gears.
BODY
Made of reinforced fiberglass, with ROHS approval.
WAGON SPECIFICATION
DIMESION
Length: 3940mm
Width: 1810mm
Height: 2410mm
CHASSIS
In reinforced powder-coated steel, parabolic suspension, 4-wheel steering system, which ensures all the coaches follow the exact path taken by the Locomotive. Floor in aluminum tread plate; Leather seats and backrests padded with sponge.
BRAKES
Hydraulic drum brakes on 4 wheels; Pneumatic hydraulic converter for controlling wagon brakes. Pneumatic circuit for coach braking. If not connected with Locomotive, the wagon will brake itself.
BODY
Made of reinforced fiberglass with RoHS approval.
CAPACITY
20 adults or 25children
This road train could be widely used for city tour or tourist transportation.
2. Advantages
1) Product made by the joint venture by China and Austria
2) Product has passed latest CE approval according to European regulation
3) The company got ISO approval from TUV Germany with scope of Dsign and Manufacturing of Sightseeing and Tourist vehicles
4) The train body is using environmental FRP materail with European RoHS testing approval
5) The couplings used are from original Germany ROCKINGER
Established in 1987, CMEC Suzhou Co., Ltd. is the export partner with China Platec Group Corporation(PTC GROUP), with headquarter in Suzhou.
Platec Group is specially engaged in marine equipments, amusement equipments, leisure vehicles, auto accessories, food machinery, etc.
Now with the cooperation of CMEC for overseas market, Platec has established good business relationship with more than 70 countries and areas. We sincerely wish to establish long-term cooperation relationship with your esteemed company.
