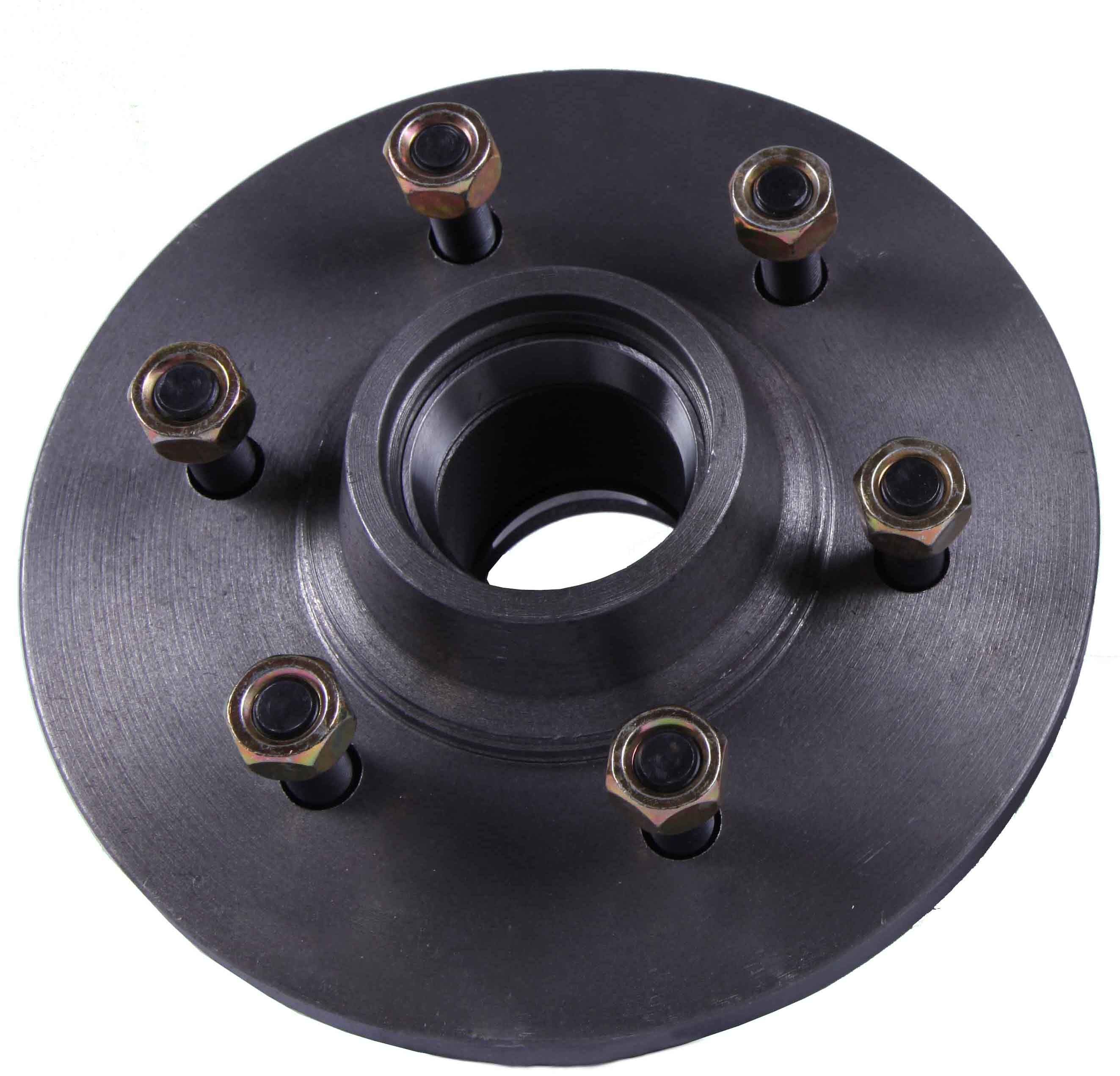

SG grade casting hub.
Hub Lazy HT Stud Pattern LM Bearings Gal
Without bearing cone, cups only
Hub Lazy HT Stud Pattern SL Bearings Gal
Without bearing cone, cups only
Hub Lazy Ford Stud Pattern LM Bearings Gal
Hub Lazy Ford Stud Pattern LM Bearings Raw
Hub Lazy Ford Stud Pattern SL Bearings Gal
Hub Lazy HQ Stud Pattern LM Bearings Raw
|
Item No. |
Weight Capacity per Pair |
PCD |
Stud Qty |
Stud Size |
Dust Cap |
|
HLFN/G |
1000 kg |
114.3mm |
5 |
1/2" UNF |
DC45 |
|
HLHTN/G |
1000 kg |
107.9mm |
5 |
7/16" UNF |
DC45 |
|
HLCN/G |
1000 kg |
120.00mm |
5 |
7/16" UNF |
DC45 |
|
HLHQN/G |
1000 kg |
120.65mm |
5 |
7/16" UNF |
DC45 |
|
HLGEN/G |
1000 kg |
100.0mm |
4 |
7/16" UNF |
DC45 |
|
HLMINN/G |
1000 kg |
101.6mm |
4 |
7/16" UNF |
DC45 |
|
HLDATN/G |
1000 kg |
114.3mm |
4 |
7/16" UNF |
DC45 |
|
HLLCN/G |
1500 kg |
139.7mm |
6 |
1/2" UNF |
DC45 |
|
HLLCN5/G |
1500 kg |
139.7mm |
5 |
9/16" UNF |
DC45 |
|
LC6SLP/G |
1800 kg |
139.7mm |
6 |
1/2" UNF |
DC63 |
|
DDLC6S/G |
2000 kg |
139.7mm |
6 |
1/2" UNF |
DC63 |
|
DDLC5S/G |
2000 kg |
150.0mm |
5 |
9/16" UNF |
DC63 |
World Champion is a ISO9001 certified company and specialized in trailers, trailer parts and accessories. We have been produced axles, hub drums, hub lazy, hub discs, couplings, jockey wheels, fabrication parts, and stamping parts to complete trailers. We have numerous CNC machining, drilling, linear cutting, milling, hobbing, stamping machineries. We have machining factory, sand casting, and precision cast steel foundries. Our R&D Department could base on clients 'needs to sketch in CAD or 3D drawings. Produce tooling to develop new products to suit our clients' markets, and customer's designs also very welcome.
