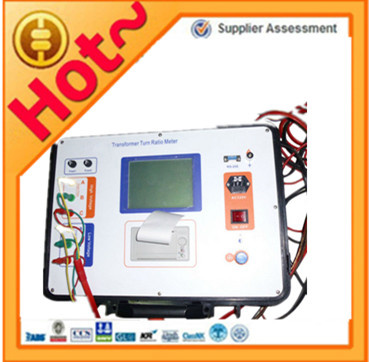

Transformer Current Voltage Ratio Tester

Portable test processing plant for transformer current  voltage ratio test
Product Application
TPOM-901 is applied to measure the voltage ratio of three or single phase transformer.
All the data and test results are shown on a 320*240 LCD screen.
All the test results could be printed by the micro printer or saved in the storage of the tester.
The tester has a good performance on auto protection and anti-disturb.
Product Features
1. The voltage ratio measurement of three or singe phase transformer
2. The group vector measurement of three phase transformer.
3. The polarity measurement of single phase transformer or CT
4. Voltage ratio error calculation
5. Voltage ratio range calculation of three phase transformer
6. Current transformer ratio measurement
7. Excitation current measurement in ratio testing
8. Reproduction the AC test voltage from power source to reduce the effects of bad power source
9. Save the test results in the memory internal the tester
10. Print the test results by micro printer
11. Reverse connection detect unit to prevent the high voltage injected to the operate
12. Over current protection in test voltage
13. Upload the test results to make word report by RS232 interface


Technical Parameter

1. Ratio measurement range:1-10000
2. Group measurement:1-12
3. Phase measurement error:1 degree
4. Ratio measurement error:1-2000 ± 0.2%   2000-10000  ± 0.5%
5. Power supply:AC220V ± 10%, 50Hz
6. Size 400´350´200  mm3     Weight 7kg

Our Services
Your inquiry related to our products or prices will be replied in 24 hours.
Well-trained and experienced staffs to answer all your enquires in fluent English.
Professional service from well-trained and experienced staffs is customers' best choice to secure good communication, on time delivery, reliable warranty etc.
OEM is available for TOP Products.
Protection of your sales area, ideas of design and all your private information.

Q: why is it important to have purified oil in a transformer?
A: Dissolved gasses in transformer oil can cause arcing, corona discharges, and overheating--reducing the electrical efficiency and lifetime of the transformer. Likewise, water contamination
levels as low as 30 ppm (parts per million) can adversely affect the insulating strength of the oil.
With ever-increasing standards for energy efficiency of power distribution transformers, the need to
effectively degas will become even more important in the future.
