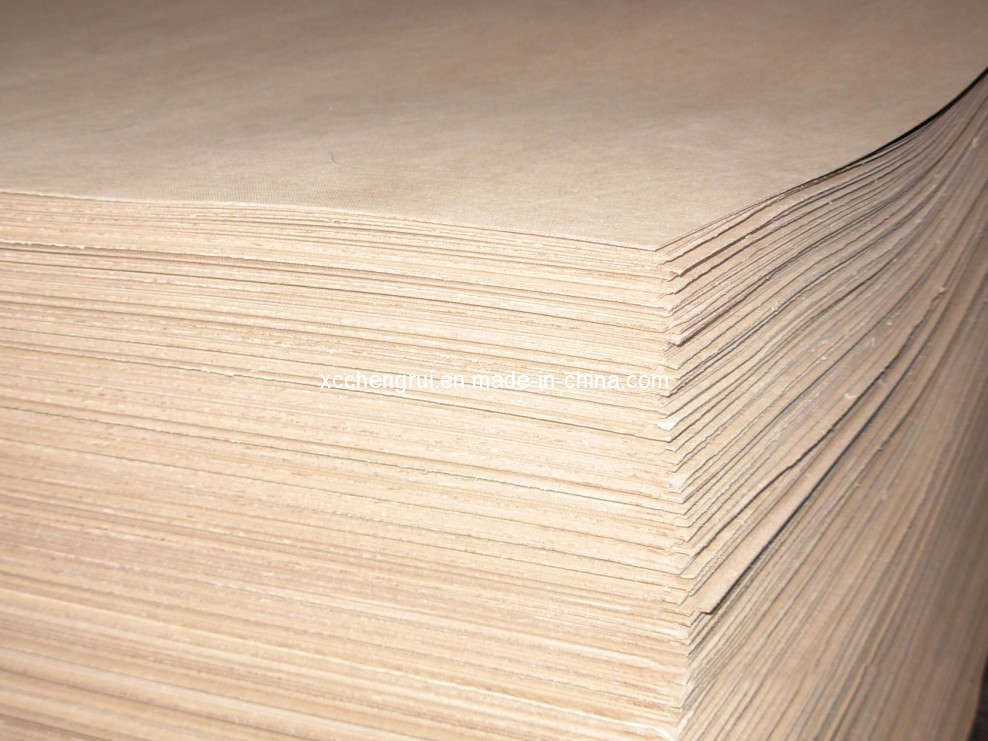

Transformer Insulation Cable Paper
| Price: |
US $ 1.4kg |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000kg |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
0.05mm 0.08mm 960mm width |
| Markets: |
North America,Africa,Mid East,Eastern Asia,Western Europe |
| Application: |
Switch Baseplate |
| Type: |
Solid |
| Chemistry: |
Inorganic Insulation |
| Material: |
Paper |
| Thermal Rating: |
E 120 |
| Maximum Voltage: |
20KV~100KV |
| Brand: |
Chr |
Product Description
1. DIMENSIONS:
| MARK | THICKNESS | WIDTH | LENGTH |
| a) K-120/125 | 0.12/0.125 ± 0.01 mm | 960 mm. | Coil |
| b) K-80 | 0.08 ± 0.007 mm | 960 mm. | Coil |
2. USE: In Transformer for electrical Purpose :
3. MATERIAL : 100% Sulphate / Kraft Pulp
4. COLOUR : Natural Brown
5. CHARACTERISTICS
a) Density :0.76 ± 0.06 Kg/dm3
b) Tensile Strength at 200C, :i) Longitudinal Direction - 4.5 Kgf/mm2 minimum.
65% Relative Humidity ii) Transverse Direction - 1.5 Kgf/mm2 minimum.
c) Elongation at 200C, i) Longitudinal Direction - 2% min.
65% Relative Humidity ii) Transverse Direction - 3% min.
d) Ash content - Less than 1%
e) Moisture content in the supplied condition: 5% to 7%.
f) Die-electric breakdown strength voltage :- 7 KV/mm (min).
g). PH value (water extracting method):- 7 to 9.5
h) The loss of mechanical strength lengthwise must not exceed 2% after heating at 120oC for 10(ten) hours.
![]()
![]()
Welcome Xuchang ChengRui Electrical Insulation Material Co., Ltd
If any question, pls contact our sales
Our main products are as follows:
Film Products: 6020/6021 Polyester film, 6051 polymide film
Flexible composite insulation paper: 6630 DMD insulation paper, 6641-F DMD, 6640NMN, 6650NHN, 6520/6521 insulation paper
Insulation binding tape: Alkali-free fiberglass tape, 2840 epoxy resin impregating binding tape, mica tape, cotton tape, shirinkable binding tape,
Insulation Sleeving: 2715 PVC fiberglass sleeving, 2751 silicone fiberglass sleeving, 2753silicone resin fiberglass sleeving, 2740 acrylic fiberglass sleeving.
Impregnating fiber products: 2432alkyd Fiberglass varnish cloth tape, 2310 oil varnish cloth, 2450, 2210
Electrical insulation paper: Insulation paperboard, Diamond Dotted paper, presspaper, crepe paper, cable paper
Laminated sheets: 3021 phenolic paper sheet, 3025phenolic cotton cloth sheet, 3240epoxy fiberglass sheet, 3841 epoxy rod, 3722-1 cloth bar
The products are widely used for slot insulation, interturn insulation, layer insulation and liner insulation of the large and small motor. Some are for binding insulation of transformer, impregnating material, electrical wire and other electrical insulation.
