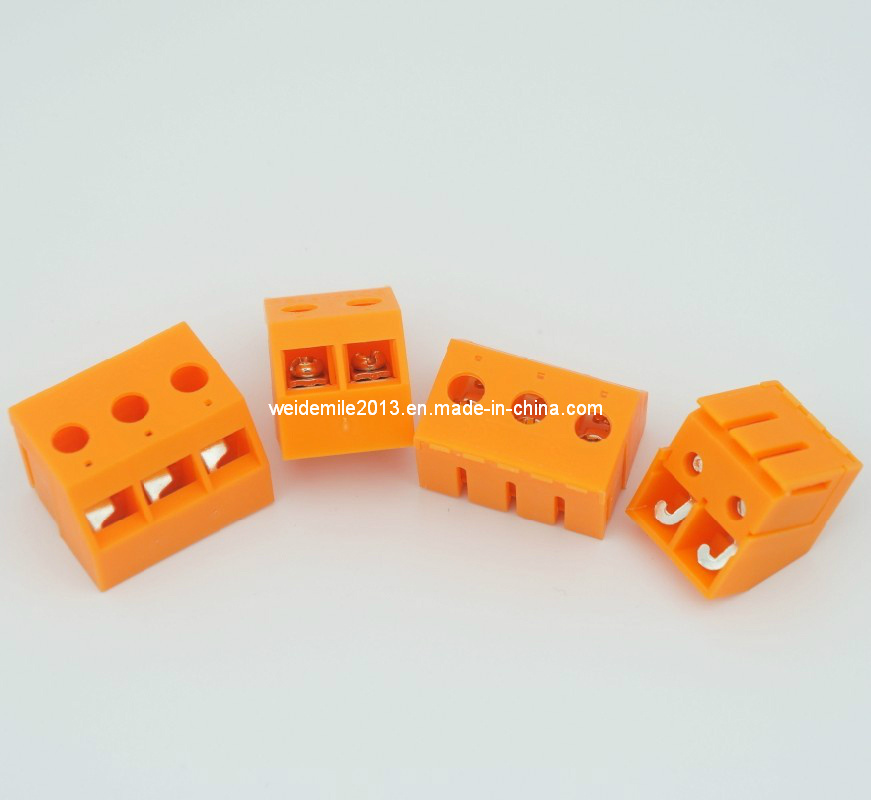

Transformer Terminal Block PS2.5mm
Material
Pitch: 2.50mm
Poles: 2P, 3P
Screw: M3.5, Zinc plated steel
Terminal: Tin-plated steel, or brass
Housing: PA66. UL94V-0
Electrical
Rated voltage: 750V
Rated current: 30A
Withstanding voltage: AC2000V/1Min
Wire range: 24-8AWG
Mechanical
Temperature range: -40deg to +105deg
Max soldering: +250deg for 5 sec.
Applied: CE, TUV, CQC and RoHS.
