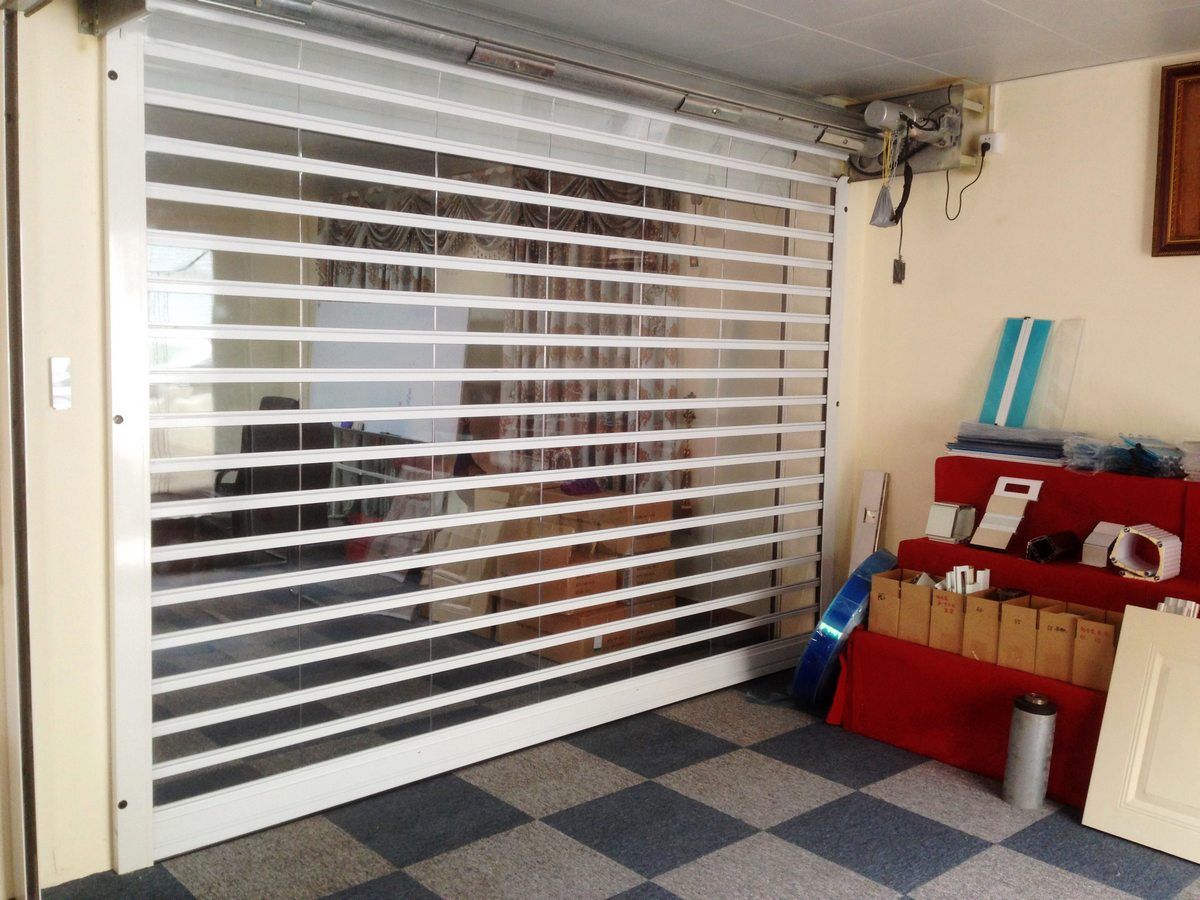

Transparent Polycarbonate Rolling Shutter Door
| Price: |
US $ 55-60/Square Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Square Meter |
| Pay Type: |
L/C,T/T,Western Union |
New arrival &HOT-SELLING.
Transparent polycarbonate rolling shutter door---- PC6PC6 is always custom built in our modern ISO9001-2000 certified factory, which combines the transparency and strength of polycarbonate with extruded aluminum joining slat.It is a popular design for applications which need secutiry as well as transparency. PC6 offers top security together with the ultimate excellent visibility. As clear as glass, as strong as steelIt's ideal solution for following Applications: - commercial shop
- showroom
- fashion shops
- jewellery shops
- airport
- banks
- club bars
- Others
HOFUL® polycarbonate rolling shutter has many benefits, including:- excellent visibility: 80-90% transparency
- safety and security: The Impact resistance performance of HOFUL® polycarbonate is 200 times stronger as ordinary glass, 30 times as organic glass.
- UV protection: Can effectively cut off 80% of the sun's ultraviolet
- Weather resistance:Still keep the physical indicatiors stability in the range of -40 to 120ºC,Outdoor service life of 20 years, indoor life to 30 years.
- energy saving
- Sound insulation: 3-4DB better than glass
- Heat insulation: 10 times better than ordinary glass
- Advertising effect: 24 hours / 7 days
- Environment-friendly: Comply with ROHS, the PC could be recycled.
- Fire retardant and self extinguishing: flame retardan Class I
- Warranty: 5 years !
Motorized operation polycarbonate rolling shutter door
Specifications
1, Item name: Curtain
Made of polycarbonate slat+aluminum joining slat
Detials of polycarbonate slat: high transparency unbreakable polycarbonate material, with size of 480 mm length and 100 mm width, 3.7 mm middle thickness
Details of aluminum tube: double extruded aluminum slats(one is big, the other is small), power coating surface finishing, in 4 mm thickness
2, Item name: Aluminum bottom rail
Made of extruded aluminum,106*20mm, height*depth, 1.4 thickness, standard color is white( powder coating finishing)
3, Item name: Aluminum Guide Rail
Made of heavy duty extruded aluminum "U"guide rail, 70*30*2.0 mm or 95*39*2.5 mm ,Width*Depth*thickness ,With brush strip to make the rolling shutter run more quietly
4, Switch button.
Switch button for operating rolling shutter, with stainless steel cover box
5, Endless chain
The rolling shutter could be opened by endless chain if power off.
6, Rolling shutter motor
Option 1: HOFUL brand side motor, CE certificate, 400KG, 600KG,800KG,1000KG,1300KG, 1500KG, 2000KG are available,
Rated voltage / Frequency could be 220V/50Hz, 380V/50Hz, 110V/60Hz
Option 2: DOOYA tubular motor, CE certificate, 60N, 80N, 120N, 140N, 230N, 300N,
Rated voltage / Frequency could be 230V/50Hz, 120V/60Hz
7, Shutter box (hood)
Made of galvanized steel or aluminum, it's optional.
8, Shaft (barrel)
Made of galvanized steel, 3 inches, 5 inches, 6 inches, 8 inches, 10 inches, it depends on the size of the rolling shutter.
9, Bearing
It's retractable, fixed by welding according to the width of the rolling shutter.
10, End plate
Made of heavy duty steel, fixed on both sides of the shaft.
11, connecting slat
Made of galvanized steel slat, connected with the top beam slat and shaft.
12, Top beam slat
Made of aluminum, used for connecting the curtain and the connecting slat
13, End clip
Made of plastic, fixed on both sides of the aluminum tube, to protect the curtain from lateral moving.
Manual operation polycarbonate rolling shutter door
Specifications
1, Item name: Curtain
Made of polycarbonate slat+aluminum joining slat
Detials of polycarbonate slat: high transparency unbreakable polycarbonate material, with size of 480 mm length and 100 mm width, 3.7 mm middle thickness
Details of aluminum tube: double extruded aluminum slats(one is big, the other is small), power coating surface finishing, in 4 mm thickness
2, Item name: Lock system
Lock system for manual operation rolling shutter, with lock bar extended to the guide rials on both sides
3, Item name: Aluminum bottom rail
Made of extruded aluminum,106*20mm, height*depth, 1.4 thickness, standard color is white( powder coating finishing)
4, Item name: Aluminum Guide Rail
Made of heavy duty extruded aluminum "U"guide rail, 70*30*2.0 mm or 95*39*2.5 mm ,Width*Depth*thickness, With brush strip to make the rolling shutter run more quietly
5, Manual system
Torsion spring for manual operation rolling shutter
6, Shutter box (hood)
Made of galvanized steel or aluminum, it's optional.
7, Shaft (barrel)
Made of galvanized steel, 2 inches
8, Manual system
Torsion spring for manual operation rolling shutter
9, End plate
Made of heavy duty steel, fixed on both sides of the shaft.
10, connecting slat
Made of galvanized steel slat, connected with the top beam slat and shaft.
11, Top beam slat
Made of aluminum, used for connecting the curtain and the connecting slat
12, End clip
Made of plastic, fixed on both sides of the aluminum tube, to protect the curtain from lateral moving.
Feel free to inquiry us for more details ! ![]()
![]()
| Prod Model: |
PC6 |
| Markets: |
Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Type: |
Rolling |
| Open Style: |
Rolling |
| Opening Type: |
With Remote Control |
| Special Function: |
Security |
| Certification: |
CE |
| Position: |
Commercial |
| Surface Finishing: |
Finished |
| Material: |
Polycarbonate Slat+ Aluminum Slat |
| Color: |
Transparent |
Who are we?
Hoful Roller Shutter Door Factory is a leading roller shutter door manufacturer in China. With more than 15 years experience, we are now professional in R&D, producing, installing, maintaining many kinds of roller shutters.
What we offer?
Owning more than 50 kinds of products, with the strength of
Transparent polycarbonate roller shutter door
Aluminum roller shutter door
Galvanized steel roller shutter door
Aluminum/ Stainless steel rolling grilles
Others
All products are strictly manufactured according to ISO9001 and some products are CE approved.
Why us?
We have a professional and experienced installation team. With their help, we constantly introduce domestic and foreign science and technology, and conduct continuous research and development of new products. Our products are Hot-selling in China, Middle East, Southeast Asia, Africa and other countries. Numbers of domestic and overseas big project cases had been successfully carried out by us, such as Newsstand of Asian Games, GuangZhou International Airport, Metro Station, Chinese Square, Bank of China, Dubai mall in U. A. E, City Centre in Bahrain, Infosys in India, Ranjana in Nepal and so on. With good quality, competitive price and excellent service, we always receive high praise by our customers.
"Beyond roller shutters" is our mission, we provide not only high quality products but also excellent service! Please don't hesitate to contact us with the products you are interested in.
