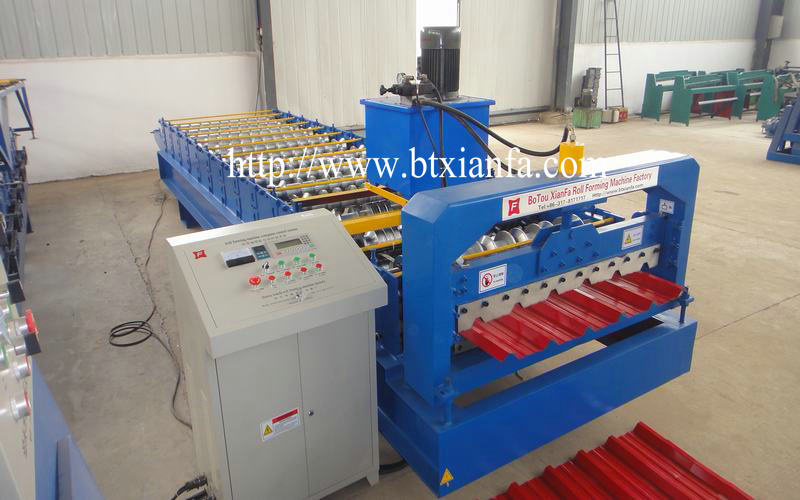

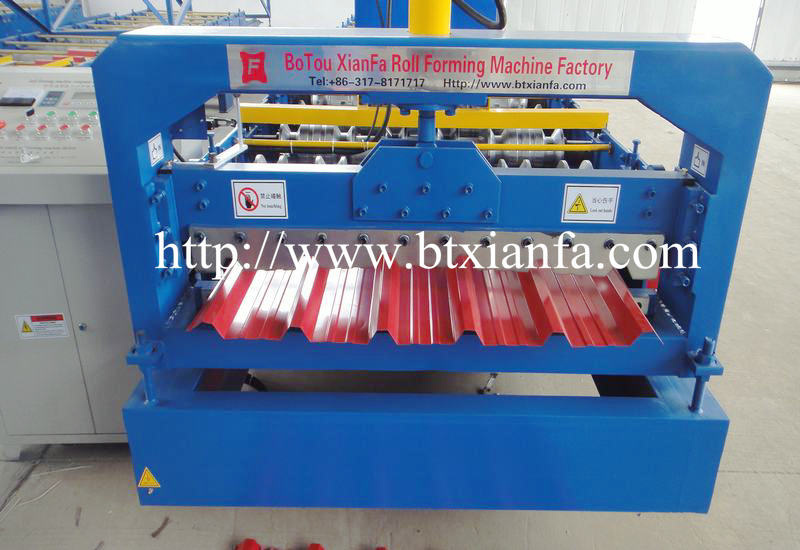

Trapezoidal Roof Sheet Roll Forming Machine
Price: |
Negotiable/Set |
Trade Terms: |
FOB,EXW,CIF |
Min Order: |
1set |
Pay Type: |
L/C,T/T |
Trapezoidal Roof Sheet Roll Forming MachineApplication
This type of sheet can be widely used in plant, house, storage and simple wall. It has advantage of pretty appearance, durable using and so on.Quick Detail1.Suitable to process: Color steel plate
2.Width of the plate:1220mm
3.Rollers: 13 rows
4.Dimensions: 6.6*1.55*1.51m
5.Power: 4+4kw
6.Rolling material: 45# steel(plated chrome on surface)
7.Thickness of the plate:0.3-0.6mm
8.Voltage: 380V 50Hz 3phases
9.Material of the cutting plate: Cr12
10.Hydraulic: 40#
11.Processing precision: Within 1.00mm
12.Control system: PLC controlTrapezoidal Roof Sheet Roll Forming Machine
Equipment Components: Man-Made Uncoiler-Roll Forming Machine
Computer Control System Hydraulic Control System-Cutting Trapezoidal Roof Sheet Roll Forming Machine (Rolling)

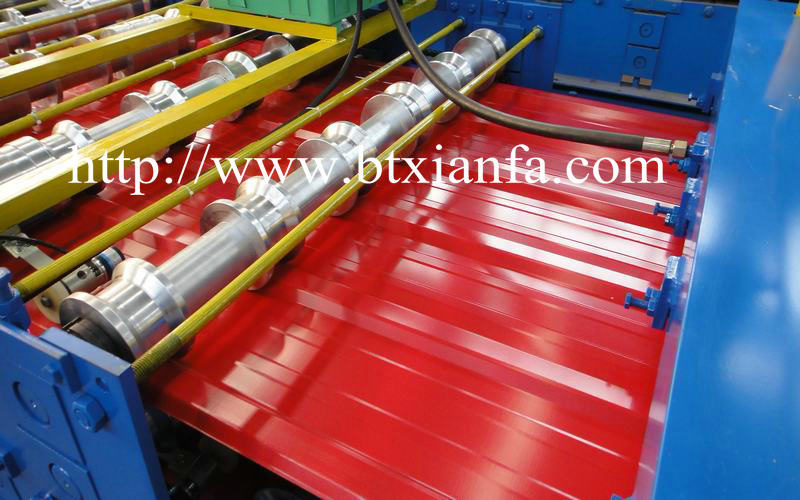

Material of rollers:45# steel,roller surfaces polishing, hard plating The polished surface and the heat treatment towards the molds also can keep the molding Plate surface smooth and not easy to be marked when it is being stamped.Trapezoidal Roof Sheet Roll Forming Machine (Production Sample)
1.We have a professional design team
2.Can also design and manufacture according to customer's requirement.
Competitive Advantage
1. sample customized
2. short production cycle
3. quality guarantee
4. high-effect, low consume
5. provide lifelong technical supportBotou Xianfa Roll Forming Machine Factory
Recently,our products have been exported to more than 70 countries
And regions over the world
And maintained good cooperative relations with customers
We do firmly believe in technological innovation and making
Every detail of the product perfect is our ambition ever
If you need our product, please contact me.
Looking forward to cooperate with you
No. |
Main Parameter of Roof Tile Roll Forming Machine |
1 |
Suitable to process |
Color steel plate |
2 |
Width of the plate |
1220 mm |
3 |
Rollers |
13 rows |
4 |
Dimensions |
6500*1550*1510mm |
5 |
Power |
4+4kw |
6 |
Rolling material |
45# steel(plated chrome on surface) |
6 |
Thickness of the plate |
0.3-0.6mm |
7 |
Productivity |
15-20m/min |
8 |
Diameter of the roller |
Φ70mm |
9 |
Voltage |
380V 50Hz 3phases |
10 |
Material of the cutting plate |
Cr12 |
11 |
Hydraulic |
40# |
12 |
Processing precision |
Within 1.00mm |
13 |
Control system |
PLC control |
Prod Model: |
XF30-196-980 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
Blue |
Type: |
Cutting Equipment |
Certification: |
CE |
Botou Xianfa Roll Forming Machine Factory
It is established in 1996, specializing in colored steel tile forming machinery. With the development of the economy, colored steel tile is widely used in constuction industory. Therefor customers need not only large quantity but also high quality. Our factory produced many now machinery such as CNCauto forming machine. Colored steel tile forming machine, colored steel tile equipment, colored steel tile machinery, Antique glazed tile line, roof load bearing line, compound board line, roll shutter door forming machine and dainpipe on the basis of nomal roll forming machine. At the same time we also produce Anode pole equipment of ESP, fast guardrail equipment and exc. Our products such as C&Ztype purline machine cutting systom, automatic punching have already reached the advanced level of the other suppiers. Our products cover all over the country and also are exported to Russia, Myanmar, Mongolia, Rumania, Iraq, south Korea, Canada, Mozambique Bahrain, Bolivia, Angola, Paraguay, Turkey, Sri Lanka, etc. Beautifu appearence, reasonable construction, pretty design of the tile won good reputation from colored tile products line and oversea customers.
