Product Specifications
Prod Model: |
XTH-3022 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Eyepiece: |
Wf5X, Wf15X, Wf20X, Wf25X, Wf30X |
Auxiliary Lens: |
0.5X, 0.75X, 1.5X, 2X |
Zoom Ratio: |
1: 6.5 |
Lens Zoom Range: |
1X-6.5X |
Microscope Eyepiece: |
Wf10X/23mm |
Total Magnification: |
10X-65X |
Field Of View: |
23mm-3.5mm |
Working Distance: |
103mm |
Interpupillary Distance: |
52mm-75mm |
Binocular Tube: |
Inclined 45o /60o |
Type: |
Stereomicroscope |
Mobility: |
Desktop |
Shape: |
Rectangular Prism |
Principle: |
Optics |
Magnification: |
10-65X |
Number Of Cylinder: |
Trinocular |
Product Description

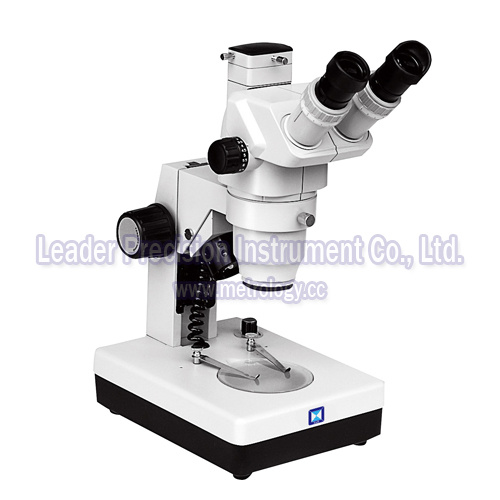

Trinocular Zoom Stereo Microscope (XTH-3022)Usage:This microscope is widely used in medical and health, electronics, precision machinery industry and so on, especially suitable to inspect the naked IC, LCD printing paste, PC
Feature:1) Zoom lens microscope
2) Inclined 45/60 degree observation
3) Erect image
4) Can connect CCD camera
Standard delivery:Main unit: 1PCS
Eyepiece patch: 2PCS
Anti-dust cover: 1PCS
Optional accessories:Eyepiece: WF5X, WF15X, WF20X, WF25X, WF30X
Auxiliary lens: 0.5X, 0.75X, 1.5X, 2X
Micro-image process software:
Digital Camera:
SpecificationTechnical data |
Zoom ratio | 1: 6.5 |
Lens zoom range | 1X-6.5X |
Eyepiece | WF10X/23mm |
Total magnification | 10X-65X |
Field of view | ¢ 23mm-¢ 3.5mm |
Working distance | 103mm |
Interpupillary distance | 52mm-75mm |
Binocular tube | Inclined 45º /60º |
Diopter adjustment | ± 5 diopter |
trinocular body rotation | 360º |
Power supply | 110V/60HZ or 220V/50HZ |
Top halogen lamp | 6V 15W Adjustable brightness |
Bottom fluorescent lamp | 5W |
Eyepiece | WF10X | WF15X | WF20X | WF25X |
|
Auxiliary lens | Magnification | Field of view | Magnification | Field of view | Magnification | Field of view | Magnification | Field of view | Working distance(mm) |
0.5X | 5X-32.5X | ¢ 46-¢ 7.4 | 7.5X-48.8X | ¢ 32-¢ 5 | 10X-65X | ¢ 26-¢ 4 | 12.5X-81.25X | ¢ 24-¢ 3.6 | 163 |
0.75X | 7.5X- 48.8X | ¢ 30.7-¢ 4.7 | 11.3X-73.1X | ¢ 21.3-¢ 3.3 | 15X-97.5 | ¢ 7.3-¢ 2.7 | 18.8X-121.9X | ¢ 16-¢ 2.5 | 117 |
1X | 10X-65X | ¢ 23-¢ 3.5 | 15X-97.5X | ¢ 16-¢ 2.5 | 20X-130X | ¢ 13-¢ 2 | 25X-162.5X | ¢ 12-¢ 1.8 | 100 |
1.5X | 15X-97.5X | ¢ 15.3-¢ 2.4 | 22.5X-146X | ¢ 10.7-¢ 1.6 | 30X-195X | ¢ 8.7-¢ 1.3 | 37.5X-243.8X | ¢ 8-¢ 1.2 | 45 |
2X | 20X-130X | ¢ 11.5-¢ 1.8 | 30X-195X | ¢ 8-¢ 1.2 | 40X-260X | ¢ 6.5-¢ 1 | 50X-325X | ¢ 6-¢ 0.9 | 40 |
