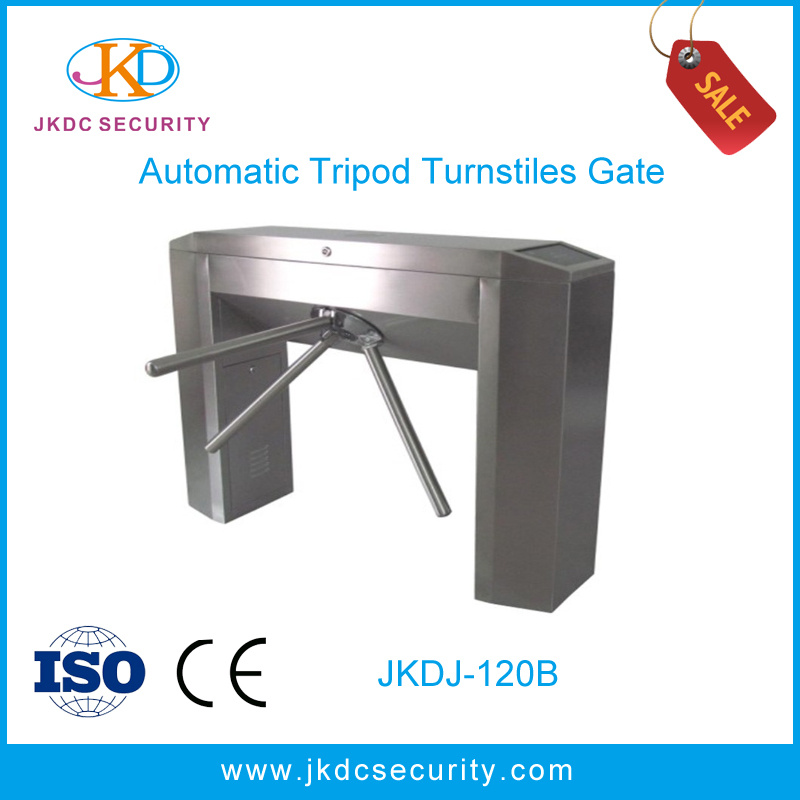

Tripod turnstile with access control software
Features and functions:
1. Rainproof housing, #304 stainless steel.
2. CNC stamping and laser drilling, presenting a novel and elegant appearance.
3. Innovative and unique mounting surface ensures simple and convenient installation for system integrators.
4. Direction can be set as single-direction or bi-direction.
5. Direction indicator.
6. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed)
7. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
8. Arms auto drop when power off, complying with fire safety requirements.
9. The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.
10. Dual-bearing device, keeping the gate in balance when there is external force.
Item | JKDJ-120C |
| Voltage | AC 220V/110V± 10% |
| Frequency | 50/60Hz |
| Current | 3A |
| Control circuit: | DC24V |
| Power consumption | 40W |
| Working temperature | -20° C~60° C |
| Working humidity | 0~95%RH |
| Protection grade | IP44 |
| Arm length | 480mm |
| Arm diameter | 40mm |
JKDC SECURITY CO LIMITED is a technology company providing innovative design, engineering and manufacturing of Access Control Systems, Turnstiles integrated with applicable software.
Founded in 2002, JKDC SECURITY CO LIMITED bases in Shenzhen, China. We focus on the development of the Access Control System and manufacture of Turnstiles suitable for different industrial factories, administrative buildings, banks, sport and entertainment venues, retail outlets, airports, railway terminals, construction sites etc.
We offer different types of cost effective turnstiles of high quality, i. e. Tripod Turnstile, Swing Turnstile, Bar Turnstile, Full Height Turnstiles, Wheel Chair Lane Gate and Barrier Gate. A wide range of turnstiles with customized design and controls are available for customers to make an optimal choice when equipping checkpoints.
We always maintain a professional team of expertise and high calibre to provide complete solution for Access Security Control and gain recognition and reputation worldwide. Since our company restructure in 2007, we have extended our export business worldwide to Malaysia, Thailand, Vietnam, Russia, Spain, Chile, Cube and USA.
