Product Specifications
| Prod Model: |
TR8000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Total Magnification Times: |
100 to 650 Times |
| Adjustment Range Of Eyes Distance: |
55 to 75 Mm |
| Monitor: |
19 Inch |
| Type: |
Digital Imaging System |
| Classification: |
Biological Diagnostics |
Product Description

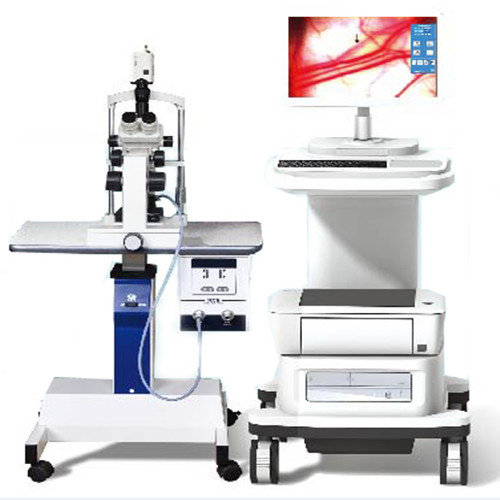

Microcirculation Analyzer
TR8000 Series Microcirculation Analyzer is a microscopic analysis and processing system which uses the international advanced optical continuous adjustment technology of magnifying power, and combines the computer imaging processing technology, CCD Digital imaging technology and optical microscopic technology. With wide field of vision and large depth of field, it is more helpful to observe the tiny variation of microcirculation. You can see the dynamic microcirculation image through the monitor directly, and you can acquisition the image of capillary, record dynamic video of capillary blood flow. You can measure and analyze the shape, fluid state and the capillary ansa's periphery. You can calculate and analyze the microcirculation, and print beautiful analysis report including images. It has specialized case management system, which is convenient to save, query, retrieve, print, backup, do statistic, etc. It is the latest microcirculation tester.
It is widely used to observe microcirculation in medical college, clinical hospital, medicine test center, and sub-health field. It can observe human's microcirculation by nail fold, bulbar conjunctive, tongue or toe, and it can also observe animal's microcirculation by intestine membrane or internal organs. It can observe the variation of capillary and fluid state, and test the variation degree of microcirculation. It is widely use to observe the microcirculation state for kinds of diseases, such as hypertension, apoplexy, diabetes, rheumatoid arthritis, and provide suggestion for clinical medicine and cure. Meanwhile, It is also used on the testing of sub-health conditions, and discover the variation of microcirculation early, then prevent diseases and improve health conditions.
Product Characteristics
Use the international most advanced optical continuous adjustment technology of magnifying power, continuous adjustment with the same axle and no grade
High magnifying power, large depth of field, wide field of vision, super resolution
Latest microscopic analysis and processing system, combines advanced computer imaging processing technology, CCD Digital imaging technology and optical microscopic technology
Dynamic video and image can be showed by monitor, do not need to see it by eyepiece
Latest high luminance circling LED light source system, long life, good color temperature, temperature rising is low, especially suitable for the observation of microcirculation
The microscope lens can be rotated to multi-direction, up and down, front and back, left and right
Adopt the Olympus microscope accessories
It is widely used to observe human's microcirculation by nail fold, bulbar conjunctive in medical college, clinical, medicine test center, and health care field, and it can also observe animal's microcirculation by intestine membrane or internal organs
Technical Parameters
Ratio of object lens magnification change:1:6.5
Magnification range of object lens:2 to 13 times continuous adjustment of magnifying power
Total magnification times: 100 to 650 times
Working distance of object lens: 4 cm
The shining angle of the optic fiber can be adjusted freely, till it reaches the best angle
Hand wheel for focus adjustment, can adjust it tightly or loosely
Eyepiece: 10 times
Adjustment range of eyes distance: 55 to 75 mm
Original CCD Camera which is made in Japan, high resolution, more than 540 lines
Hand piece: tilt 45°, can rotate 360°. Visual degree adjustment:±5°
Our company has specialized medical electronics research and development team, has rich experience in medical equipment research and development production for many years, mainly engaged in medical microscopic photoelectric instrument, diagnosis and treatment of department of gynaecology instruments, medical image processing software development production and sales. Has TR3000 series medical image workstation, TR5000 series infrared mammary gland tester, TR6000 series digital electronic colposcope, TR7000 series ozone gynecologic therapeutic apparatus. TR8000 microcirculation microscopic tester series five series of products development and production and sales.
Company's products strictly comply with international quality management system standards and medical equipment production quality management norms, set up perfect medical device quality management system, enterprise has passed the "ISO9001 quality management system certification" and "hl-tech corporation medical devices quality management system certification",: Medical instrument GB9706.1 product safety certification ", medical apparatus and instruments YY0324 products qualified certification.
Company with excellent product quality and perfect after-sales service, and become the foundation of primary health care in China and the China council for the promotion of economic development in old revolutionary medical instrument is the only designated supplier of department of gynaecology.
Company uphold: "integrity, innovation, sincere, beyond the" corporate philosophy, and constantly blaze new trails, strive for to leading design concept, perfect product quality, to provide customers with perfect service, create the biggest value for customers, struggle for the cause of human health life.
Along with the development of technology, we will try our best to improve the technology as well as the quality of products. We also look forward to cooperating with new clients and friends from all over the world.
