| Supplier: | Shenzhen UPSEN Electric Co., Ltd. |
|---|---|
| Price: | US $ 50-1000/Piece |
| Min Order: | 5/Piece |
| Quantity:: | |
| Trade Terms: | FOB,CFR,CIF |
|
|

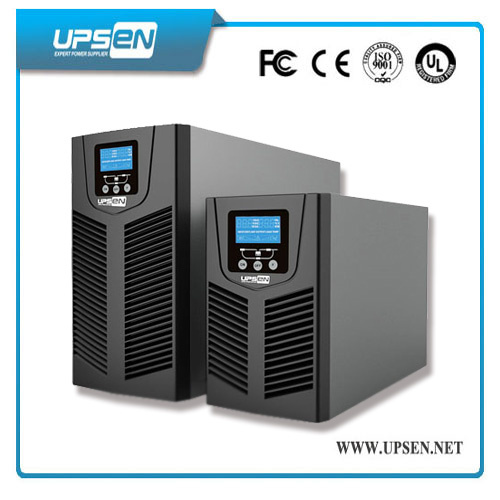

| Prod Model: | Bright Star Series 1-3Kva |
|---|---|
| Markets: | North America,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: | Black or White |
| Phase: | Single Phase |
| Type: | On-line |
| Protection: | Short Circuit |
Model | B1KT/G1KR | B2KT/G2KR | B3KT/G3KR | |||
| Rating | 1KVA/800W | 2KVA/1600W | 3KVA/2400W | |||
| Main input | Input system | Single phase & earth ground | ||||
| Voltage range | (90±5)VAC~ (300±5)VAC | |||||
| Power factor | ≥0.99 | |||||
| Voltage range of bypass | (80±5)VAC~ (286±5)VAC (default: 80VAC~264VAC Could be adjusted by software) | |||||
| PV input | Voltage range | 24VDC~150VDC | 48VDC~150VDC | 72VDC~150VDC | ||
| Output | Output system | Single phase & earth ground | ||||
| Rated voltage | 220VAC | |||||
| Power factor | 0.8 | |||||
| Voltage precision | ±2% | |||||
| Output frequency | Normal mode | 1.The output frequency synchronizes with the input frequency when the input frequency is in the range of 46 Hz~ 54 Hz | ||||
| 2.The output frequency is 50Hz when the input frequency is not in the range of 46 Hz~ 54 Hz | ||||||
| 3.Can be set as 60Hz | ||||||
| Battery mode | ||||||
| Inverter overload capacity (Utility power, 25 Centi Degree) | 105%±5% | |||||
| 125%±5%< Load <150%±5% 25s transfer to bypass | ||||||
| Load > 150%±5%, 300ms transfer to bypass | ||||||
| Transfer time | 0ms (Normal mode←→Battery mode) | |||||
| <4ms (Normal mode←→Bypass mode) | ||||||
| Crest factor | 3:01 | |||||
| Battery | Batteries voltage | 24VDC | 48VDC | 72VDC | ||
| AC charger | 2A | 2A | 2A | |||
| MPPT charger | 50A | 50A | 33A | |||
