Qingdao Powtech Electronics Co., Ltd. >> True Sine Wave Line Interactive UPS Power Supply (500VA~10kVA)

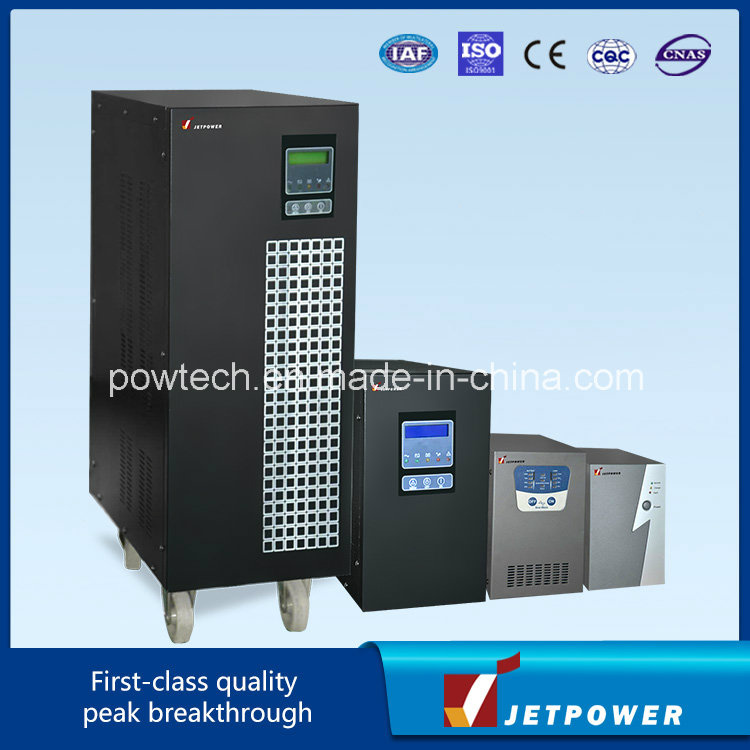

True Sine Wave Line Interactive UPS Power Supply (500VA~10kVA)

Name: True Sine Wave Line Interactive UPS Power Supply (500VA~10kVA)
Brand: china-manufacturer-directory.com
SKU: 663593432
Availability: InStock
Rating: 4.5 (120 reviews)

Supplier:	Qingdao Powtech Electronics Co., Ltd.
Price:	US $ 48-820/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	NT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Waveform:	Pure Sine Wave
Transfer Time:	2~4ms
Phase:	Single Phase
Type:	Line Interactive
Protection:	Overvoltage
Brand:	Jetpower

Product Description

Main Features:

1. Provide Line-Interactive design and true sine wave out put
3. Equipped with Boost and Buck AVR to stabilize input voltage
4. User configurable input voltage range and output voltage
5. DC start function enables UPS to be started up without AC power supplied
6. Large built-in charger with power factor corrected
7. Enable to extend runtime with scalable external battery pack
8. Fully protection for overload, short-circuit and over temperature
9. RS232 & dry contact signal for power management software
10. SNMP card slot is available for 2KVA above

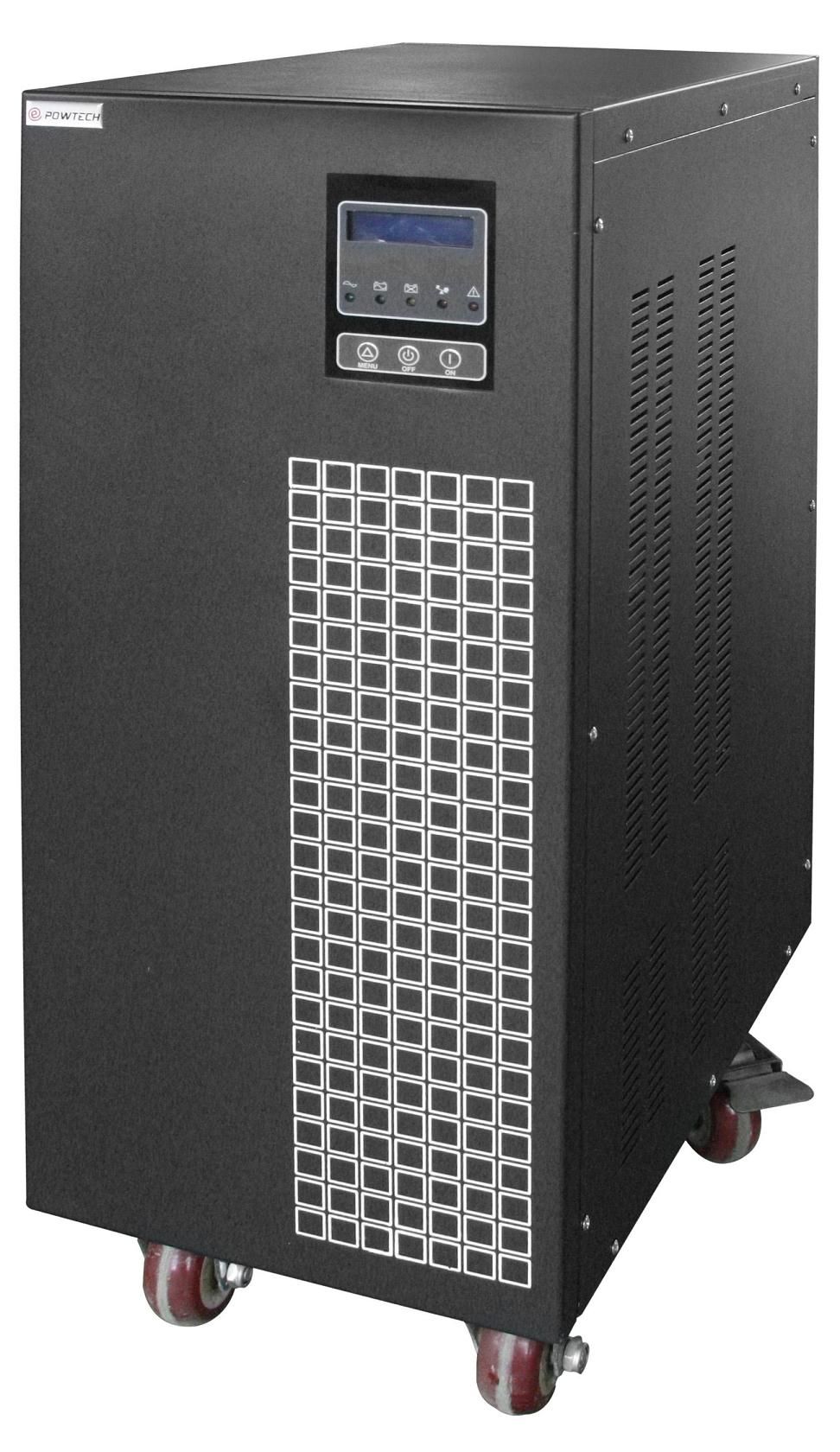

Front panel:

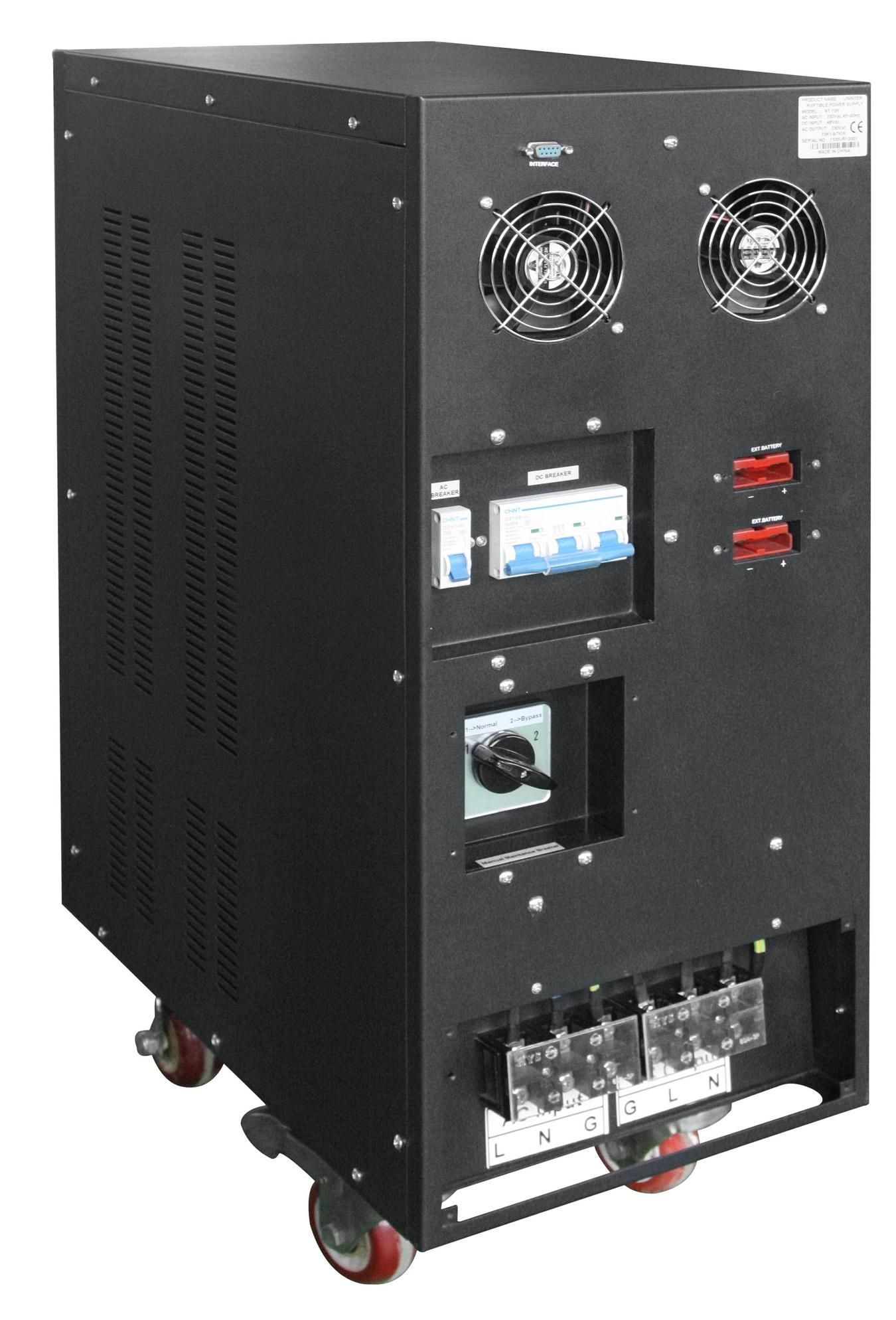

Backe panel:

Model Name		NT-1K	NT-1.4K	NT-2K	NT-3K	NT-4K	NT-5K	NT-6K	NT-8K	NT-10K
Capacity (VA / Watt)		1KVA / 700W	1.4KVA / 980W	2KVA / 1400W	3KVA / 2100W	4KVA / 2800W	5KVA / 3500W	6KVA / 4200KW	8KVA / 5.6KW	10KVA/7KW
Overview	Power Factor	0.7
	Surge Protection Only (VA)	No
	Outlook	Tower or Rack Mount (2U)		Tower or Rack (3U)		Tower or Rack (3U)			Tower
	Design Type	Line Interactive
	Waveform	True Sine wave
	AVR Function	Boost, Buck
	AVR Active LED Indicator	Boost, Buck
Input	Nominal Voltage	115/230Vac				230Vac
	Voltage Range	92~138V/184~276V (±20%) 86~144V/173~288V (±25%)-Defaul t 80~150V/160~300V (±30%)				184~276V (±20%) 1 73~288V (±25%)-Default 160~300V (±30%)
	Frequency Range	(50/60Hz)±5% Auto sensing
	Socket Type	Power Cord+C.B->115V Socket+Fuse Holder->230V				Terminal block +breaker
Output	Nominal Voltage	115/230Vac				230Vac
	Voltage Range (AC Mode)	106~121V/212~243V (+10~ -15%) 100~126V/200~253V(+10~ -15%) 93~132V/196~264V (+10~ -15%)				212~243V (+10~ -15%) 200~253V (+10~ -15%) 196~264V(+10~ -15%)
	Voltage Range (Batt. Mode)	(110/115/120/220/230/240V)±3%@ Resistive Load				(220/230/240V)±3%@ Resistive Load
	Frequency Range	(50/60Hz)±0.5%
	Socket Q'ty (Backup+Surge)	(NEMA/IEC)*6pcs,		(NEMA/IEC)*8pcs		IEC C14*4pcs + terminal block			IEC C14*8pcs + terminal block
Overload	Overload Protection (AC Mode)	Alarm (Fuse or C.B Protection)
	Overload Protection (Batt Mode)	110~140%->20Sec, >140%->5Sec.
Battery	Back-up (Half Load)	STD->10~25min/STD+Batt->0.5~2hrs Long Backup->2~8hr								>10~25min
	Volatge	24VDC		48VDC
	Quantity	12V/7AH * 2	12V/9AH * 2	12V9AH * 4	12V12AH * 4	12V12AH * 8			12V12AH * 12
	Cold Start (DC Start)	Yes
	Replacement	Hot Swap
	Charger Current (STD) Internal	1.1K~1.4K->1.5A max.		2200~3000->1.5 max.		3A max.			4A max.
	Charger Current (Large) External	1000L->10A max.		2200L~3000L->15A max.		25A max.				N/C.
	Charger Over Protection	Yes
	Charging When UPS off	Yes
	Green Power Mode Function	yes
	Microprocessor Control	Yes
Data Line	Network Protection	RJ45 (1 in/1 out)				N/A
Communication	Intelligent Interface	RS232+Contact Closure
	Software (UPSILON 2000)	Optional
	SNMP Card	Optional
Display	LED Status	Line/Batt Mode,Overload,Fault,Batt Replacement
	LCD (OPTIONAL)	O/P voltage ,Input voltage ,Load size. Model
Physicial	Dimension(DxWxH)	455x430x90mm		455x430x135mm		455x430x135mm			540340710mm
Weight	Net weight	16.2KG	18KG	26.8KG->2.2K	34.5KG->3K	28.5KG->4K ( UPS) 39KG->8BP1212	28.5KG->5K ( UPS) 39KG->8BP1212	28.5KG->6K ( UPS) 39KG->8BP1212	90KG->8K	102KG->10K
		11KG	13.5KG	20KG->2.2KL	22.1KG->3KL	30.5KG->4KL	36.8KG->5KL	36.8KG->6KL	65KG->8KL	65KG->10KL

Founded in 1994, POWTECH invested by Taiwan, is an independently owned international corporation dedicating to develop, produce & distribute JETPOWER brand power supplies and OPTELEC brand optical cables.

The first JETPOWER branded online high frequency UPS was developed in 1994. Driven by customer requirements, we have developed OFF LINE UPS, Line-interactive UPS, Industrial Online UPS, outdoor UPS, telecom inverter, power inverter and home inverter. Through a decade of great efforts, we have made our JETPOWER branded power supplies widely used in the fields of finance, telecom, electric power, petrochemistry, custom and military field etc, and have been honorably commented by clients. Besides, we also cooperate with many famous power supply companies by OED/ODM, and now our products have been sold worldwidely, including Europe, South America, Africa, Middle East, Asia ^.

While the fast development of power supply, we also expand our business to optical cable and accessories. In 2006, we have set up our own OPTELEC brand to develop, manufacture and distribute ADSS cable, OPGW cable, optical cable, Fusion Splicer, OTDR, Terminal tool kit, ADSS fittings, OPGW fittings, link fittings, wire mesh cable tray, preformed cable tray, cable trunking, cable ladders, STG modules, STG magazines and accessories. Till now, our OPTELEC brand optical cable and accessories have been used in more than 20 countries' telecom lines' construction and power transmission lines' construction.

Powtech has passed the ISO9001 international quality system certification and has established a complete quality system from material source, process, assembling to testing. All Powtech products have been approved by KEMA, SGS and CE (LVD/EMC) or by customer-appointed safety agencies.

Not only do we pride ourselves on competitive prices, super technology and quality products but also we have value-added technical support. We can dispatch our engineer to customer's site for site installation and training, or we can provide online service to solve any problem during installation & operation. With the belief that there is no customer too big or too small, every customer deserves better service. POWTECH people anticipate growing and prospering with you, embarking on a way of success.
