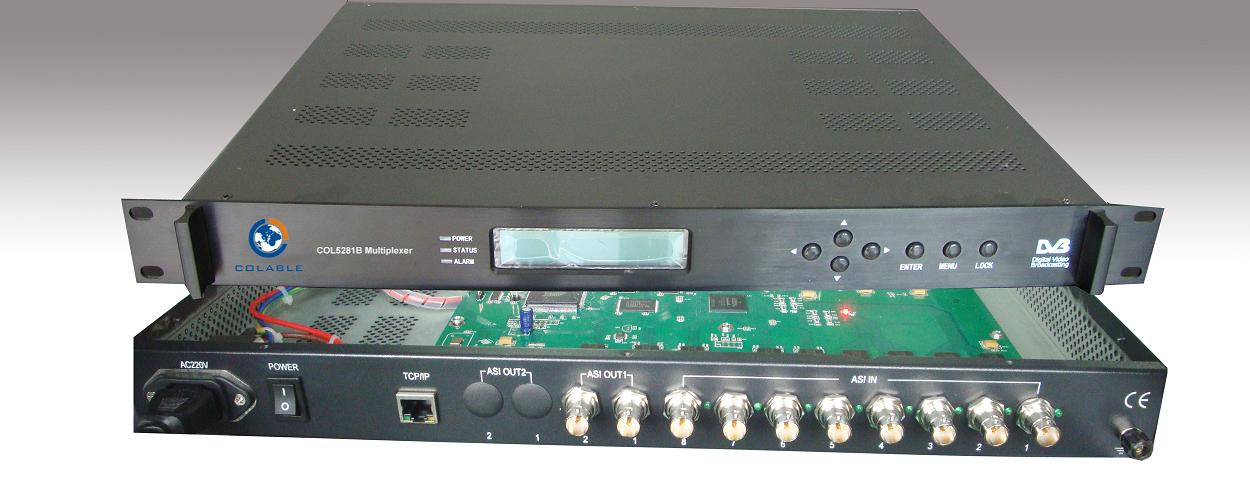

Product Specifications
| Prod Model: |
COL5281B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Features
1 Support 2~4 ca systems
2 Support the same density, compatible with multiple conditional access system.
3 Multiplex 8 inputs (asi) spts or mpts, multiplex and encrypt every single or multi programs.
4 Input date bit rate: 216mbps(max)/channel ethernet interface, it could carry out the parameters setup and supervision from remote via network management unit.
5 Empty packet automatic filling and output bit rate invariableness
6 Can edit and insert the nit and tdt tables 188 and 204 packet automatic identification
7 Output ts stream packet format is optional (188 packages and 204 packages)
8 With multiple output bit-rate options failure alarming
9 LCD display to carry out system status supervision and system parameters setup
10 Power off memory.
Specifications
Asi input interface
Input interface DVB asi interface
Connector: BNC
Impedance: 75W
Ts standard: ISO13818-1
Input valid bit rate: 214mbps max (per channel)
Ts packet format: 188/204 bytes (automatic identification)
Ts input format: Equality/ packet burst / inequality
Asi output interface
Standard: DVB
Connector: BNC
Impedance: 75W
Ts standard: ISO13818-1
Output valid bit rate: 2mbps~120mbps, tunable (1 kbps step)
Ts packet format: 188/204 bytes, optional (no RS encoding with 204 bytes)
Ts input format: Equality
Net interface
Keep status of power off
The unit will keep status with the power being cut off, in order to auto-reset when electrified again.
Power supply:
Voltage 90V~250V a. C
Frequency 50Hz ± 2%,
Power: 25W
Working environment
0_50° C for operation
-25_55° C for storage
10~75% for relative humidity
Radiation and safety
GB13837-92 and GB8898-88.
As the outstanding supplier of Digital broadcasting and TV network, Colable electronics is expert in transforming
Television system from analogue to digital, or building new digital system with lest cost and most effective way. What we can offer is total solution of DVB-C/S/T from headend to user end with the way of cable, MMDS, DTH. And our projects relate to different areas, such as city or village coverage, hotel, hospital, university, casino etc.
Colable develops well all the time because it owns one excellent technology and sales team. And the most important point is colable can always provide the most suitable solution to clients from traditional to advanced. Calable's products include: IRD, satellite receiver, MPEG2/4 /H. 264 encoder, TS multiplexer, standard alone scrambler, QAM/QPSK/COFDM modulator, CAS&SMS, EPG, DVB-C/S/T set top box, MMDS transmitter, antenna, EoC ( Ethernet over Coaxial ) Data Access System based on two-way HFC network, Epon. We also integrate NVOD, PPV and CATV Equipments: Optical transmitter, receiver, amplifier, tap, splitter, fiber, cable etc to the clients who require.
Colable's perfect products and service win good commend at home and abroad, we will redouble our efforts to meet the next brilliance.
