Product Specifications
| Prod Model: |
TSC-D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
Comply with IEC60947-4 |
| Theory: |
Thermal Relay |
| Size: |
Miniature |
| Usage: |
Household Appliances Relay, Communication Relay |
Product Description
Application

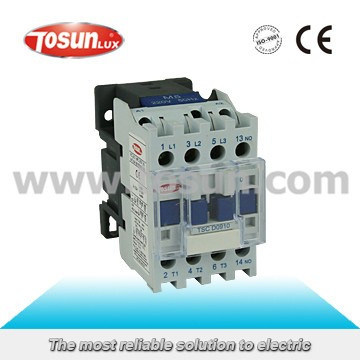

TSC-D series AC Contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auciliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The products comply with IEC60947-4.
Standard Control Circuit Voltage
| Volts | 24 | 42 | 48 | 110 | 220 | 230 | 240 | 380 | 400 | 415 | 440 | 500 | 600 |
| 50Hz | B5 | D5 | E5 | F5 | M5 | P5 | U5 | Q5 | V5 | N-5 | R5 | S5 | Y5 |
| 600Hz | B6 | D6 | E6 | F6 | M6 | | U6 | Q6 | - | - | R6 | - | - |
| 50/60Hz | B7 | D7 | E7 | F7 | M7 | P7 | U7 | Q7 | V7 | N-7 | R7 | - | - |
Specification
| Model | TSC-D09 | TSC-D12 | TSC-D18 | TSC-D25 | TSC-D32 |
| Rated working current(A) | AC3 | 9 | 12 | 18 | 25 | 32 |
| 4C4 | 3.5 | 5 | 7.7 | 8.5 | 12 |
| AC3 capacity of phase 3quirrel-cage motor AC3(KW) | 220/230V | 2.2 | 3 | 4 | 5.5 | 7.5 |
| 380/400V | 4 | 5.5 | 7.5 | 11 | 15 |
| 415V | 4 | 5.5 | 9 | 11 | 15 |
| 500V | 5.5 | 7.5 | 10 | 15 | 18.5 |
| 660/690V | 5.5 | 7.5 | 10 | 15 | 18.5 |
| Rated heat current(A) | 20 | 20 | 32 | 40 | 50 |
| Electrical life | AC3X10^4 | 100 | 100 | 100 | 100 | 80 |
| AC4X10^4 | 20 | 20 | 20 | 20 | 20 |
| Mechanical life X 10^4 | 1000 | 1000 | 1000 | 1000 | 800 |
| Number of the contacts | 3P+NO |
| 3P+NC |
| Model | TSC-D40 | TSC-D50 | TSC-D65 | TSC-D80 | TSC-D95 |
| Rated working current(A) | AC3 | 40 | 50 | 65 | 80 | 95 |
| 4C4 | 18.5 | 24 | 28 | 37 | 44 |
| AC3 capacity of phase 3quirrel-cage motor AC3(KW) | 220/230V | 11 | 15 | 18.5 | 22 | 25 |
| 380/400V | 18.5 | 22 | 30 | 37 | 45 |
| 415V | 22 | 25 | 37 | 45 | 45 |
| 500V | 22 | 30 | 37 | 55 | 55 |
| 660/690V | 30 | 33 | 37 | 45 | 55 |
| Rated heat current(A) | 60 | 80 | 80 | 125 | 125 |
| Electrical life | AC3X10^4 | 80 | 60 | 60 | 60 | 60 |
| AC4X10^4 | 15 | 15 | 15 | 10 | 10 |
| Mechanical life X 10^4 | 800 | 800 | 800 | 600 | 600 |
| Number of the contacts | 3P+NC+NO |
