Tse Series Granulator Machinery for PP PE Color Masterbatch

Product Specifications

Prod Model:	TSE-52
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Tse-65
Motor Power:	75kw, 90kw, 110kw
Diammter:	62.4mm
L/D:	32-60
Capacity:	200-400kg/H
Color:	Any Color as Required
Warranty:	1 Year
Screw:	Twin-Screw
Computerized:	Non-Computerized
Type:	Plastic Extruder
Automation:	Semi Automatic
Plastic Processed:	PP PE Pet PVC ABS POM Tpo TPE

Product Description

1..Characteristics:

1.The gearbox:

·       New-style project of parallel three-  axises driving makes the convey axis,convey chain,decelerate and the torque assignment get together,which keeo it compact,and the key bearings are imported.

· The select material of drive components is dainty. Including super intension alloy cementiteing steel,cementiting and quenching ,gear grinding technics ,strengthening of tooth face.So they can ensure high torque,high precision and low noise.

· Soakage and coerce lubrication integrate smoothly.When the hydraulic circuit is over pressed, it alarms

2.The feeding system

· Metering feeders are equipped with single screw,twin screw,hollow screw,forced-feeding,side feeding,liquid-adding system,etc

3.Screw

· The screw elements and then kneading blocks are designed accurately,by precise processed, agile combination,with interchangeability, which can fulfill efficient self-cleaning,transmission,compounding,pressure-forming.

· The screw material is made of high tool steel 38CrMoALA or W6Mo5Cr4V2 by special heat-treament.

4.The barrel

· Eurostyle rectangle barrel,reflux refrigeration is optimized and disposed,which makes temperature difference in C areas smaller

· According to the material and special techinics demands,the material of cylinder can use high quality nitrided steel,corrosion proof or antifriction with corresponding process

5.The heater

· Innovated design of heater tightened style insures high efficiency of heat transfer and high longervity of heater.

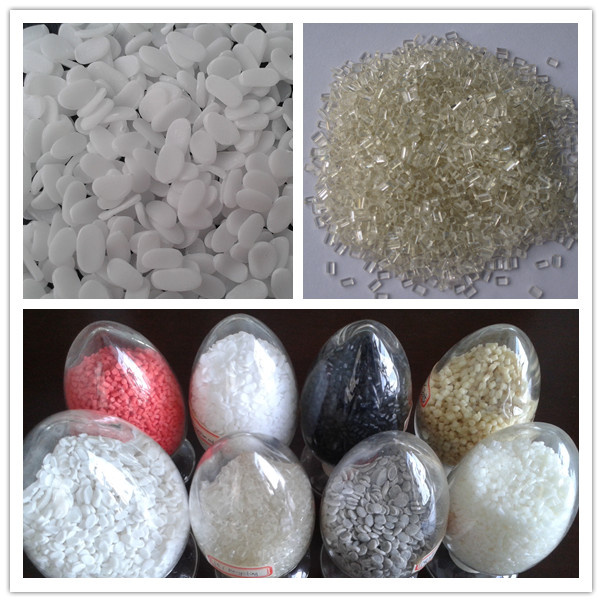

Representive Material:
Mixing nature-changing:PE,PP,PS+SBS,PA+EPDM,PP+NBR,EVA+Silicon rubber
PE,PA,PC,CPE+ABS,ABS+TPU,PBT+PET,PP+PE
Filling nature-changing:PE,PP,EVA,etc.+Calcium carbonate,talcum powder,titanic powder
PP,PA,ABS+ferrous powder,sulphuric powder,ceramic powder
Functional machine pellets:PP,PA,ABS,PBT,etc.+anti-burning agent and other auxiliary agents:combustion- supportong machine pellets
PE,PP,PS,etc+starch:de-composing machine pellets
PE+fog-preventing dipper,stabilizer:dual-prevention machine pellets
PE,EVA,ABS,etc+carbon black:black machine pellets
Colored machine pellets:PEMPP,ABS,AS PA,EVA ,PET+pigment and auxiliary
Intensified glass fibres and carbon fibres:PP,PBT,ABS,AS ,PA,PC,POM,PPS,PET,etc+long fibres,carbon fibres,crystals and so on
