Tsl1-63 RCCB Residual Current Circuit Breaker
Product Specifications
| Prod Model: |
TSL1-63 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Protection Degree: |
IP20 |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Certification: |
TUV |
| Operation: |
Manual Type |
| Arc-extinguishing Medium: |
Air |
| Speed: |
Normal Type Circuit Breaker |
| Function: |
Overload and Short-Circuit Protection |
| Structure: |
RCCB |
| Poles Number: |
2p, 4p |
| Installation: |
DIN Rail |
Product Description
ApplicationThe RCCB can cut off the fault circuit immediately on the occassion of shock hazard or earth leakage of trunk. Thus, it is suitable to avoid the shock hazard and fire caused by earth leakage.
The RCCB is mainly used in varieties of plants and enterprises, building construction 1 phase 240V and 3 phase 415V 50/60Hz. The products comply with IEC61008 and have been certified by CB, TUV and CE.
Specification | Number of Poles | 2P, 4P |
| Rated Current (A) | 16, 20, 25, 32, 40, 50, 63 |
| Breaking Capacity | 30, 100, 300 |
| Rated Residual Operating Current (lΔn)(mA) | <=0.5lΔn |
| Rated Residual Non- Operation Current (lΔno)(mA) | AC 240V |
| Rated Voltage | AC 415V |
| Rated Frequency | 50/60Hz |
| Residual Operating Current Scope | 0.5lΔn~lΔn |
| Residual Current Off-time | <=0.3S |
| Breaking Capacity | 6000A |
| Endurance | 4000 |
| Protection Degree | IP20 |

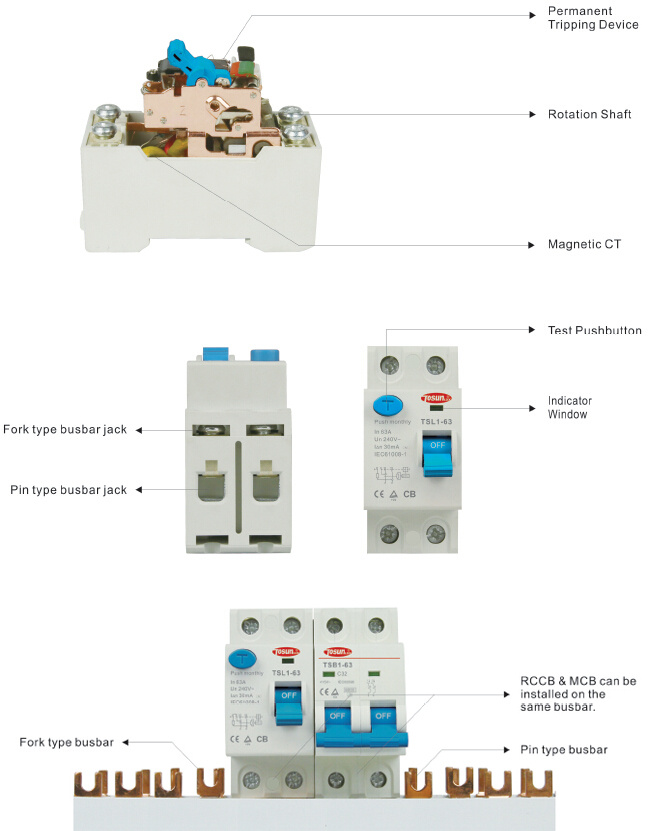

Features

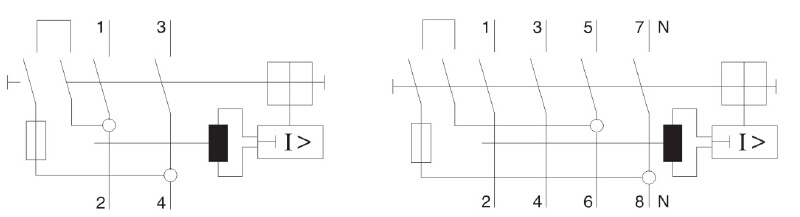

Operation Principle

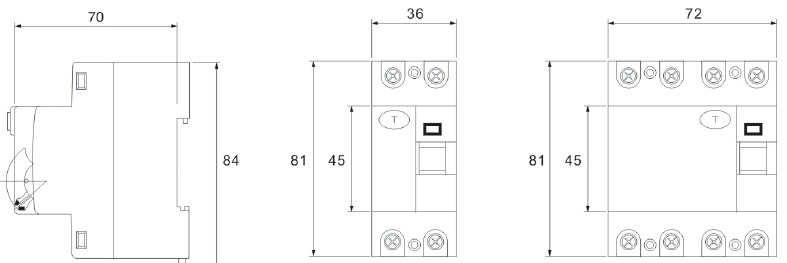

Overall and Mounting Dimensions(mm)
