Product Description

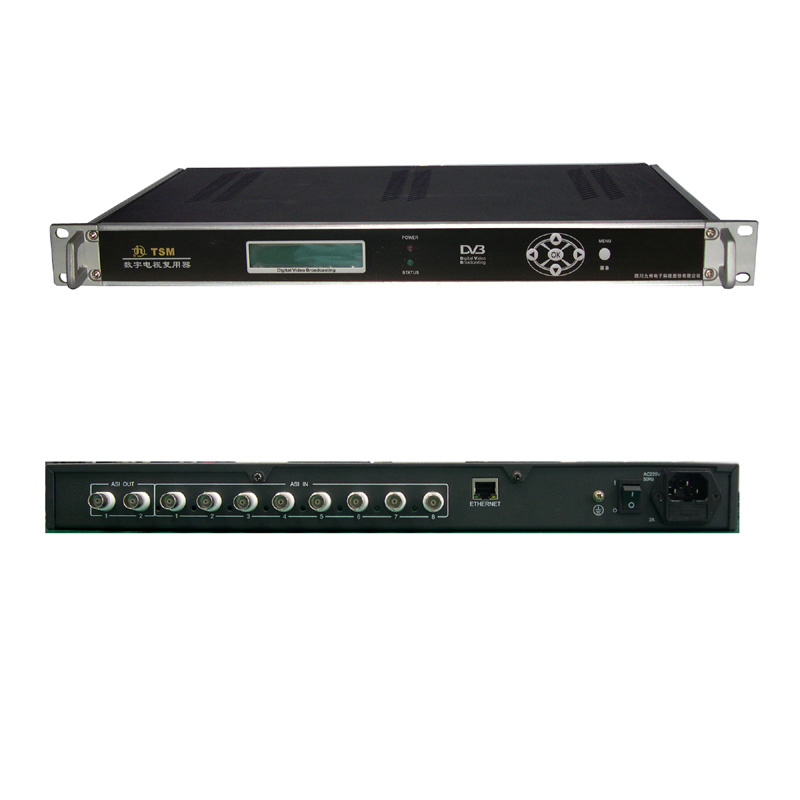

TSM-B digital TS multiplexer is a professional broadcast-level head end equipment. It process the multiple TS input based on group-exchange technology. It supports SPTS and MPTS input simultaneously. TSM-B supports 8 ASI inputs and double identical ASI outputs, multiplexing by PID or program...19''/1RU standard design is applied in system project. It also supports Jiuzhou NMS (local network management)
Feature:
GB/T 17975.1-2000( ISO/IEC 13818-1: 1996) and GY/Z 174-2001( ETSI EN 300 468)standard, cascading connection available.
8 ASI inputs, compatible with 188/204 format, max input code rate 270Mbps, max effective code rate216Mbps, anti-burst stream mode; Double identical ASI outputs, output code rate 0~108Mbps continuous adjustable, stepping 1Mbps.
Multiplexing by PID or program, no limit for program numbers
POD filter and re-mapping, no limit for PID multiplexing
Flexible PSI/SI loading, processing and regenerating. Automatically re-generate all PSI/SI. User can edit information in PSI/SI
Transparent channel setting available for PSI/SI input and user's private data
High accuracy PCR correction, no limit for PCR correction programs PCR jitter ≤ 50ns.
Jiuzhou NMS ( local network management ).
Massive integrated circuit design, high reliability, stability, performance and low power consumption
| Application: | |
| Various digital headend system | |
| | |
| Input: | DVB-ASI×8, 75Ω BNC |
| | |
| Multiplexing: | |
| PID filter and re-mapping, Transparent channel setting available | |
| PSI/SI PSI/SI loading, processing and regenerating, editable | |
| High accuracy PCR correction | |
| Multiplexing by PID or program | |
| | |
| Output: | DVB-ASI×2, 75ΩBNC |
| Ethernet: | 10/100M Ethernet+TCP/IP, RJ-45 |
| Others | Dimension: 44mm×482mm×360mm |
| Environment: 0 - 45 Degree(work)/ -20-80 Degree(storage) | |
| Power supply: 220VAC±10%, 50/60Hz, 25W | |
