Product Specifications
| Prod Model: |
TSM1-250N 3P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
up to AC 690V |
| Rated Current: |
12.5A-1600A |
| Structure: |
MCCB |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Poles Number: |
3 |
| Certification: |
TUV |
| Operation: |
Manual Type |
| Installation: |
Fixed |
| Arc-extinguishing Medium: |
Air |
| Speed: |
Normal Type Circuit Breaker |
| Function: |
Overload, Short-Circuit, Undervoltage |
Product Description
APPLICATION

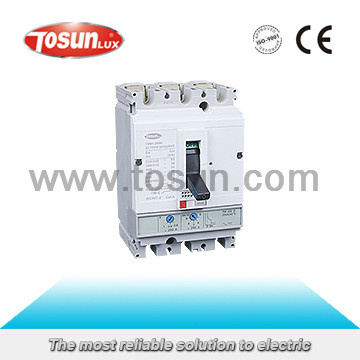

1. TSM1 Moulded Case Circuit Breaker is one of the most advanced type breakers in the world, which adopts international advanced design and manufacture technology.
2. Suitable for short circuit and overload protection for circuit of AC 690V 50/60Hz, rated current from 12.5A to 1600A.
3. Rated insulation voltage: 690V.
4. It can make and break the non-frequent circuit in the normal conditions.
5. It takes protect effect when squirrel-cage motors non-frequent start, breaking off working and protecting
overloads, short circuit and lacking voltage.
6. It complies with IEC60947-2.
SPECIFICATION
| Type | Rated Current (A) | Number of
Phase | Rated Insulating
Voltage (V) | Rated Ultimate Short
Circuit Breaking Capacity
lcs at380/415V (kA) | Rated Service Short
Circuit Breaking Capacity
lcs at380/415V (kA) | Operating Performance
(times) |
| ON | OFF |
| TSM1-100N | 12.5, 16, 20, 25, 32,
40, 50, 63, 80, 100 | 3, 4 | 750 | 25 | 25 | 1500 | 8500 |
| TSM1-100H | 70 | 70 |
| TSM1-100L | 150 | 150 |
| TSM1-160N | 16, 20, 25, 32, 40, 50,
63, 80, 100, 125, 160 | 36 | 36 | 1000 | 7000 |
| TSM1-160H | 70 | 70 |
| TSM1-160L | 150 | 150 |
| TSM1-250N | 160, 180, 200, 225,
250 | 36 | 36 | 1000 | 7000 |
| TSM1-250H | 70 | 70 |
| TSM1-250L | 150 | 150 |
| TSM1-400N | 315, 350, 400 | 45 | 45 | 1000 | 4000 |
| TSM1-400H | 70 | 70 |
| TSM1-400L | 150 | 150 |
| TSM1-630N | 400, 500, 630 | 45 | 45 | 1000 | 4000 |
| TSM1-630H | 70 | 70 |
| TSM1-630L | 150 | 150 |
| TSM1-1250N | 800, 1000, 1250 | | 50 | 37.5 | 1000 | 4000 |
| TSM1-1600N | 1000, 1250, 1600 | | 50 | 37.5 |
