Shenzhen City Scangle Technology Co., Ltd. >> Ttp 244plus Barcode Printer/Label Printers (TTP-244)

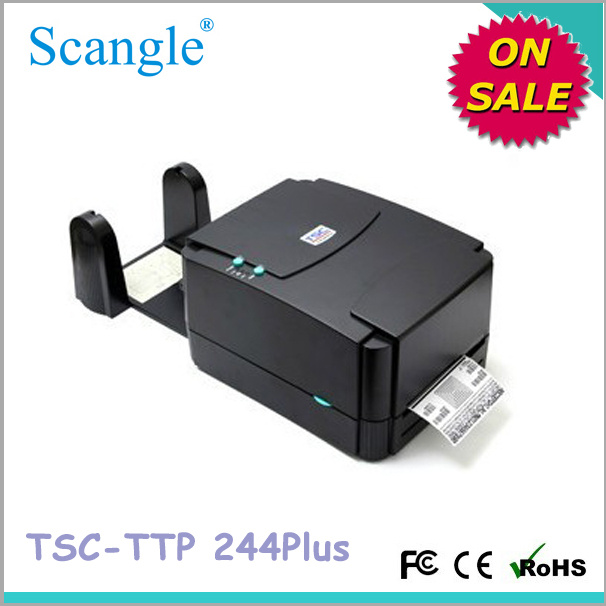

Ttp 244plus Barcode Printer/Label Printers (TTP-244)

Name: Ttp 244plus Barcode Printer/Label Printers (TTP-244)
Brand: china-manufacturer-directory.com
SKU: 670233712
Availability: InStock
Rating: 4.6 (68 reviews)

Supplier:	Shenzhen City Scangle Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	TTP-244
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	Barcode Printer
Size:	4"
Interface:	USB+Ur232
Color:	Black/Gray
Style:	Black and White
Interface Type:	USB
Usage:	Barcode Printer
Type:	Barcode Printer
Max. Paper Size:	4"

Product Description

Specification:
Model No.: TTP-244 Plus, bar code printer, barcode printer, The TTP-244 Plus barcode printer offers the following features:
*200 MHz 32-bit RISC processor with 8 MB DRAM, 2MB FLASH memory
*Internally Scalable True Type fonts
*TSPL-EZ firmware emulates Eltron and Zebra
Languages out of the box
*Dual-motor gear driven design
*300 meter ribbon supply on a 1" core (coated side out)
*4.3" OD internal media supply, optional external
Media unwinder supports 8" OD label rolls on 3" cores
*4 inches per second print speed
*USB 2.0 & RS-232C interfaces
*Free bundled labeling software and Windows drivers

Features
-200 MHz 32-bit RISC processor with 8 MB DRAM, 2MB FLASH memory
-Internally Scalable True Type fonts
-TSPL-EZ firmware emulates Eltron and Zebra languages out of the box
-Dual-motor gear driven design
-300 meter ribbon supply on a 1" core (coated side out)
-4.3" OD internal media supply, optional external media unwinder supports 8" OD label rolls on 3" cores
-4 inches per second print speed
-USB 2.0 & RS-232C interfaces
-Free bundled labeling software and Windows drivers
-One year of warranty.

Printer model	TTP-244 Plus
Resolution	203 dpi (8 dots/mm)
Print speed	1.5, 2, 3, 4 ips
Max. print width	104mm
Max. print length	2, 286mm
Enclosure	ABS plastic
Physical dimension	232 mm (W) x 288mm (D) x 156mm(H) 9.13" (W) x 11.34" (D) x 6.14" (H)
Ribbon capacity	300m(984 ft. ), 25.4mm(1" ) core, max. OD 67mm(2.64" )
Label roll capacity	Max. OD 110mm (4.33" ) byt 25.4mm (1" ) core
Processor	32-bit RISC CPU
Memory	2 MB FLASH memory 8 MB DRAM
Interface	RS-232C (max. 115, 200 bps)/ USB RS-232C (max. 115, 200 bps)/Centronics (factory option)
Power	External universal switching power supply Input: AC 100-240V Output: DC 24V 2.5A
Operation switch, button	One power switch Feed button and pause button
Sensors	Gap transmissive sensor Black mark reflective sensor Ribbon end sensor
Internal font	Eight alpha-numeric bitmap fonts
Codepage	Codepage 437 (English-US) Codepage 850 ( Latin 1) Codepage 852 (Latin 2) Codepage 860 (Portuguese) Codepage 863 (French Canadian) Codepage 865 (Nordic) Codepage 857 (Turkish) Codepage 950 (Traditional Chinese) Codepage 936 (Simplified Chinese) Codepage 932 (Japanese) Codepage 949 (Korean) Codepage 1250 (Latin 2) Codepage 1251 (Cyrillic) Codepage 1252 (Latin 1) Codepage 1253 (Greek) Codepage 1254 (Turkish) Codepage 1257 (Baltic) Codepage 1258 (Vietnam) ISO 8859-1: Latin-1 (Western European) ISO 8859-2: Latin-2 (Central European) ISO 8859-3: Latin-3 (South European) ISO 8859-4: Latin-4 (North European) ISO 8859-5: Cyrillic ISO 8859-7: Greek ISO 8859-9: Turkish ISO 8859-10: Nordic ISO 8859-15: Latin-9
Barcode	1D barcode Code 39, Code 93, Code 128UCC, Code 128 subset A, B, C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN AND UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China Post 2D barcode PDF-417, Maxicode, DataMatrix, QR code
Font & barcode rotation	0° , 90° , 180° , 270°
Command set	TSPL-EZ
Media type	Continuous, die-cut, fan-fold, tag, black mark, ticket
Media wound type	Outside wound
Media width	25.4 – 114 mm (1.0" - 4.49" )
Media thickness	0.06- 0.25mm (2.36 – 9.84 mil)
Media core diameter	25.4 -76.2 mm (1" - 3" )
Environment condition	Operation: 5º C- 40º C, 25-80% non-condensing Storage: -40º C-60º C, 10-90% non-condensing
Safety regulation	FCC Class A, CE Class A, C-Tick Class A, TUV/GS, CCC
Reliability	TPH: 1 million inches
