Product Specifications

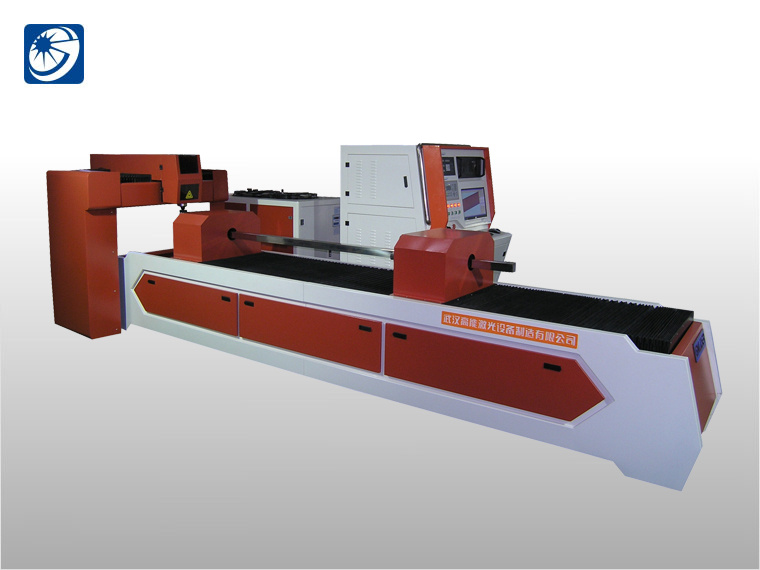

| Prod Model: |
GN-CT9000-850 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling Mode: |
Water Cooling |
| Delivery Time: |
One Month |
| Tube Cutting Length: |
3000mm |
| Tube Max Cutting Length: |
8mm |
Product Description
We can manufacture the product you want by using our machine to prove our laser cutting machine is your best choice.
Equipment Features and Technical Advantages
(1) Pipe end truncation and oblique section of pipe end;
Able to direct rotary cutting at the end of pipe, also can oblique section of pipe end.
(2) The diameter of intersecting line cutting;
Able to cut for holes of cylinder intersecting(line) in different directions and different diameters on the head of pipe, and does not require customers to drawing but software generated directly, meeting the requirement about eccentric /non-eccentric vertical intersection of main tube axis and auxiliary tube axis.
Suitable for cutting of auxiliary tube end of cylinder intersection line, meeting the requirement about vertical eccentric/non-eccentric intersection or oblique intersection of main tube axis and auxiliary tube axis.
( 3 )All intersecting of round tube and plane cutting, round tube and square tube cutting are achieved perfectly;
(4)Can cut a square hole and waist hole in tube;
(5)Arbitrary curve graph cut;
Support to processing arbitrary complex curves, not subject to restriction of graphics.
(6)Support 2D and 3D format cutting;
Currently on the market Only by using 3D UG drawing, support 3D graphics laser cutting system, easy operating.
(7)DOT line in tube;
Support high-speed DOT line on the surface of the tube, only marking but no cutting, with curve mark on pipe surface.
(8) Able to drill hole in tube;
Rotating laser drill hole in tube wall, can be dividing punch, the minimum diameter of hole is 0.3mm.
Applicable Materials
Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet and other metal pipes and tubes.
Applicable Industry
It is widely applied in fabrication industries of advertising trademark, metal structure, cabinets, metal processing, electrical cubicle switchboard, textile machinery, cereal processing machinery, kitchenware, lamps and lanterns, automobile, metal handicraft article, saw blade, electrical component, medical apparatus and instruments, aero-space, ironware, cutting and measuring tool, etc.
|
Model Type |
GN-CT3000-650 |
|
Laser Working Medium |
Nd+3:YAG |
|
Laser Wavelength |
1064 nm |
|
Maximum Output Power |
650W |
|
Optional power |
650W/850W |
|
Pulse wide |
0.3~20 ms |
|
Pulse Frequency |
1~300 Hz |
|
Laser Power Stability |
≤±3 % |
|
Tube processing area(length×tube diameter) |
3000mm×Φ20-240mm |
|
Maximum tube cutting thickness |
≤8mm |
|
Effective tube cutting diameter |
Φ20-240 |
|
Effective tube cutting length |
3000mm |
|
X-axis route |
300mm |
|
Y-axis route |
3000mm |
|
Z-axis route |
120mm |
|
U1-axis route |
Infinite rotate |
|
U2-axis route |
Infinite rotate |
|
Axial positioning accuracy |
≤ ± 15secs |
|
Repeat positioning accuracy |
≤ ± 2secs |
|
X\Y\Z single axial maximum positioning speed |
40 m/min |
|
U1-axis and U2-axis maximum positioning speed |
35rpm |
|
Cutting system |
GNLASER 3D tube processing system |
Wuhan GN Laser Equipment Manufacturing Co., Ltd. In the research development, production and marking of profession laser equipment. It has an integrative team of many hi-tech elites and experts in mechanism, electronic, industrial automatization and computer software filed. We keep forging ahead actively. We are pioneer and innovative-minded. We provide comprehensive laser application solution and the laser equipment for the domestic and foreign customers.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser cutting machine, YAG laser cutting machine, CO2 laser cutting and engraving machine, metal laser marking machine and so on. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. Gnlaser products are best-selling in China and other more than 68 foreign countries.
Sustaining the management concept, market-oriented, customer-centric, take quality as the core, take service as the guarantee, we adhere to the tenet "talent-oriented, science and technology lead, honesty and trustworthiness, innovation". In the high-speed development of laser application technology, as a sophisticated laser equipment manufacturer in the increasingly fierce industry competition, wuhan gnlaser equipment manufacturing Co., Ltd. is able to provide new and old customers with more advanced and cost-effective laser equipment.
Customer success is our success.
