Tungsten Carbide Disc Cutter with Maximium Od 380mm

Name: Tungsten Carbide Disc Cutter with Maximium Od 380mm
Brand: china-manufacturer-directory.com
SKU: 700061982
Availability: InStock
Rating: 4.9 (35 reviews)

Price:	US $ 5.5-250/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

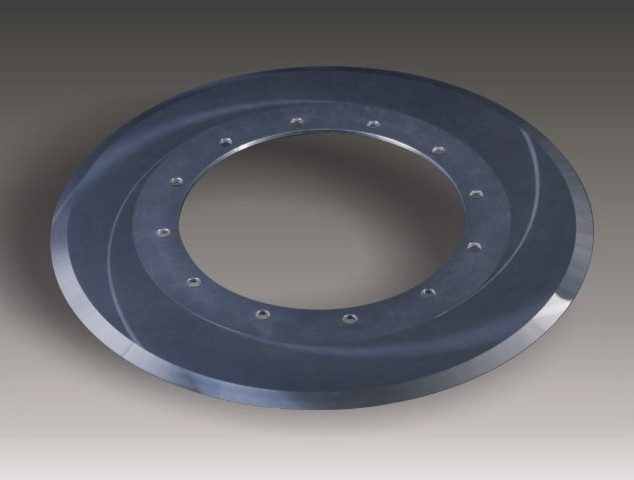

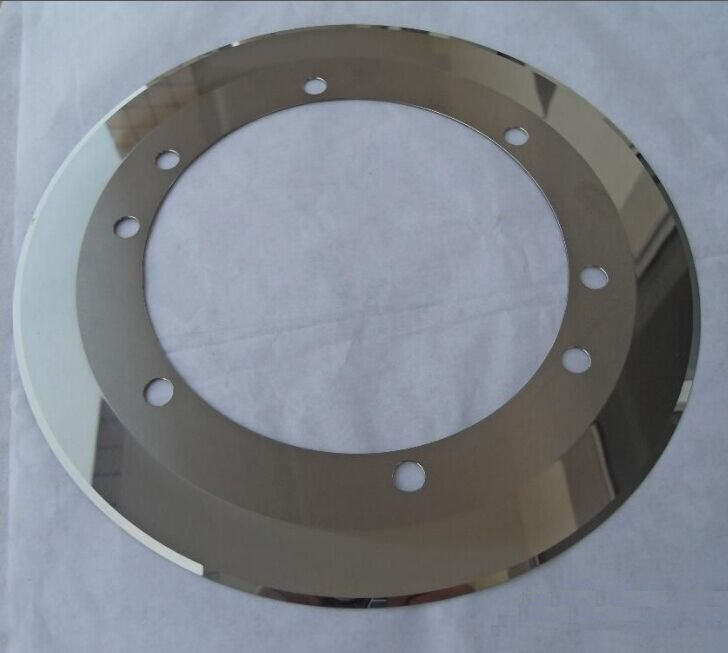

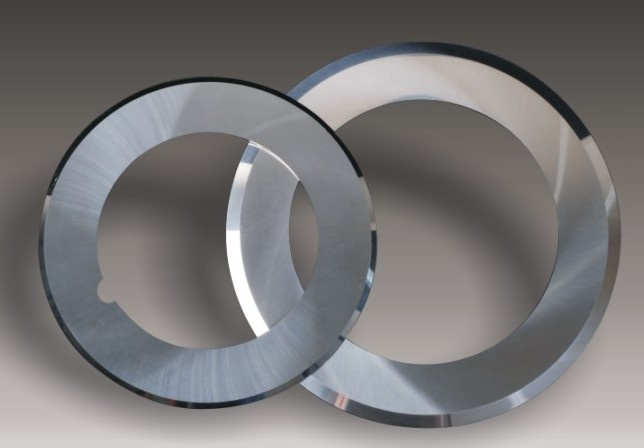

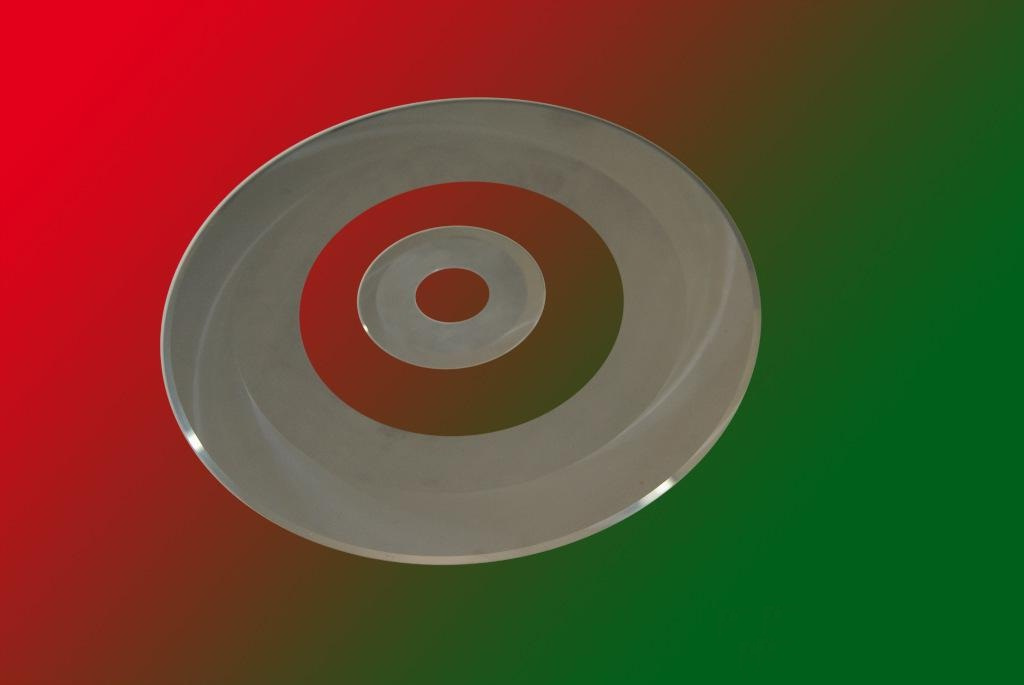

Tungsten Carbide Disc Cutter is made by fine or super fine grade size material with advanced sintering technology, which is excellent in hardness and wear resistance.
The cutting edges can be machined according to your own specification.

The purposes of Disc Cutters is used for rubbers, corrugated papers, stones, and non-ferrous metals.

Recommend Grades of Tungsten Carbide Disc Cutters are as follows:

Grade	Density	Hardness (HRA)	Bending Strength (/Mpa)	Performance and Application	Equivalent ISO Grade
YG3X	15.0~15.3	92	1320	Fine Grain Size, outstanding in hardness, which is used to high speed finishing of cast iron, non-ferrous alloy, and alloy hardened steel, and alloy steel.	K01
YG3	15.0~15.3	91	1200	Excellent in hardness, and suitable for finishing of cast iron, non-ferrous alloy, and plastic, rubber, etc.	K01
YG6X	14.6~15.0	91	1400	Fine grain size. Excellent in wear resistance.Be used to process ferrous steel (HB<200), glass, hard rubber, cardboard, marble, ceramic copper alloy etc.	K10
YG6	14.6~15.0	89.5	1450	Be used to process ferrous steel(HB<200),non-ferrous metal, wood, plastic, etc.	K20
YG8	14.5~14.9	89	1500	Rough and semi-finishing of cast iron, nonferrous metal, wood, plastic, etc.	K30
YG11C	14.0~14.4	86.5	2100	Grade for manufacturing nozzle, wear resistance parts, die insert, mining tool, measuring tool like gauge, micrometer etc	K40
YG15	13.9~14.2	87	2100	Grade for manufacturing nozzle, wear resistance parts, die insert, mining tool, measuring tool like gauge, micrometer etc	K40

Prod Model:	OD380
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Outside Diameter:	35~380mm
Type:	Cutter
Work Type:	Cut Off
Material:	Tungsten Carbide

We established the subsidiary corporation-Solid Metalworking LNC. Limited in 2012 in Guangzhou for export promotion. Solid Metalworking LNC. Limited is responsible for entertaining the foreign customers and arranging the export of Tungsten Carbide Tools.

Whatever your cemented carbide tools application calls for, we can accommodate you from our vast experience and extensive tools capability. We will be glad to provide you with the excellent quality and service.

We manufacture several types of precision cemented carbide tools as follows:

1. Carbide Inserts: Turning Inserts, Milling Inserts, Threading Inserts, and Scarfing Inserts.

2. Cutting Tools: Carbide Slitter Knives, Spade Drill, Brazed Tips, Carbide Burrs, Industrial Blades.

3. Wear Parts: Nozzles, Sealing Rings, Wire Drawing Dies, Carbide Rolls.

4. Carbide Tools for Mining.

5. Kinds of Customized Cemented Carbide Tools.

The items also can be made according to your own specification. Please feel free to contact us.
