Changzhou Xute Jifeng Tools Group Co., Ltd. >> Tungsten Solid Carbide Cutter Inner Redius End Mill Tools

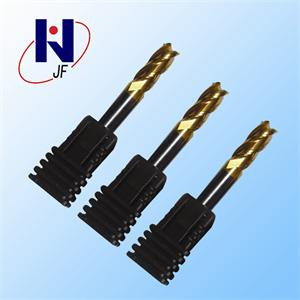

Tungsten Solid Carbide Cutter Inner Redius End Mill Tools

Name: Tungsten Solid Carbide Cutter Inner Redius End Mill Tools
Brand: China-Manufacturer-Directory.com
SKU: 745748205
Availability: InStock
Rating: 4.7 (45 reviews)

Supplier:	Changzhou Xute Jifeng Tools Group Co., Ltd.
Price:	US $ 2-50/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	XTJF-09
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Carbide Alloy
Hardness:	HRC 40-65
Performance Classification:	High-End CNC Machine Tools
Process Usage:	Metal-Cutting CNC Machine Tools
Numerical Control:	NC
Movement Method:	Contour Control
Control Method:	Closed-Loop Control

Product Description

Tungsten Solid Carbide Cutter Inner Redius End Mill Tools

1. Specifications
- Chemical composition: 89% Carbide, 10% Co, 1% other material
- Physical and machinal properties:
- Density: 14.10-14.45g/cm3
- Hardness: 91.5-92.5HRA
- Flexaral strength: 3500-4000N/mm2
- Grain size: 0.4-1 um
- Working material for steel and high speeding cutting;
- Any your drawings design are acceptable;

2. Raw Materials
- SANDVIK of Sweden;
- Teagutec of Korean;
- Kennametal of American;
- Guhring of Germany;
- YG10X of Zhuzhou China;
- WC25F of Taiwan;

3. Our Workshop and Advanced Equipments
- Walter CNC machine from Germany;
- ANCA CNC machine from Australia;
- Guhring detecting instrument from Germany;
- MICHEAL DECHAL CNC Machine from Germany;

4. Our advantages:
- Our carbide end mills are made by 5 Axi grainding machine with high toughness & high wearing precision;
- Our carbide end mills have long usage life lasting in hardened steels,
- Every product will inspected by Zoller Machine;
- Special CNC solid tools with high quality/ometitive price/good service;

5. Package
- One piece in one plastic box, and ten boxes in one carton;
- Any other requested packing are acceptable;

Solid Carbide 2/4 Flutes Corner Radius End Mill(X-JF16810)
						45	55
CODE	flute diameter	flute length	shank diameter	full length	R	USD	USD
X-JF16810-0300	3	6	4	50	0.5
X-JF16810-0400	4	8	4	50	0.5
X-JF16810-0500	5	15	6	50	0.5
X-JF16810-0600	6	15	6	50	1
X-JF16810-0800	8	20	8	60	1
X-JF16810-0800	8	20	8	60	2
X-JF16810-1000	10	25	10	75	1.5
X-JF16810-1000	10	25	10	75	2
X-JF16810-1200	12	25	12	75	1
X-JF16810-1400	14	25	12	80	2
X-JF16810-1600	16	40	16	80	2
X-JF16810-1800	18	40	20	100	1
X-JF16810-2000	20	40	20	100	2

Solid Carbide Mills

Milling Model Name	Machining material and/or rigidity	V(m/min)	Fz(mm/z)	Ap(mm)	Aw(mm)
Solid carbide key way milling tools	Steel HB 180-280	70-150	0.01-0.06	0.4-0.6D	<=D
	Cast-iron HB 180-220	100-120	0.01-0.06
Solid carbide end mills,corner rabius end millstaper enn mills	Steel HB 180-280	90-160	Milling flutes0.01-0.01	Milling flutes<=D Side milling<=1.5D	Milling flutes<=D Side milling<=0.2D
			Side milling0.03-0.3
	Cast-iron HB 180-220	100-150	Milling flutes0.02-0.15
			Side milling0.06-0.45
Solid carbide ball head end mills	Steel HB 180-280	80-220	0.01-0.08	<=0.4D	<=D
	Cast-iron HB 180-220	280-280	0.02-0.10
Solid carbide taper ball head end mills	Steel HB 180-280	120-170	0.01-0.08
	Cast-iron HB 180-220	250	0.02-0.10

If you are intrested in any details of our products, pls feel free to contact with us!

Changzhou Xute Jifeng Tools Group Co.,Ltd.
Address:No.1 East Main Street, Xixiashu Town, Changzhou, Jiangsu, China
Web: www.czxtjftools.com
Tel: 13616100599, 86-0519-86929580
Fax: 86-519-86705585

Order No	d	I	D	L
1.0× 3× 4D× 50L × 4F	1	3	4	50
1.5 × 4 × 4D× 50L× 4F	1.5	4	4	50
2.0 × 8 × 4D × 50L × 4F	2	8	4	50
2.5 × 8 × 4D × 50L× 4F	2.5	8	4	50
3.0 × 8× 6D × 60L× 4F	3	8	6	60
3.5 × 8× 6D × 60L× 4F	3.5	8	6	60
4.0 × 11 × 6D × 75L × 4F	4	11	6	75
4.5× 11× 6D × 75L× 4F	4.5	11	6	75
5.0× 13 × 6D × 75L× 4F	5	13	6	75
5.5 × 13 × 6D× 75L× 4F	5.5	13	6	75
6.0 × 15 × 6D × 75L× 4F	6	15	6	75
7.0× 20 × 8D × 100× 4F	7	30	8	100
8.0 × 20× 8D× 100L × 4F	8	20	8	100
9.0× 25× 10D× 100L× 4F	9	25	10	100
10× 40× 10D× 100L× 4F	10	25	10	100
11× 30× 12D× 100L × 4F	11	30	12	100
12× 30× 12D× 100L× 4F	12	30	12	100
14× 45× 14D× 150L× 4F	14	45	14	150
16× 45× 16D× 150L× 4F	16	45	16	150
18× 45× 18D× 150L × 4F	18	45	18	150
20× 45× 20D× 160L× 4F	20	45	20	150
