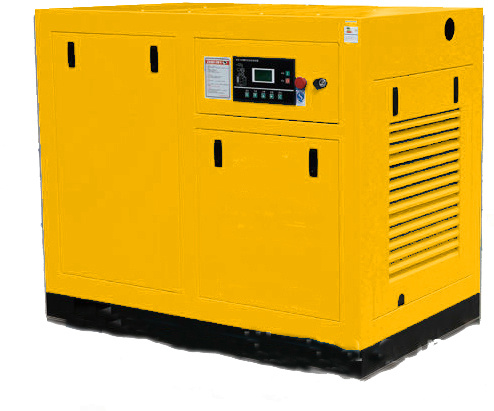

Turbo Compressor Air Compressor

Name: Turbo Compressor Air Compressor
Brand: China-Manufacturer-Directory.com
SKU: 721077205
Availability: InStock
Rating: 4.7 (149 reviews)

Supplier:	Shanghai Dynamic Technologies Co., Ltd.
Price:	NegotiableSuit
Min Order:	1Suit
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	Dt -50AV
Configuration:	Stationary
Power Source:	AC Power
Type:	Screw
Lubrication Style:	Lubricated
Condition:	New
Weight:	840kg
Dimension(LWH):	145010001420(Mm)

Product Description

Packaging & Delivery
Packaging Detail: Standard Wooden Case
Delivery Detail: 7 Days After Receiving The Prepayment
Specifications
1. GHH Air End
2. SKF Bearings
3. High Efficiency

Model			Dt-50AV
Air Discharge Pressure Discharge	m3/min/Mpa		1.92-6.4/0.7
			1.83-6.1/0.8
			1.71-5.7/1.0
			1.53-5.1/1.3
Cooling Model			Air Cooling
Working Environment Temperature			- 5 ° C ~ 45 ° C
Discharge Temperature	° C		≤ The Environment Temperature +10° C-15° C
Oil Content Of Discharged Air	PPM		Less Than 3 ppm
Noise Level	dB(A)		74± 2
Transmission Mode			Belt Transmission/Coupling Direct Transmission
Power Supply	V/Ph/Hz		380V/50Hz Or As Your Request
Motor	KW		37
	HP		50
	Isolation Grade		F
	Safty Grade		IP54
	Starting model		Star-Delta(Y-Δ )
External Dimensions	L	mm	1450
	W	mm	1000
	H	mm	1420
Weight	Kg		840
Exhaust Pipe Diameter	Inch		G11/4"
Test Standard	ASMC PTC9 / ISO1217 (GB/T3853)
Packing	Wooden Case
F. A. D Volume Flow Test Is According To ASMC PTC9 Or ISO 1217Standard(GB/T3853)

Our goal is to deliver smart and reliable manufacturing, installation and maintenance of compressed air solutions for our customer needs. We have gained our position as a leader in the compressor world by working diligently in improving our products, techniques and customer service in every scale.

With manufacturing facilities in China and a worldwide distribution network, BEST-PAL serves customers in every corner of the globe. BEST-PAL factory in China is ISO 9001: 2008 certified to assure the highest quality standards.

D-TECH Air Compressors
The Energy-Saving D-Tech Patented Profile Airend Larger, slower-running airends are more efficient and deliver more compressed air for the same input power. BEST-PAL Patented Profile Airends are optimized and designed to operate at the lowest possible speeds. Every BEST-PAL rotary screw compressor is equipped with a highly efficient airend and will quickly pay back for itself through power cost savings.

Time Proven Reliable Airend
Used in compressors worldwide, BEST-PAL airends have proven to be the market leader in both reliability and efficiency.
Precision machined rotors.
Highest quality tapered roller bearings.
All coolant flow paths are integral to the cast housing, eliminating potential leak paths.
Ideal wherever budgets are limited, but the need for performance is not.
Premium Efficiency And Performance
BEST-PAL's premium efficiency compressors deliver reliability through our unique airends, reknowed for trouble-free operation and low energy consumption. Efficiency and durability through low compression ratio in each stage.
