Product Specifications
| Prod Model: |
GDZJ-5S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Peak Voltage: |
500-5000V Continuous Adjustment |
| Peak Error: |
≤ 5%(1kv-5kv) |
| Power Supply: |
220V± 10%, 50Hz |
| Dimension: |
480*260*390mm |
| Weight: |
24kg |
Product Description

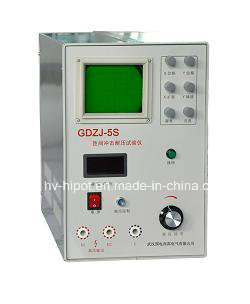

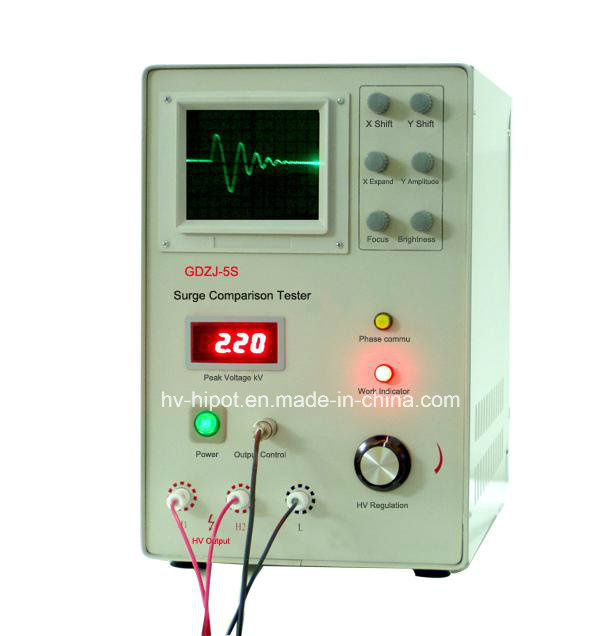

GDZJ-5S is used to test turn-to-turn insulation strength of single phase motor, 3-phase motor, Micro motor, Special motor, electrical motor, transformer (including switching mode power supply transformer), relay and winding electrical equipment.
It can detect below faults:
L Turn-to-turn Insulation breakdown
L Corona discharge
L Winding connection mistake
L Winding disconnection
L Turn-to-turn difference
L Short-circuit between interphase, winding phase or iron core
Specifications
L Peak voltage: 500-5000V continuous adjustment
L Peak error: ≤ 5%(1kV-5kV)
L Waveform rising time: 0.5μ S or 0.2μ S
L Power supply: 220V± 10%, 50HZ
L Power consumption: ≤ 100 W
L Dimension: 480*260*390mm
L Weight: 24kg
