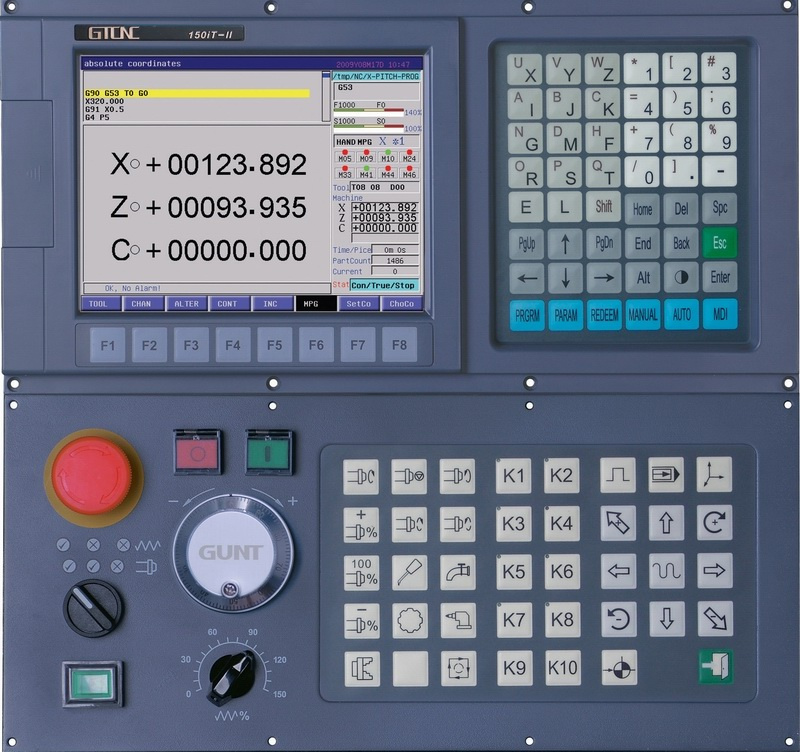

Turning Center CNC Controller (150iT-II with D Type Subpanel)

Name: Turning Center CNC Controller (150iT-II with D Type Subpanel)
Brand: china-manufacturer-directory.com
SKU: 668857422
Availability: InStock
Rating: 4.4 (70 reviews)

Supplier:	Soteng CNC Technology Co., Limited
Price:	Negotiable
Min Order:	1/Piece
Quantity::
Trade Terms:	in 3-7 Days After Payment

Product Specifications

Prod Model:	150iT-II with D Type Subpanel
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

GREAT-150iT-II Specification:
>Controllable axes: 2-5 axes
>Linkage axes: 2-5 axes linear, 2 axis arc linkage
>32MB user storage
>8.4 inch TFT Colorful display with D-type subpanel
>Real-time and all-round self diagnosis
>Feed per minute and feed per revolution
>Metric/Inch thread, straight thread, taper thread, end face thread, variable pitch thread, high speed thread, continuous tread;
>Various interpolation commands and M, S, T function
>Max 99 tools management
>Chinese/English language
>Parameter package and software backup/upgrade

Absolute Superiority:
1) Speed:
>Max rapid traverse: 60m/min
>Max cutting speed: 20m/min
>Program preview: 1000 blocks

2) Precision:
>Screw pitch compensation, improving machining precision to the most
>Pulse equivalent: Max precision can set as 0.0001mm

3) Interface:
A) Embeded PLC with I/O number 118 x 46, users can free to edit
B) USB port supply DNC function
C) RS232 port supply DNC function by transmit rate 115200bit
D) MPG on board or separate MPG are available
E) Dual channel control of spindle speed conversion, can control two spindle Units and diverse tool magazine.

4) Operation:
A) Full-screen editing interface and foreground-background processing operation, which can do programming, parameter adjustment etc at same time
B) 2D/3D graphic preview or simulating operation before machining, coordinates display, free shifting between 2D/3D graphic; Graphic can scale up/scale down, translate and rotate freely.
C) Multilevel passward protection, such as program, parameter protection to convenient equipment management;
D) Start machining at random block or tool number
E) Compatible with popular foreign CNC system in instruction code and most program can run directly without amendment.

G code	group	function
G00	01	Rapid positioning
G01		Linear interpolation
G02		Helical interpolation CW
G03		Helical interpolation CCW
G33		Treading
G04	00	dwell
G17	02	Xp -Yp plane	Xp: X axis or its parallel axis Yp: Y axis or its parallel axis Zp: Z axis or its parallel axis
G18		Zp -Xp plane
G19		Yp -Zp plane
G20	06	Inch format input
G21		Metric format input
G28/G281/ G282/G283	00	Return to the first reference point
G30/G301/ G302/G303		Return to 2nd, 3rd, 4th reference point
G26		ZXY axis return to program original point
G261		X axis return to program original point
G262		Y axis return to program original point
G263		Z axis return to program original point
G40	07	tool radius compensation cancel
G41		cutter radius compensation, left
G42		cutter radius compensation, right
G52	00	Set local coordinate system
G53	14	Select machine coordinate
G54		Select work coordinate system 1		Note: These are six work coordinates in the CNC, user can select any one.
G55		Select work coordinate system 2
G56		Select work coordinate system 3
G57		Select work coordinate system 4
G58		Select work coordinate system 5
G59		Select work coordinate system 6
G60	15	accurate positioning
G64		Continual path processing
G74	09	Tapping CCW; Format: G74 X_Z_R_P_K_L_
G84		Tapping CW; Format: G84 X_Z_R_P_K_L_
G77		Cylindrical/conical interior/exterior diameter cutting canned cycle Format: G77 X(U)_Z(W)_ I_ F_
G78		Thread cutting canned cycle; Format: G78 X(U)_Z(W)_ I_ J_ Q_ K(E)_ L(SP)_
G79		End face cutting cycle; Format: G79 X(U)_Z(W)_ K_ F_
G70		Finish turning: format: G70 P_L_
G71		Cylindrical rough turning multi-cycle Format: G71 L_ Q_ R_ I_ K_ F_ S_ T_
G72		end face rough turning multi-cycle Format: G72 L_ Q_ R_ I_ K_ F_ S_ T_
G173		Multiple mode contour rough turning multi-cycle Format: G173 L_ Q_ R_P_ I_ K_ F_ S_ T_
G174		End face pick drilling multi-cycle Format: G174 X(U)_ Z(W)_ Q_ R_ I_ J_ F_ P_
G175		Interior/exterior diameter drilling/grooving multi-cycle Format: G175 X(U)_ Z(W)_ Q_ R_ I_ J_ F_ P_
G176		Thread cutting multi-cycle Format: G176 P(m_ r_ a_)_R_ X(U)_ Z(W)_ I_ J_ Q_ K(E)_ SP_
G90	03	Absolute programming
G91		incremental programming
G92	00	Set work coordinate system
G94	05	Feed per minute mode
G95		Feed per revolution mode
G96	08	Constant surface speed mode
G97		Constant surface speed mode cancel
G22	19	Program cycle
G800		Program cycle cancel
G65	12	Non-modal macro program calling
G66		Modal calling of macro program
G67		Cancel macro program calling
