Turret Busbar Processing Machine
Product Specifications
| Prod Model: |
JPMX-303DM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania |
| Dimension: |
1500*1300*1200mm |
| Power: |
3*4kw |
| Weight: |
1250kg |
| Max.Strength: |
300kn |
| Application: |
Machinery & Hardware |
| Type For Cutting Machine: |
CNC Cutting Machine |
| Type For Fold-bending Machine: |
CNC Fold-bend Machine |
| Automation: |
Automatic |
Product Description
Product description:

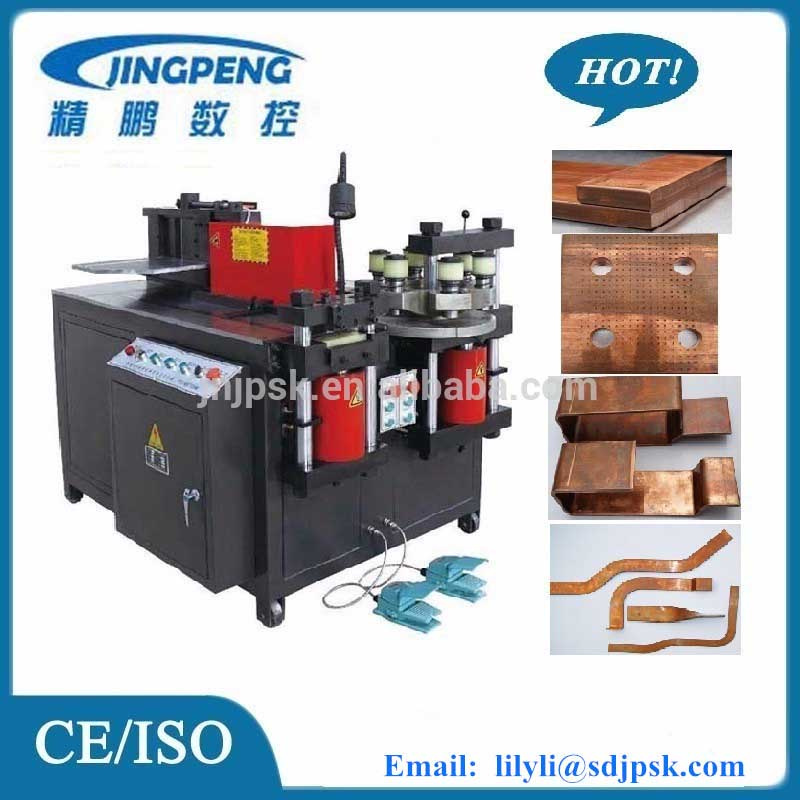

The copper busbar bending machine has three units; Punching, cutting, and bending, which can work at the same time
It can easily to process on all kinds of copper and aluminum busbar, such as cutting, punching, flat and vertical bending, knurling. Change differert mold to do special processing to copper bar, such as flat press, embossing, cable connector process, and can do cutting, falt crushing, punshing, and bending.
Main Features:
1. cutting unit uses sharp shearing, the incision interface is flat, no droop and no burrs and waste, beautiful shape
2. punching unit: Uses an united six-mode turnplate, no need to change molds frequently
3. bending unit: Use a closed structure to make sure the flat bending and enbossing more smooth
4. the machine has four casters so it is easily to be moved everywhere
5. two operating modes, manul button and foot switch
| TYPE |
|
| JPMX-303DM | JPMX-303CM | JPMX-503DM |
| Punch | Max. punch force | KN | 300 | 300 | 500 |
| Diameter range | mm | 4.3 ~ 25 | 4.3 ~ 25 | 4.3 ~ 34 |
| Max. punch thickness | mm | 12 | 12 | 16 |
| Max. punch width | mm | 150 | 150 | 250 |
| Mold No. | pc | 1 | 1 | 1 |
| Shear/Cut/Slit | Max. cut thickness | mm | 12 | 12 | 16 |
| Max. cut width | mm | 150 | 150 | 250 |
| Horizontal bend | Max. bend strength | KN | 30 | 30 | 500 |
| Max. bend width | mm | 150 | 150 | 250 |
| Max. bend thickness | mm | 12 | 12 | 16 |
| Bend accuracy | Degree |
|
|
|
| Relocation accuracy | Degree |
|
|
|
| Decker no. |
| 1 | 1 | 1 |
| Vetical bend | Max. bend thickness | mm | 10 | 10 | 10 |
| Max. bend width | mm | 100 | 100 | 120 |
| Min. bend angle | Degree | 90 | 90 | 90 |
| Other | Machine size | mm | 1500*1300*1200 | 1500*1300*1200 | 1800*1500*1200 |
| Power motor | KW | 1*4KW | 3*4KW | 3*5.5KW |
| Weight | KG | 1050 | 1200 | 1750 |
| Trundle | pc | 4 | 4 | 4 |
|
|
|
|
|
Jinan Jingpeng CNC Machinery Co., Ltd. Is a technology company, specializing in the developing, production, selling of electrical & CNC metal plate machines. We have much advanced management experience, strong technology and large selling networks. Our products rank the leading place in the industry. Our manufacturing machines are excellent and technology is advanced, reasonable, and strong. We pursue in first-class technology, first class product, first class service, and grow by constant innovations. Our advantage is trying our best to meet users' requirements.
We offer users consultant hotline and lifelong maintenance. Now, we have more than 3000 users home and abroad. When our products are welcomed in China, we also take a big leap at international market. We get an import & export license of independent import and export right. Our products are sold to many places in the world, such as Korea, Malaysia, Singapore, South Africa, Brazil, Russia, Thailand, Vietnam, Pakistan, Our products have reliable quality with on time after-sales and very welcomed by foreign users.
Our products are widely used in the following industries, such as high-low voltage switchgear, electric transformer station, voltage transformer, appliance switch, communication equipment, home appliance, ship manufacturing, office automation machine, electric elevator manufacturing, electric cabinet manufacturing, etc. Main products include CNC busbar processing machine, Turret busbar processing machine, Multi station busbar processing machine, CNC busbar processing machine, CNC busbar punching line, portable busbar processing machine, busbar leveling machine, guide rail cutting machine, copper/aluminum processing machine, and voltage transformer processing machine, etc.
