Product Specifications
Product Description

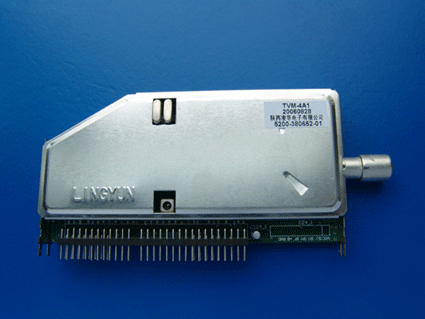

This TVM-4A is a member of the TV Module family. It includes all function, such as RF, IF, AV, decode and control, memory of the TV set. It consists of tuner, VIF, Chroma, Luma, RBG matrix, MCU, EEPROM and other circuit. Finally, it outputs RGB tricolor to CRT. This TV Module use the Low /MID TV chip R2J10160PT made by RENESAS.
This module is powered by 5v and 8v voltage supply, IIC bus control format. It can be used in 21"-29"TV set for several systems, thus PAL-DK, PAL-BG, PAL-I and NTSC etc. By software select. It have a powerful software function, friendly user interface.
All these characteristics reflect the developing trend of small size, low cost, modularization, mulit-function of common TV design.
Established in 1987, we, Shaanxi Linghua Electronic, are a manufacture of TV high-frequency assemblies. The company has more than 40 technical engineers who in charge of new product design, quality control and production management. The company has 5 SMT production lines and 4 assembly /adjusting production lines for each. Production line is highly flexible, it can do many kinds of electronic module production. Currently the capability of ACM is 6, 800, 000 points per day. The daily output of tuners is 22, 000 PCS.
We Adopted the first-class manufacturing techniques; Cooperating with the famous multinational companies, And we have honoured ISO9001, ISO14001 approvals.
