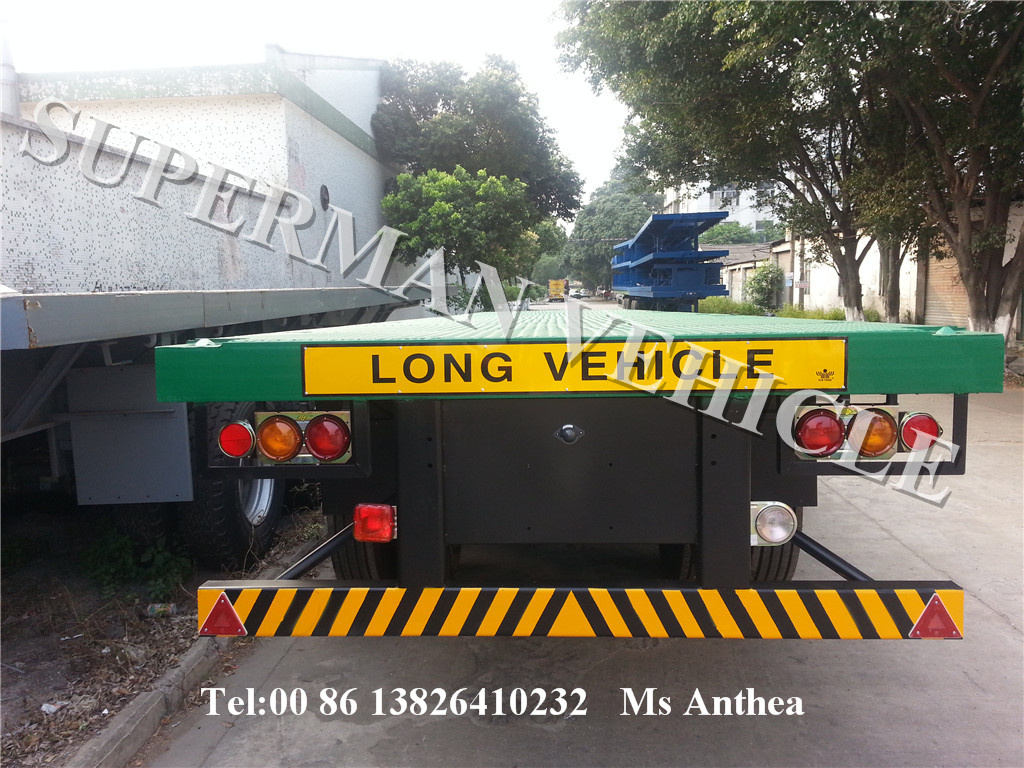

Two Axle Flatbed Semi Trailer
| Price: |
US $ 8000.00-13000.00/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
Product Specifications
| Prod Model: |
PC9350 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
40ft |
| Towing Pin Type: |
Mushroom Type |
| Towing Pin Diameter: |
50mm |
| Type: |
All Trailer Parts |
| Load Capacity: |
40t |
| Wheel Base: |
1356mm |
| Tread: |
1840mm |
Product Description
Two Axle Flatbed Semi Trailer (PC9350)1) Manufacturer, more than 20yrs professional experience.
2) CCC, SGS and ISO9001 certificate, 6 month guarantee term provided.
3) Small order can be accepted.
4) Any color and logo will be available.
5) Products can be custom-made according to your design, or diversified needs.
Dimensions (12375*2480*1500mm)
Total Mass 35000KGTare Weight 6350kgPayload 28650kgWheel track 1840mmWheel base 7445mm+1356mm+1356mmSTANDARD SPECIFICATIONMain Frame:Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes500mm Height, Top Flange 16mm, width 140mm; Middle Flange 6mm; Bottom Flange 16mm, width 140mm1)Floor:Steel Sheet 3mm thickness2)AxleTwo Units German or American Style axle3)SuspensionA couple of FUWA(Brand) mechanical 2-axle suspension4)Leaf SpringFour sets of reliable local brand, 7-piece leaf spring, 16X90mm6) Landing GearTwo-speed, manually operating, heavy duty landing leg7)Wheel RimNine units of 8.25*22.5 rim8)TyreNine units of 11R22.5 Tubeless tyre9)Twist Lock12 sets ISO twist lock10)Spare Wheel CarrierOne set of spare wheel carrier including a riser.11)Pneumatic Braking Systemone unit of WABCO RE 6 relay valve; Two units of T30/30 spring brake chamber; Two units of T30 brake chamber, One unit of reliable local brand 45L air tank; One units of reliable local brand standard coppery air-connector.12)Electrical SystemOne unit of JAEGER POWAY, 24V 7-pin ISO 1185 socket; Tail lamp with turn signal, brake light & reflector, side lamp etc.One set of DAFA(brand ) 6-pin standard Cable.13)Painting Sand blasting processing clean rust1. Coat of anticorrosive primer2. Coats of finish urethane paint3. Color as customer choice14)AccessoryOne tooling box with whole set of standard trailer toolFor the specification above, we reserve the right to make any changes without notice.
Guangzhou Panyu Superman Transport Equipment Co., Ltd. Design and manufacture different Semi-trailers. Our company meets the strong demands of the ever-expanding business of containerized transport with the latest technology. The products take the advantages of good appearance, reasonable structure, high transporting ability, fine complex quality and are easily repaired.
Because these semi trailers are equipped with the world know axles and brakes made by the FRUEHAUF of U. S., the BPW of Germany, and the YOPK of U. K., the brakes quality is ensured completely, they are suitable to carry all kinds of containers of international standards and bulky cargoes.
Superman is committed to both domestic and overseas customers to good services. Demands from customers for specific design are welcome and well accommodated.
