Product Specifications
| Prod Model: |
TCC200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Process Efficiency: |
High |
| Type: |
Insulating Glass Production Line |
| Certification: |
UL |
| Control System: |
Pneumatic |
Product Description

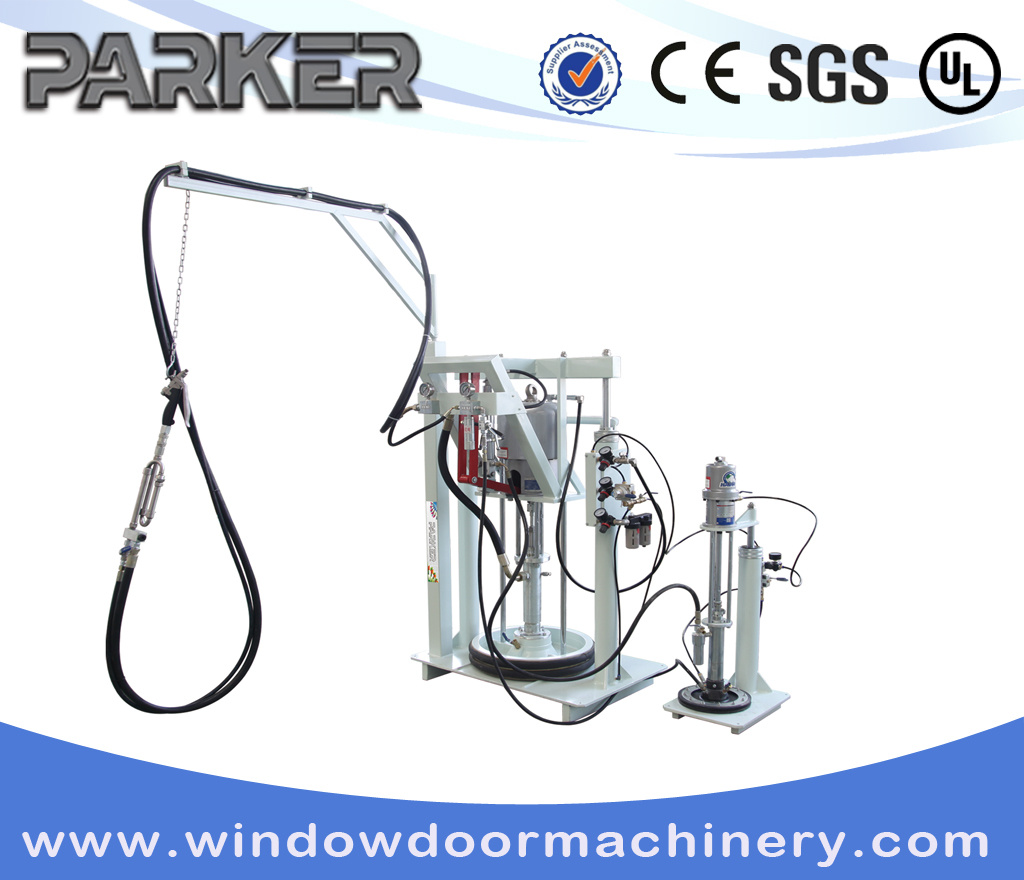

Two-Component Coating Machine for double glass
Model: TCC200Features:Ø This is a special purpose and machine spreading two-part polg sulfide sealant when making aluminum groove type insulating glass and curtain wall glass.Ø The main and auxiliary pumps activated by hydraulic lubrication oil and compressed air, controlled by no-touch-point electric control system, is smooth to run, flexible and reliable to change direction, continuous and stable to produce sealant, high in efficiency and convenient to use and maintain, so it is one of the most important equipment to make aluminum groove type insulating glass and curtain glass.Parameter:Ø Voltage:380V 50HZ
Ø Power:1.1KW
Ø Air pressure:0.5-0.8Mpa
Ø Air consumption:0.6L/min
Ø A pump pressure plate size:Φ565 (50 gallon barrel)
Ø B pump pressure plate size:Φ285 (5 gallon barrel)
Ø Mixed rate:100:6.5-100:14.5
Ø Overall dimension:1200mm x 1100mm x 2500mm
Ø Weight:650kg
Ø Glue type:SILICON,SULFIDE,URETHANE
|
Voltage |
380V 50HZ |
|
Power |
1.1KW |
|
Air pressure |
0.5-0.8Mpa |
|
Air consumption |
0.6L/min |
|
A pump pressure plate size |
Φ565 (50 gallon barrel) |
|
B pump pressure plate size |
Φ285 (5 gallon barrel) |
|
Mixed rate |
100:6.5-100:14.5 |
|
Overall dimension |
1200mm x 1100mm x 2500mm |
|
Weight |
650kg |
Parker Machinery Co., Ltd., China has developed the assembly line equipment for door-window, curtain walls and Insulating glasses process. The operation of high precision, advancement and specialty makes the enterprise well-known. She sets an example for her pure quality and excellent service. So she becomes the reliable cooperative partner of the door-window enterprise for her responsibility.
Parker machines sell well, become well-known and outstanding at the national fairs of door-window equipment, owing to:
Using of European standards, and taking in the view and pithy of the design.
Purchasing main parts internationally.
Selling machines to other countries, such as Iran, North America, South Africa, Russia, Korea, Middle East, and so on.
Carrying our "Handover key project" ahead of other in this area.
Combining the manufacture with the development of design software of door-window.
Owing more than twenty sales and service agencies.
To meet the great need of development of hi-grade door-window, combining with almost ten years of experience, we introduced advanced technology from other countries, and developed five types, more than forty specifications of door-window and curtain wall equipment. Door-window factories needn't import any hi-grade machine from other countries any more.
Let's share science and technology of the world!
