Product Specifications
| Prod Model: |
TCC300A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Glue Type: |
Silicon,Sulfide,Urethane |
| Mixed Rate: |
100:6.5-100:14.5 |
| Voltage: |
380V 50Hz |
| Power: |
1.1kw |
| Air Pressure: |
0.5-0.8MPa |
Product Description

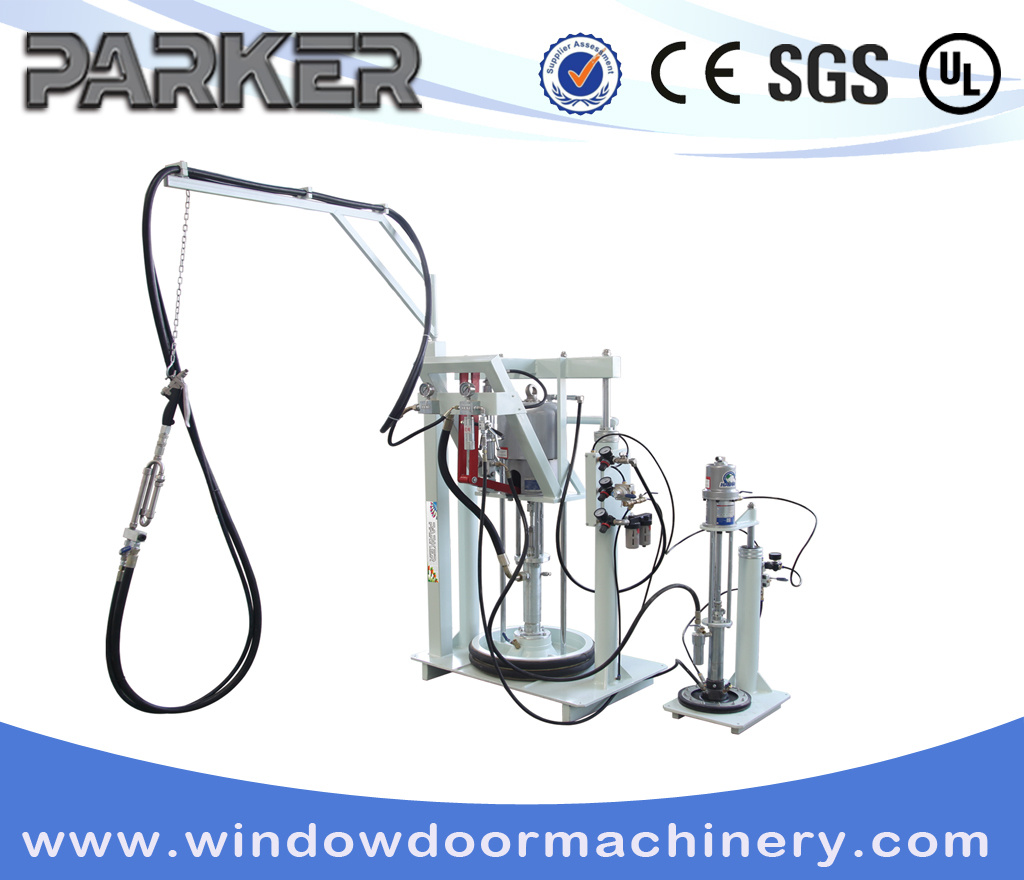

Two-Component Coating Machine
Model: TCC300A
Features:
1- This is a special purpose and machine spreading two-part polg sulfide sealant when making aluminum groove type insulating glass and curtain wall glass;
2- The main and auxiliary pumps activated by hydraulic lubrication oil and compressed air, controlled by no-touch-point electric control system, is smooth to run, flexible and reliable to change direction, continuous and stable to produce sealant, high in efficiency and convenient to use and maintain, so it is one of the most important equipment to make aluminum groove type insulating glass and curtain glass;
3- Most of the parts on the machines are imported.
Parameter:
| Voltage: | 380V 50HZ |
| Power: | 1.1KW |
| Air pressure: | 0.5-0.8Mpa |
| Air consumption: | 0.6L/min |
| A pump pressure plate size: | Φ565 (50 gallon barrel) |
| B pump pressure plate size: | Φ285 (5 gallon barrel) |
| Mixed rate: | 100:6.5-100:14.5 |
| Overall dimension: | 1100mm x 950mm x 1630mm |
| Weight: | 600kg |
| Glue type: | SILICON,SULFIDE,URETHANE |
