Two-Component Mixer-Dispenser for Double Glazing
| Price: |
US $ 61680-86196/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
WL2000-31 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Glass Coating Machine |
| Certification: |
CE |
| Control System: |
PLC |
Product Description
Silicone sealant filling machineMain Feature1 achieve various size of rectangle insulating glass automatic continuously sealing, high efficiency and stable quality sealing, high efficiency and stable quality sealing performance.
2 two separate sealant supply systems, which can be switched freely.
3 finished IG unit can be stored on the third section, strengthen the continuity of machine's operaton, and improve the production efficiency.
4 economical and practical, suitable for glass deep processing processing enterprises.
5 friendly interface, easy for operation
6 all edges and corners sealant coating enrich no air bubbles, fully coating, without manual trimming
7 adopt world-renowned brand of servo control system, stable performance
8 accurate synchronous belt transmission system to ensure glass convey stable and clean.
9 unique insufficient sealant to be automatic alarm device

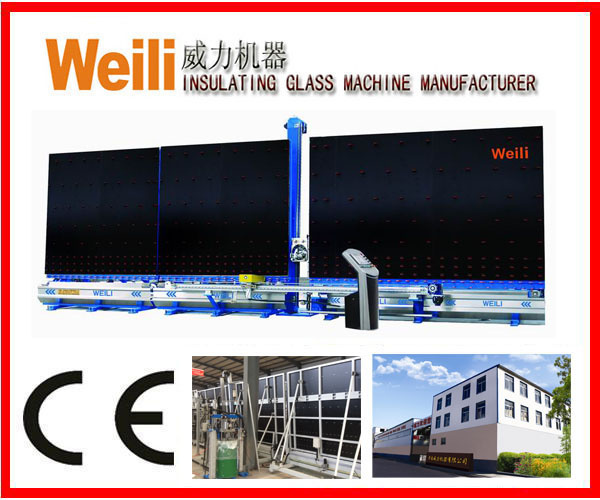

Main picture about machine

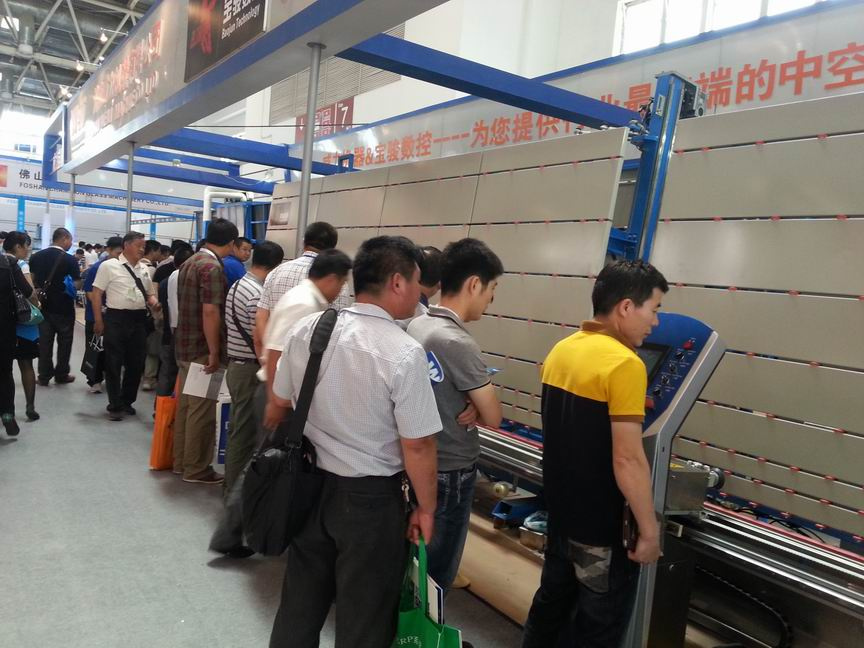

China Glass 2013

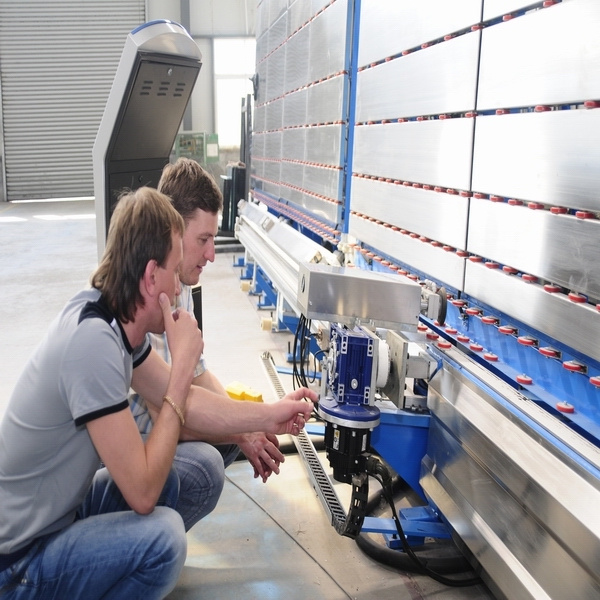

Russia Customer were watching our machine running

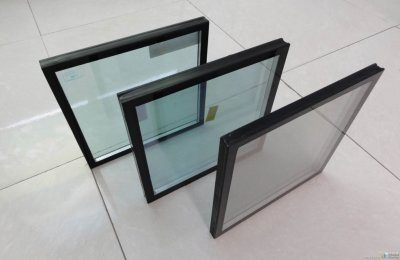

Gluing effect| Product model | WL2000-31 | WL2000-32 |
| Min.glass size | 350*500mm | 350*500mm |
| Max.glass size | 2000*2500mm | 2000*2500mm |
| Glass thickness | 3-12mm | 3-12mm |
| Sealant-mixing system | Single Sealant-mixingsystem | Two Sealant-mixing system |
| Insulating glass thickness | 12-56mm | 12-56mm |
| Sealing speed | 5-30m/min | 5-30m/min |
| Sealing width | 6-24mm | 6-24mm |
| Sealing depth | 2-15mm | 2-15mm |
| Conveyor speed | 0-48m/min | 0-48m/min |
| Power supply | 13KW | 13KW |
| Air supply | 0.5-0.8Mpa | 0.5-0.8Mpa |
| Working height | 520-580mm | 520-580mm |
| Dimension | 7850*3000*2950mm | 7850*3000*2950mm |
