Product Specifications
| Prod Model: |
E4202 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Punade |
| Model Number: |
E4202 |
| Propetry: |
Waterproof, Moisture/Temperature Resistance |
| Certificate: |
CE, SGS, ISO9001:2000, MSDS, UL, RoHS |
| MOQ: |
500-2000 PCS |
| Samples: |
Free Sample |
| Delivery Time: |
Fastest Delivery(5-7days) |
| Shipping: |
by Express(FedEx, UPS, DHL, TNT), or by Sea |
| Manufacturer: |
R&D Manufacturer, Factory, China Supplier |
| Clients: |
Lonking, Jabil, Dongfeng Group, Cummins, Volvo |
| Classification: |
Room Curing |
| Application: |
Packing |
| Material: |
Polyurethane |
| Characteristic: |
Waterproof |
| Morphology: |
Solvent-Free |
| Color: |
Black/White |
Product Description
E4202A/B Two-component Room Temperature Curing Industry Epoxy Potting Adhesive
E4202A/B is solvent-free type room temperature curing epoxy potting adhesive
Features
1. Good toughness, high hardness
2. Excellent adhesion, anti-cracking resistance
3. Excellent electrical insulating properties, stability
4. Good waterproof, moisture resistance, very low water absorption
5. Good temperature resistance, resistance temperature of 150 °C in 1 hr short time
Use
For sealing and protection of power capacitors, filters, sensors, automotive electronics and optoelectronic LED

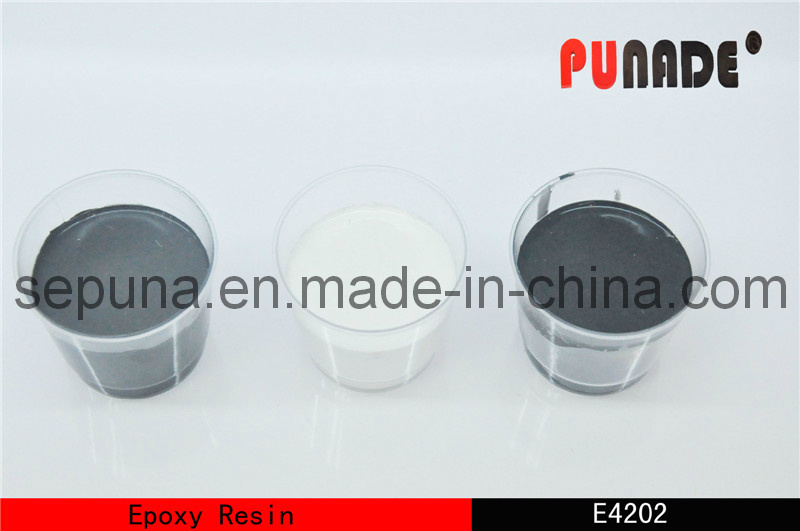

Product Show
Operation
1. Stirring A component evenly before using it .
2. Weighed in a 5:1 ratio A, B two components, stir well stay with after vacuum deaeration to use within 60 minutes run out.
3. Good potting devices ,if necessary, continue to pumping vacuum, help to increase the electrical performance of the device.
4. Curing conditions: 25°C for 24hrs at room temperature ; or let stand for surface bubbles after heating 65 °C× 0.5hr.
5. Note: adhesive start the reaction after adhesive preparation , accompanied by heat release. With the greater amount of glue, the greater the heat release, the shorter operating time, required in a shorter period of time you are finished using
6.The above tests are measured under 100 g with adhesive
Package & Storage
Package ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ Storage
Part A : Black , 25kg/bucket ？ ？ ？ ？ ？ ？ ？ ？Seal and Avoid light and light
？ ？ ？ ？ ？ ？ ？White, 25kg/bucket ？ ？ ？ ？ ？ ？ ？ ？Temperature≤25°C, humidity≤50%RH
Part B: Black, 5kg/pot ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？Shelf life: Part A 6 months, Part B 6 months
？ ？ ？ ？ ？ ？ White: 5kg/pot
Out standing customer care services at any time, 24 Hour Help Support on line or or call +86-400-882-1323
|
Characteristics before hardening |
|
|
E4202Black |
E4202White |
|
Part |
A |
B |
A |
B |
|
Appearance |
Black thick liquid |
Brown Liquid |
White thick liquid |
Colorless transparent liquid |
|
Viscosity, mPa.s(25 °C ) |
15000 |
100-390 |
15000 |
100-300 |
|
Proportion , g/cm3(25 °C ) |
1.85±0.05 |
1.05±0.05 |
1.85±0.05 |
1.05±0.05 |
|
Mixture/mass ratio, |
100:20 |
|
Viscosity after mixing, mPa.s (25 °C ) |
4500±500 |
|
Weight after mixing, g/cm2(25 °C ) |
1.65±0.10 |
|
Operation time after mixing, hour(25 °C ) |
1 |
|
Gel time |
25 °C /5hrs or 80 °C /25mins |
|
Curing time |
25 °C /24hrs or 80 °C /60mins |
|
Hardness, Shore D |
85 |
|
Water absorption 24h,25 °C ,% |
<0.3 |
|
Dielectric strength, KV/mm,25 °C |
>20 |
|
Flame resistance, UL 94 |
V-0 |
\ |
|
Temperature range , °C |
-40~120 |
-40~120 |
|
Volume resistance DC500V, Ω@cm |
1.2×1015 |
