Product Specifications
| Prod Model: |
LDM25XY/LDM50XY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

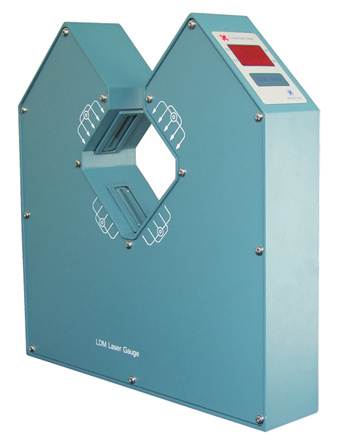

Two-dimensional laser diameter detector is the high-accuracy survey installment that uses the laser scan to carry on the no-contacts on-line survey. It (namely X axis and Y axis) simultaneously surveys the diameter in two directions.
Applicable to metal wires, glass, pipes, wire and cable, etc. The diameter of the measurement and control...Bi-directional measurement, the average shows that can simultaneously show the wire, pipe diameter, roundness.
Model Survey Scope Differentiation
LDM-25XY 0.1-25mm 0.001
LDM-50XY 0.1-50mm 0.001
Survey way: Laser scanning method
Laser unit: Red visible semiconductor laser
Laser work function: <2mW
Environment: <95%RH
Work way: Continuously
Consumes the electricity: <30W
External dimensions:
Measuring head: 400mm X 400mm X 80mm
Stent: 350mm X 200mm X (700-1000) mm
Center high of the Surveying position: 900-1200mm
The Device with the following Characteristics
1. Can be connected PLC, industrial computer.
2. RROFIBUS-DP can be allocated and MODBUS converter and PLC, IPC Connect.
3. Can be equipped remote controller DDC-3, DDC-5, on the extruder and automatic feedback control to control the tolerance, improve product quality, reducing consumption.
Zhengzhou Mercury-Tech Co., Ltd., is a special company which produces measuring equipment and control system of cable production line. Including Laser gauge, CCD measuring system, Glass diameter measuring unit, Length measuring equipment, IPC and PLC control system, Cable cutting machinery, CCV line control system, we are very kind to corporate with you.
