Product Specifications
| Prod Model: |
SN-GM1-Z/09192P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| CE: |
CCC |
| Type: |
Elevator Door System |
Product Description
Elevator photocell:

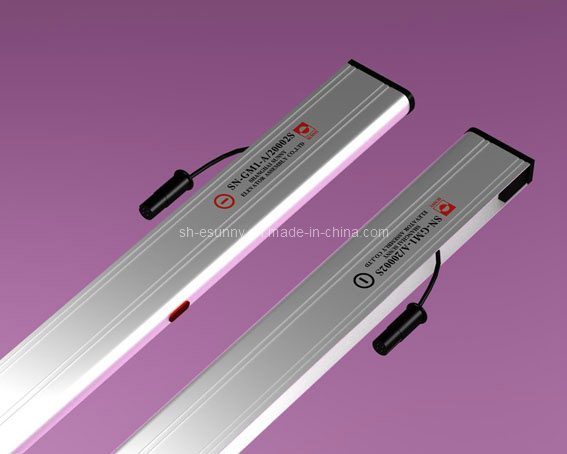

Elevator Light Curtain: SN-GM1-Z/09192P
Specifications
National patent product!
Specially for Hyundai Elevator
More than "can use" quality!
Much safer, much more reliable!
SUNNY infrared elevator door protection system (light curtain) can identify, indicate and control each single light beam of the curtain under high speed scanning.
The product, 2 pairs of diode inside with safety edge, specially assembles for Hyundai Elevator Shanghai.
SUNNY light curtain system obtained the National Invention Award of the People's Republic of China and has the national patent, No. 01105213.9. SUNNY is sole manufacture and supplier in China.
The price we provide is including safety edge accessory.
If you want to know more about our products, please visit our website.
Attention: The price below is NOT including safety edge.
| Model |
| 192P (V) | 320PG (V) | 384P (V) | 640PG (V) |
| No. of diodes | 64 | 64 | 128 | 128 |
| Max. beams | 192 | 320 | 384 | 640 |
| Min. beams | 192 | 192 | 384 | 384 |
| Distance between Two Diodes | emitter/ receiver 42/ 55 mm | emitter/ receiver 13/ 27 mm |
| Size | 1980 height x 30 width x 9/16/35 thickness mm
Hitachi/ Mitsubishi/ Toshiba 2 in 1 light curtain available |
| Light curtain Detecting Distance | 0~4.5 meters Customized to reach 20 meter |
| Light-proof | can work under the sunlight ≥100,000 lux |
| Installation Tolerance | Vertical ≤± 20mm, horizontal ≤ ± 10mm, angle ≤ ±7° |
| Working Temperature | -25°C~+65°C |
| IP | Ip33 circuit strip Ip63 controller box |
| Response Time | ≤80 ms |
| Cable Strength | 3C, 4.5M*2, 1 million times of life |
| EMC | En61000 GB/T17626 |
| Timeout Response | 25±5s Buzzer rouse |
| Power | ≤ 7.5 VA |
| Voltage Range | 85~264VAC 60/50Hz |
Shanghai Sunny Elevator Assembly Co., Ltd., founded in 1992, is a 20-year experienced professional manufacturer specializing in designing and producing opto-mechanical products. Our main products are elevator light curtain, photoelectric switches and elevator buttons. Our company has a complete set of equipment and instruments in terms of mechanism, sheet metal, plastics, moulding, electric appliance, together with SMT line, which are respectively used in key parts of production, assembling and quality detection. Such full range of equipments is rare in the field and greatly increases our production flexibility and R&D capabilities. Twenty years' experience in the elevator industry ensures us to provide our clients reliable products, leading-edge technology and perfect after-sales service.
Since 2001, Shanghai Sunny Elevator Assembly Co., Ltd. has won the title of "Shanghai High and New Technology Enterprise" for nine successive years. The light curtain SN-GM1 series products have passed the certifications of UL, CE and 3C, and light curtain core technology has obtained national invention patent ( NO. ZL01105213.9). We are also the first to pass the certification of light curtain 3C in China. Our level detecting, reflective and diffuse photoelectric switch products have also the certification of CE. Standardized, general and energy-saving door linkage mechanism has obtained national utility model patent. At the beginning of 2010, the invention of wireless infrared light curtain obtained national invention patent application, which proves that our company has stood in the worldwide forefront in the field of elevator light curtain technology.
Shanghai Sunny Elevator Assembly Co., Ltd. Has established friendly business relationships with worldwide elevator industry, and its products have been exported to over 50 countries in Middle East, Europe, South Asia, south America and north America. Looking into the future, we are full of confidence and will shoulder heavy responsibilities.
In the spirit of "Lasting Quality, Persistent Innovation, Credit Supreme", Shanghai Sunny provides service for all friends forever.
