Product Specifications
| Prod Model: |
CUS-1506-H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Zhengzhou China (Mainland) |
| Materials: |
Light Steel Frame and Sandwich Panel |
| Frame: |
Q235 |
| Drawing Design: |
Free |
| Size: |
Usually 20ft/40ft |
| Earthquake Resistance: |
Grade 10 |
| Application: |
Construction Site, School, Office, etc. |
| Installation: |
Under Our Engineer's Guidance |
| Certificate: |
CE/ISO9001/SGS/BV |
| Guarantee Period: |
25-40 Years |
| Material: |
Container |
| Usage: |
Workshop |
| Certification: |
SGS |
Product Description

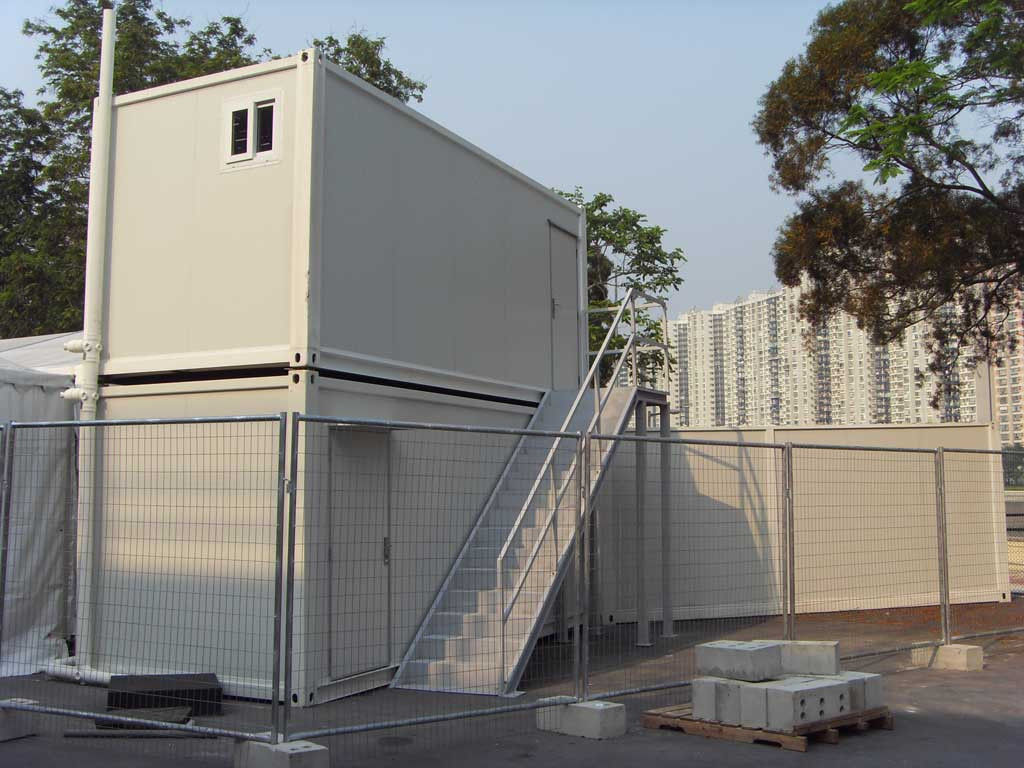

Two-double bevel roof house /Mobile Living House/Movable House
1. Introduction:
CUS STEEL light steel structure Prefabricated House is a kind of prefab house with the EPS color steel sandwich panel, rock wool, PU for the insulation. It can maximize customer require and satisfaction for the cost and quality. All the house parts are knock-down as flat package before loading container. We can provide the service of installation, supervision and training by extra.
2. Technical parameters:
Outside size: 5800mm*2300mm*2570mm
Inside size: 5620mm*2120mm*2280mm
Roof: 0.5mm color-bond steel sheet roof
Floor: 18mm plywood board& fiber-cement board+1.5~3.5mm vinyl sheet &15mm bamboo flooring
Window: UPVC double glass tilt& swing window with Alu. Roller shutter
External door: Steel security door
Internal door: UPVC internal door& Aluminum frame sandwich panel door
External wall panel: 50/60/75/100/150mm sandwich wall panel
Internal wall: 50/60/75mm sandwich wall panel
Ceiling: 50mm EPS& rock-wool sandwich ceiling panel
Electrical fittings: Wiring, power point, switch, light, circuit-breaker etc
Gutter: PVC gutter with down pipe.
3. Advantages of Mobile Living House/Movable House:
1)Safety: Steel bone structure, can prevent from wind and earth shock.
2)Durability: Outer steel sheet has the specialty of corrosion and acid resistance, it does not rust and crack easily, can be used more than 20 years.
3) Noise insulation
4)Beautiful and humanized design: Outside wall can be designed be elegant and colorful.
5)Beautiful appearance
6)Low cost, high quality and reasonable price
7)Easy installation & disassemble
8)Convenienct package delivery
9)Flexible size as customized request
4. Design technical data:
1) Wind load: 0.6KN/sqm
2) Roof dead load: 0.35KN/ sqm
3) Roof live load: 0.5KN/ sqm
4) Earthquake intensity: 8 grade
5) Location temperature: -25º C to 45º C
5. Installation and loading:
1)Install guidance, we send engineers to your site guide and train your workers;
2) You may send engineers here to study on how to build the house;
3)Install drawings provided by us together with pictures or video to show you how to build;
4)Installation efficiency: Four skilled labors can assemble 40sqm house body in 8 hours.
6. Transportation:
Every 40ft sea container may load 150-180sqm house body stuff.
7. Application of Mobile Living House/Movable House:
Mobile container house is widely used as the temporary building in field for road, railway, construction projects and the temporary buildings for urban municipal projects, commerce and other projects, such as: Office, meeting room, head quaters, dormitory and shop, school, temporary hospital, car park, exhibition center, maintenance department, power house, gas station and other temporary buildings: Such as military logistics buildings, disaster relief building, sterility laboratory, isolation building, communication and power transamination buildings, holiday villas, houses in tourist areas.
| Container house | Technical parameters |
| Configuration | 5.95*2.25*2.65m |
| Note |
| Flooring system | 15mm plywood
1.0mm Floor leather |
| Heat-insulation system | Topstrap is 50mm rock wool,underframe is 100mm rock wool |
| Protection system | 0.3mm color steel panel, 75mm EPS sandwich panel |
|
| Door system | Steel security door:750*2000mm(1pcs) |
| Window system | Double glass PVC window,75*1200mm(2 pcs) |
| Suspended ceiling | 0.3mm color steel panel |
| Steel coating | Environmental protection coating |
| Steel galvanization | Environmental protection coating,Steel galvanization |
| Electrical system | Meet the national standard, 4 sockets,1 switch,2 fluorescent lamp,
1 electrical control box,1 power supply socket. |
CUS-GROUP is an enterprise group which was established in 1998. It manufactures and distributes pre-painted steel coils, galvanized steel coil, cold roll-forming machinery, steel structure-based construction, metal roofing tiles, stone-coated metal roofing tiles, and building and decoration materials.
The company has several subsidiary companies and joint venture companies. Scope of the company has been extended to cover raw material supplies, productions, steel structure production and installation, technical and application researches. The products have passed through the ISO 9002 and 14001 quality assurance systems. Our company has been highly recognized as a contract-held, high creditability (AAA), and outstanding exportation company.
