Product Specifications
| Prod Model: |
MK Type |
| Markets: |
South America,Southeast Asia,Africa,Mid East |
| Core Material: |
EPS,Rock Wool,Glass Wool,etc |
| Size: |
as Per Customers |
| Material: |
Steel Structure |
| Usage: |
Offices, Classroom |
Product Description

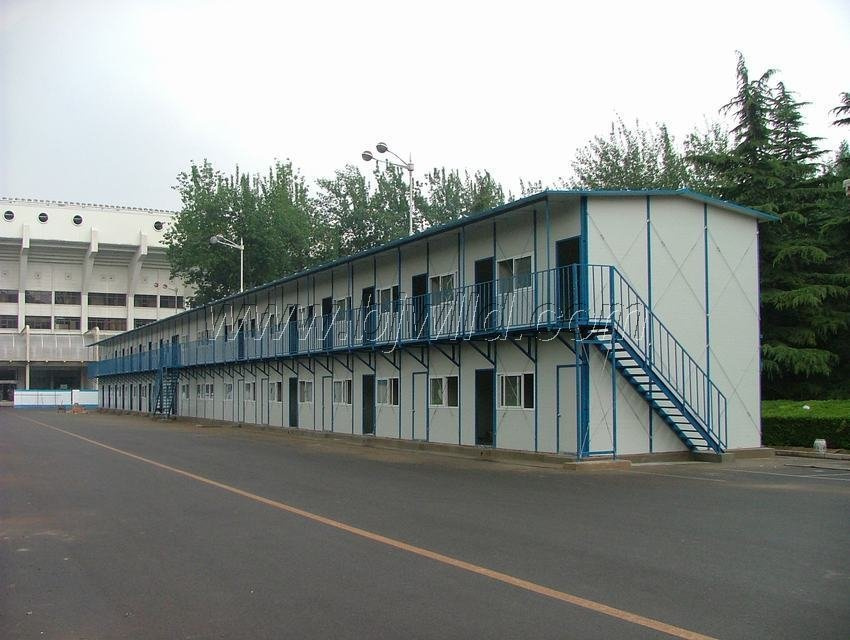

Modular house
1, Easy install and dismantle
2, Longevity and recyclable
3, Light steel stucture frame
4, Water and fire-proofing
5, Warm-keeping
Feature:
Modular K type house is a modular house which width and length can be extended by adding number of 1820mm unit.The heat insulated material can be EPS or other sandwich panel.
All the components are standard and prefabricated with the advantage of assembling and disassembling easily.
Eight skilled workers can finish 100m2 in 8 hours.
One 40HQ container can load about 250m2 house body materials.
Waterproof design of steel structure, heat insulation material ensures the house to resist heavy wind load of 0.45KN/m2 and 7 degree seismic intensity.
All the components are standard and prefabricated with the advantage of assembling and disassembling easily.
The life span of the house is 15 years.
House applications
Used for temporary office, dormitory, classrooms, meeting room, warehouse, shops etc. In construction industry, government purchase for residence, military housing and other purpose
Low cost, durable structure, convenient relocation, easy to assemble and disassemble, environment-protection, etc.
Structure is reliable: Light steel structure system is safe and reliable, satisfied modern architecture concept.
Easy assembly and disassembly: The house can be assembled and disassembled many times, used repeatedly. It just need simple tools to assemble. Each worker can assemble 20-30square meters every day. 6 worker can finish 300sqm prefab house in 2 days.
Beautiful decoration: The prefab house is beautiful and grace, have bright and bland color, flat and neat board, with good decoration effect.
Flexible layout: Door and window can be assembled in any position, partition wall panel can be assemble in any transverse axes sites. Stair is assembled in outside.
Using life: All the light steel structures have antisepsis-spraying treatment. The normal using age are above 15 years.
Environmental protection and economy: Prefab house design is reasonable, easy to assemble and disassemble, used circularly, low wastage, without building rubbish. Average using cost is less than other kinds of building annually.
|
No. |
Classify |
Name |
Technical Parameter |
|
1 |
Size |
Length |
NK+160(n=4,5,6…) K is modular(1K=1820mm) |
|
2 |
Width |
2K≤Width≤6K, K is modular(1K=1820mm) |
|
3 |
Wall Height |
single floor height less than 6K |
|
4 |
Roof Slope |
1:10, 1:5 |
|
5 |
Interior Net Height |
≥2780mm(not include false ceiling size) |
|
6 |
Floor |
≤3 floors |
|
7 |
Standard |
Ground Beam |
C80# profiled steel |
|
8 |
Post |
double C80# profiled steel |
|
9 |
Roof Beam |
Herringbone Trussed Beam (jointing by C80# profiled steel) |
|
10 |
Roof Purlin |
40# angle iron |
|
11 |
Wall Panel |
50, 75mm thickness double color steel sandwich panel |
|
12 |
Roof Panel |
50, 75, 100mm thickness double color steel sandwich panel |
|
13 |
Exterior Door |
Steel frame sandwich panel door,szie:820mm*2000mm |
|
14 |
Interior Door |
Sandwich panel door,size:750*2000mm |
|
15 |
Window |
PVC sliding window,size:1740mm*925mm |
|
16 |
Floor |
15mm thickness plywood |
|
17 |
Options |
Flase Ceiling |
mineral wool acoustic panel,aluminium buckle panel |
|
18 |
Window |
PVC casement window,PVC top hung window,aluminium sliding window,aluminium alloy casement window,blind window |
|
19 |
Door |
Single opening security door,size:900mm*2100mm;
double opening security door,size:1740mm*2100mm;compound wooden door |
|
20 |
Interior Electrical |
supply plan,design and construction |
|
21 |
Water Plumbing & Sanitary |
supply plan,design and construction |
|
22 |
Floor |
15mm bamboo panel,building templet board |
|
23 |
Floor Decoration Material |
Ceramic tiles,PVC floor, compound wooden floor |
|
24 |
Frame |
Roof Dead Load |
30kg/Sqm |
|
25 |
Roof Live Load |
50kg/Sqm |
|
26 |
Floor Dead Load |
50kg/Sqm |
|
27 |
Floor Live Load |
200kg/Sqm |
|
28 |
Wind Resistance |
11 degree (105km/h) |
|
29 |
Fireproof Degree |
Maintenance wall panel is nonflammable material,B1 degree;
Floor plywood could reach B1 degree after making fireproof process. |
|
30 |
Earthquake resistant intensity |
7degree |
Beijing WLLD Prefabricated House Co., Ltd. Specialized in designing and manufacturing Modular Building, prefabricated house, container house and remote camp program field in China. It was established in 2007 by one expertised group of professional business persons.
In WLLD, both senior management persons and technical staffs are all from prefabricated house filed and all of them have five or ten years professonal experience in this field. We believe that we can provide you our products with good quality, competitive price and our best service.
WLLD can design and manufacture several types of prefabricated houses. These houses can be designed to meet different requirements. Our various types of prefabricated houses includes MA series, MK series, PA series, PB series, pH series and Container Series.
One of domestic new production-line of color steel Phenolic resin sandwich panel make WLLD much more competitive. Phenolic material is an excellent lightweight material with the character of fireproof, energy saving, heat and sound insulation. It could be widely used in prefabricated house. In recent years, lots of countries have special requirements in fireproof, the new material Phenolic resin sandwich panel come in for a great deal of attention, it is becoming more and more popular in many countries.
With the modern factory located in Beijing which cover 40, 000sqm area, WLLD has the capability to manufacture 50, 000 sqm Prefabricated House and 50, 000 sqm Phenolic sandwich panel per month.
WLLD is growing very fast even it is a young company. During four years, the company has successfully participated in Wenchuan earthquake relief project, the 2008 Beijing Olympic Games project and the 60th anniversary military parade village construction project.
WLLD will begining to open up overseas markets and with an experienced team, we would like to grasp every cooperation opportunity and we are willing to establish long-term business relationship with our foreign clients by supplying you our products with our best service.
