Two-Wire 4~20mA Isolation Transmitter

Product Specifications

Prod Model:	JSD MI 4-20mA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Temperature Range:	-45 ~ +85 ºC
High Linearity:	(Non-Linearity <0.1%)
High Accuracy:	0.1%, 0.2%;
Wide Range Voltage Input:	7.5 ~ 32VDC

Product Description

4~20mA isolation moduleSelection example:
example1: signal input:4~20mA;signal output:4~20mA;model NO:JSD MI 4-20mA

4~20mA passive isolation amplifier module General Description:

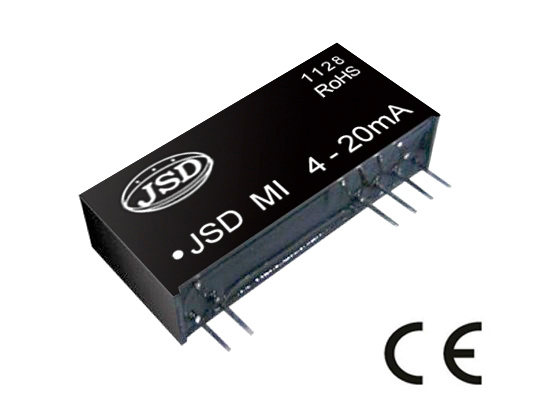

Jie Shengda Technology JSD MI 4~20mA isolation amplifier is a current loop isolated module, the isolator module is two -wire isolated interface design, the front input 4~20mA, the backend output 4~20mA, and no working power supply to achieve 4~20mA standard signal with high accuracy and linearity isolation.to achieve signal long-distance transmission without distortion . Product isolation voltage is up to 3KVDC between input and output.JSD MI 4~20mAseries products very easy to use ,without any external components to achieve 4 ~ 20mA current loop isolation transmitter function.
Jie Shengda Technology JSD MI 4~20mA isolation amplifier have PCB board soldering and standard DIN 35mm rail slot fixed , rail mounting can be achieved analog signal one in one out, two in two out, three in three out,four in four out,users only need wiring can be used.
Jie Shengda Technology JSD MI 4 ~ 20mA series isolation amplifier products are easy to use, without external components can be realize industrial field signal isolation and conversion function, and to achieve signal long-distance lossless transmission. The products simplify the users' design, greatly improving the PCB board space utilization.
Two-wire 4~20mA isolation transmitter module Features:
low cost, small size, SIP package with UL94-V0 flame retardant standard
Three-port isolation()
3000VDC isolation voltage between input, output and power supply
Operation requires no external power supply, no external components
4 ~ 20mA input/4 ~ 20mA output
Industrial temperature range: -45 ~ +85 ºC
High accuracy: 0.1%, 0.2%;
High linearity (non-linearity <0.1%)
Wide range voltage input (7.5 ~ 32VDC)
low impedance (voltage drop <3V)
4~20mA passive isolation amplifier module Application:
Analog signal data isolation,acquisition
Industrial field signal isolation
Long-distance lossless transmission
Analog signal ground interference suppression
4 ~ 20mA isolated signal transmission
instrumentation and sensor signal transceiver
Transducer , large generators, equipment EMC interference suppression

Applications:
analog signal data isolation, acquisition
industrial field signal isolation
Remote long-distance transmission without distortion
analog signal ground interference suppression
4 ~ 20mA isolated signal transmission
instrumentation and sensor signal transceiver
power monitoring, medical equipment isolation barrier
The inverter ,large generators ,equipment EMC interference suppression

Notes:
1,Please read the user manual carefully before using. If any question please contact our technical support department.
2,Please do not use this product in hazardous area. The power supply of this product should be 24VDC power source. It is forbidden to use 220VAC power supply.
3,Calculating from the date of delivery, during normal use of the product, any quality problems are free repair or replacement by Company during 3 years warranty,
4,To avoid invalid, or any failure, users disassemble this product is forbidden
5,the product is strictly forbidden demolish without permission for not damage
6,All specifications measured at Ta=25°C, humidity<75%, nominal input voltage and rated output load unless otherwise specified.
7,In this datasheet, all the test methods of indications are based on corporate standards
