Product Specifications
| Prod Model: |
TY850 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Ty850 |
| Plastering Thickness: |
2-30mm |
| Plastering Height: |
up to 4m |
| Efficiency: |
500m2/8h |
| Overall Size: |
1000*850*520mm |
| Power: |
2.2kw |
| Weight: |
160kg |
| Voltage: |
220V |

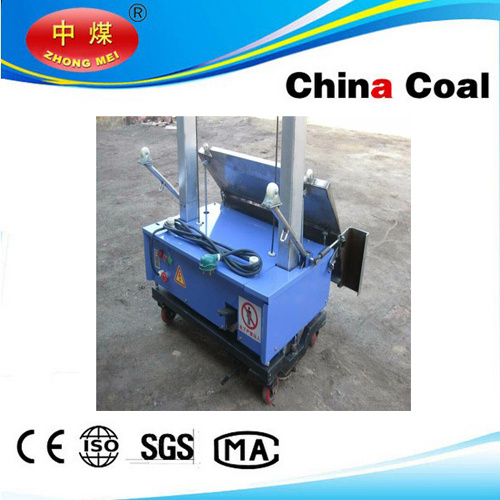

Product Description
Functions and characteristics of wipe wall machine:
1, You can wipe the ceiling, plaster realize the window up and down. The machines use up the
ash conveyor transporting the way forward, you can use the conveyor belt completely wipe the
top (1 mm nor stay). Conveyor can be stopped or hand control for gray achieve a window up
and down, the plaster above the door in any position (Note: You must be a distance of at least
50cm on the doors and windows, as 45cm from the top of the conveyor automatically stops for gray),
can be due to fill shortage caused by the wall of gray ash up after missing the second wiping,
you can also send ash intermittent to reduce the rise during ash fall.
2, Wipe out the walls smooth. Use can change the angle of the wipe board, a large increase in wall
angle wipe down with a small angle cut even wall calender, to achieve the original underground
machine, the only way to ensure zero error wiped out vertically and completely wipe the top.
3, The machine can be quickly fixed. Using hydraulic telescopic rod, Dingding, top places, it can be
fixed within ten seconds a good machine, but the chassis from power, move the machine just like to
put the jack as liberalized, the main bar by gravity down, foot automatic lift this way is the fastest,
most secure.
4, Unique design. According to suite door wiping plate width (80cm) design, the fuselage width than
3cm free access in the outhouse, convex corner fully in place.
5, Behind wipe board is equipped with two mini vibrators, you do not need to worry about hollowing
wall and grab power.
6, The machine assembly through sealed casters, you can easily move.
7, Fully mimic artificial cleverly designed. Wipe board and plaster walls forming an angle behind the
wiping plate with two vibrators, vibrator when rising open simultaneously with the conveyor, conveyor
fed a steady stream of ash wipe the mouth, the conveyor automatically stops for the time from the top
45cm gray, because by calculating, wipe the mouth of the ash has enough to wipe the top, wipe board
automatically change the angle, automatically or manually to the whereabouts of the ceiling, in the end
the automatic shutdown.
| Model (rack type) | TY850 | Plaster thickness | 2-30mm |
| Plaster height | Up to 4m | Efficiency | 500m2/8h |
| Overall size | 1000*850*520mm | Voltage | 220v |
| Weight | 160kg | Power | 2.2kw |
