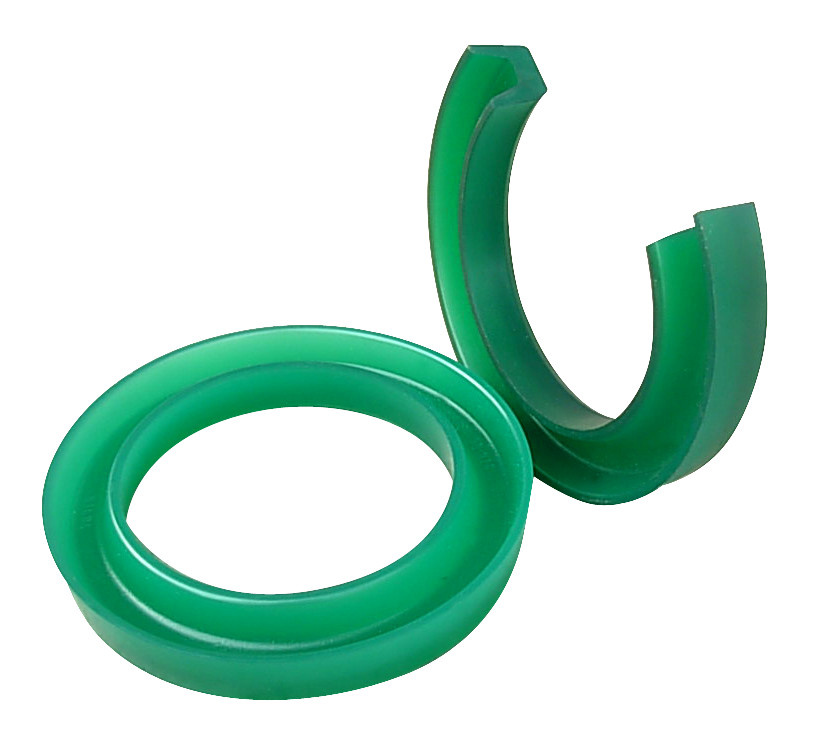

Type UI of Sealing Components

Name: Type UI of Sealing Components
Brand: China-Manufacturer-Directory.com
SKU: 685710262
Availability: InStock
Rating: 4.7 (122 reviews)

Supplier:	Beijing Jianke Huifeng Science and Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	50/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	U4.5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Style:	Sealing Strip
Shape (for Gasket):	Ring Gasket
Function:	Fixed Sealing
Application:	Equipment Seal Hydroseal Auxiliary Seal
Standard:	Standard
Material:	PU

Product Description

Performance and Purpose:
It makes use of the advantage of Polyurethane, such as high strength, hardness, good elasticity and high-wearing feature. The type U of sealing component is used in the hydraulic testing of oil well casing tube, steel pipe and a variety of welded steel pipes of the Petroleum and Natural Gas Industry.
Working conditions:
According with several standards about hydraulic testing requirements: Such as API 5CT/ISO11960: 2011, GB/T9711.1-2011, GB/T9711.2-2011, etc. For Petroleum and natural gas industries— Steel pipes for casing or tubing; GB8163 - 2008 for seamless steel tubes; GB/T3092-2008 for welded steel pipes.
Working pressure: ≤ 80 MPa
Working temperature: -20degrees Celsius~+80 degrees Celsius;
Working medium: Water, emulsion, hydraulic oil;
Material: Polyurethane
Design standards: Refer to GB/T3672.1-2002 tolerance.
Sample for ordering sign: Marked the type, size and order No. Of the sealing components, Order No. Only is also permitted.
Type Order No.
Example: U101, U109

Order No.	Model	Diameter	Sealing ring dimensions
Order No.	Model	Diameter	A	B	C	D	H
U101	U4.5	114.3	115.4	112.7	188.8	192	31.7
U102	U5	127	128.4	125.7	217.5	220.6	31.7
U103	U5.24	133.1	134	131.6	188.8	192	31.7
U104	U5.5	139.7	140.8	137.8	217.5	221.6	31.7
U105	U5.75	146.05	147.3	144.1	217.5	221.6	31.7
U106	U6.05	153.7	154.5	151.6	217	221.6	31.7
U107	U6.26	159	160.8	157	217.5	221.6	31.7
U108	U6.625	168.28	169.4	165.9	217.5	221.6	31.7
U109	U7	177.8	177.8	175.5	252.4	255.6	31.7
U126	U7.421	188.5	190.2	184.6	252.4	255.6	31.7
U125	U7.390	187.71	189.4	185.35	252.4	255.6	31.7
U110	U7.625	193.7	193.7	191.9	252.4	255.6	31.7
U111	U7.656	194.5	196.2	192.2	252.4	255.6	31.7
U127	U7.736	196.5	198.2	194.2	252.4	255.6	31.7
U112	U7.875	200	201.7	197.7	252.4	255.6	31.7
U113	U8.125	206.38	208	204.3	294.4	298	31.7
U114	U8.5	215.9	217.8	213.7	294.4	298	31.7
U115	U8.625	219.5	221	217.1	295.3	298	31.7
U116	U9.134	232	234	230	295.3	298	31.7
U117	U9.625	244.5	246.6	242	322.3	325.4	31.7
U128	U9.721	246.92	248.8	243.9	322.3	325.4	31.7
U118	U9.843	250	251.7	247	322.3	325.4	31.7
U133	U10.25	260.35	262.2	257.7	322.3	325.4	31.7
U119	U10.625	269.9	272.2	267.4	322.3	325.4	31.7
U120	U10.748	273	275.3	270	322.3	325.4	31.7
U121	U10.75	273.05	275.3	270.6	353.4	356.5	31.7
U129	U11.125	282.58	284.9	280	353.4	356.5	31.7
U122	U11.75	298.5	300.9	295.9	353.4	356.5	31.7
U130	U12.835	326	328.4	322.2	423.4	426.6	31.7
U123	U13.375	339.725	342.4	335.9	423.4	426.6	31.7
U131	U13.625	346	348.3	342	423.4	426.6	31.7
U124	U14.375	365.125	367.4	361.3	423.4	426.6	31.7

Beijing JIANKE HUIFENG SCIENCE & TECHNOLOGY Co., Ltd. "(Registered trade mark)is a science and technology manufacturer, specialized in developing, producing and selling the ultrahigh-pressure sealing components for steel pipe hydrostatic testing machine.
Since 1992, we have been concentrating on the development and manufacturing of sealing components for hydrostatic testing machine. And we have the strong professional research development team and excellent after-sales service team. The products have been awarded many national patents (Patent No.: 012198439, ZL02 2 94523.7, ZL2011 02 0243967.4) and the products meet hydrostatic testing requirements: such as the standard of API Spec 5CT/ISO11960: 2011 for. The products are famous for its stable and durable performance and wildly used in domestic and Southeast Asian countries. Moreover, it is listed as Class A vendor by "Tianjin Pipe (Group) Corporation".
The company also established a long-term partner relationship with more than ten major hydrostatic testing machine designing company and units to develop and produce many kinds of sealing products to meet their equipment.
The company's "Quality target" is: to meet customer's demand and achieve win-
win with superior quality, high efficiency, and continuous improvement.
In 2002, the company got approval of ISO 9001: 2008(GB/T19001-2008/ISO9001: 2008) with registered No.: 04312Q20554R2S.

We understand our customers, we care about the future of our business. We want to ensure that you get our good service, not only high quality and speedy delivery.
