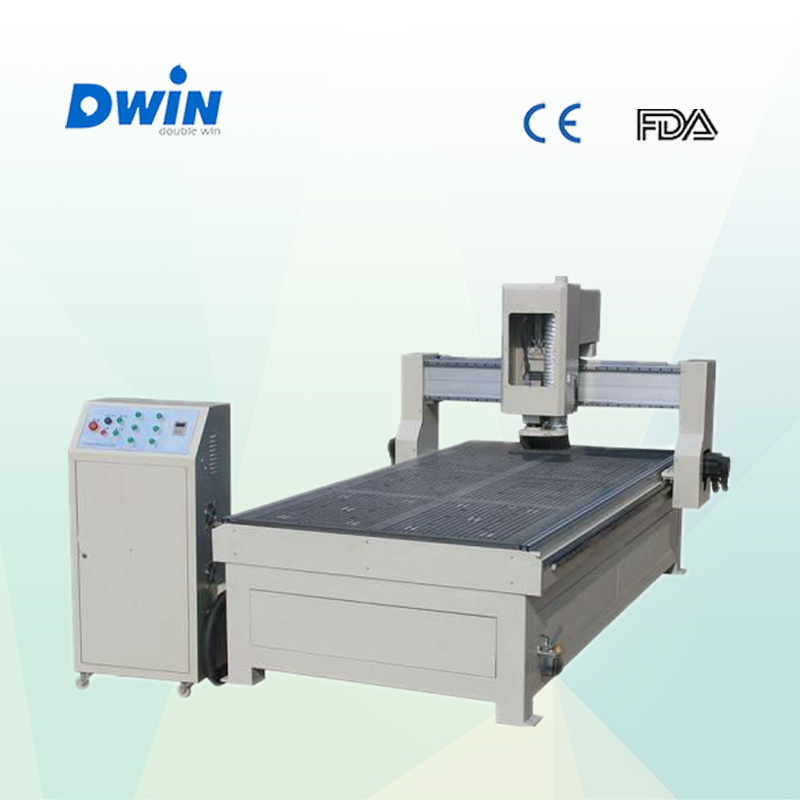

Type3 Software Advertising Design CNC Router

Product Specifications

Prod Model:	DW1325
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Control Method:	CNC
Optional Control System:	DSP
Spindle Power:	2.2kw Water Cooling
OEM:	Accepted
Spindle Layout:	Vertical
Spindle Number:	Single-Spindle
Feed Mode:	Manual
Controlling Mode:	CNC
Certification:	CE

Product Description

This  Advertising Design CNC Router use type3 as software, and use material holder to fix the materials, like wood, acrylic and other advertising materails. This machine is controlled by computer, but we can make it use DSP control, it is easy to handle.

Type3 Software Advertising Design CNC Router

Advantage Features:

1).Welded structure by thick profiled steel stabilized under high temperature, ensures minimum distortion, excellent rigidity and powerful strength.
2).Machine is mainly assembled with precise parts. Japanese YAKSAWA servo motor or China stepper motor make machine stable running with low noise, high speed and high accuracy. Italy HSD spindle or China                  made make machine with high precision and long service time and stable movement. Tool sensor enables the machine compensate the tolerance of the tool length.
3)Vacuum working table with double cavities and Bakelite material with high absorption power.
4)Imported control system, separated keyboard control, color LCD display  and DSP add machine more versatility.
5).Strong dust collector ensures site cleanliness during the machine operation.
6)Auto lubricating system, one touch can finish periodic maintenance easily.

 Application:
 1.Mainly used for woodworking industry, door, cabinets, kitchen utensils, chairs, decoration business, mould industry, wood panel, wave board processing,  MDF sheet carving, screen, calligraphy tablet design , relief, wood furniture, computer tables, panel furniture, office furniture, instrument industry, and so on.
2.Also can for advertising signs, acrylic brands, 3D characters, garden or wall decoration, logo, forming system module, billboard, plate, LED/neon channel, literal-hole cut, blister Light box mold

Technical parameters:

Technical parameters
Model	DW-1325 cnc router
Working area	1300x2500mm
Table size	1500X2750mm
Table structure	T-slot table (vacuum optional)
Working accuracy	0.05mm
Repositioning accuracy	0.05mm
Transmission	X and Y by rack and pinion, and Z by screw
Max. No-load speed	17m/min
Max. Working speed	12m/min
Spindle power	3.0KW/4.5KW
Spindle speed	0-24000RPM
Power supply	AC220V/50-60Hz
Command	G code/mmg/plt/
Controlling system	Mach3/ DSP, etc
Dimension	1700*3100*1500mm
Total weight	Approx. 1000kg

Dwin kindly tips:
All the parts of machine can do some changes to meet your requirements.
1.motor (step motor or servo motor optional)
2.spindle (air cooled or water-cooled optional )
3.guide rail (round guide rail or square linear guide optional )
4.the table of the machine (Vacuum table,T-shot table,Combination of T-shot &Vacuum table,Normal table,Table moving)

Guarantee & after sale service :
 1) Guarantee for 1.5 years
2) Free training to make sure you master the operating of cnc router (on internet or by telephone)
3) 24hour technical supporton Internet or by Telephone, free instructions and problem solving
4) Video CD for machine using and maintaining

Professional Service
From producing in our factory to shipping the goods directly to your port or company, we supply all-inone service for our customers.
With the rich experience of dealing with shipping issue and custom clearance, we can make the most economical delivery plan for you and ensure the quick leading time.
No matter your quantity is our MOQ or very big, we take each customer as the only one.
