Hebei Shenli Rigging Co., Ltd. >> U. S. Type Bow Shackle with Screw Pin

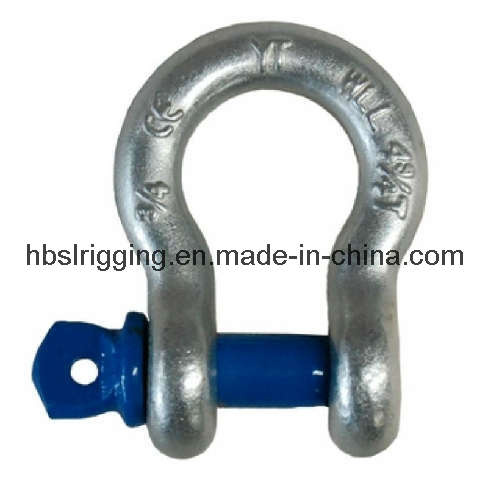

U. S. Type Bow Shackle with Screw Pin

Name: U. S. Type Bow Shackle with Screw Pin
Brand: china-manufacturer-directory.com
SKU: 700045065
Availability: InStock
Rating: 4.6 (106 reviews)

Supplier:	Hebei Shenli Rigging Co., Ltd.
Price:	Negotiable/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	G209 bow shackle
Markets:	North America,Southeast Asia,Africa,Mid East,Western Europe
Product Name:	Us Type G209 Bow Shackle with Screw Pin
Model Number:	G209 Us Type Bow Shackle
Surface Treatment:	Galvanized & Color Paint
Processing:	Drop-Forged and Heat-Treated

Product Description

G209 U. S. Type Bow Sahckle with screw pin

Lifting shackle

Load Capacity: 0.33t to 55t

Size: 3/16'' to 3-1/2''

B. L. =4*WLL

Standard: US type bow shackle

Processing: Drop-forged/heat-treated and E-galvanized, HDP galvanized, color painted

Grade: 80 and 100 G209 bow shackel

Delivery: 1-45days

The sample of bow shackle are available

Packing: Inner packed by plastic bag, Outer packed by cartons on steel pallets or as consumers' requirements

OEM parts or special specific and marks on bow shackle are available

Hebei Shenli Group, founded in 2000, is a large modern enterprise specialized in manufactureing rigging hardware, such as a variety of shackle, a series of hooks and all kinds of link rings etc. We have a group of engineers with rich experience. Our price is very competitive because we are manufactory, we are the source.

Should any kinds of anchor shackle be of interest to you, please let us know, We will be happy to give you details.

Bow Shackle with Screw Pin US Type G209
SPECIFICATION	WLL/T	B. L/T	WEIGHT/KG
3/16"	0.33	1.32	0.03
1/4"	0.5	2	0.05
5/6"	0.75	3	0.09
3/8"	1	4	0.14
7/16"	1.5	6	0.17
1/2"	2	8	0.66
5/8"	3.25	13	0.92
3/4"	4.75	19	1.07
7/8"	6.5	26	1.64
1"	8.5	34	2.28
1-1/8"	9.5	38	3.36
1-1/4"	12	48	4.31
1-3/8"	13.5	54	6.14
1-1/2"	17	68	7.8
1-3/4"	25	100	12.6
2"	35	140	20.41
2-1/2"	55	220	38.9
Other size of bow shackle can be manufactured according to the quantity
Professional product anchor shackles

Our products mainly consist of:Forged riggings, hoisting pulley block, clevis hooks, eye hooks, safety hooks, swivel hooks, shackles and so on.With the passed 10 years of hard work and pursuit of better quality, we have promoted strength to the competition of quality, service and the image of the company, which has made a strong basis for our long-term development.

Shenli sincerely wishes to cooperate & communicate with new clients & old friends;We will provide perfect service for clients following our philosophy "Sincerity is base, customers are primacy".
