Product Specifications
| Prod Model: |
JC409M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Maximum Pixels: |
<1 Million |
| Optical Zoom: |
Without Optical Zoom |
| Image Sensor: |
CMOS |
| Type: |
Digital |

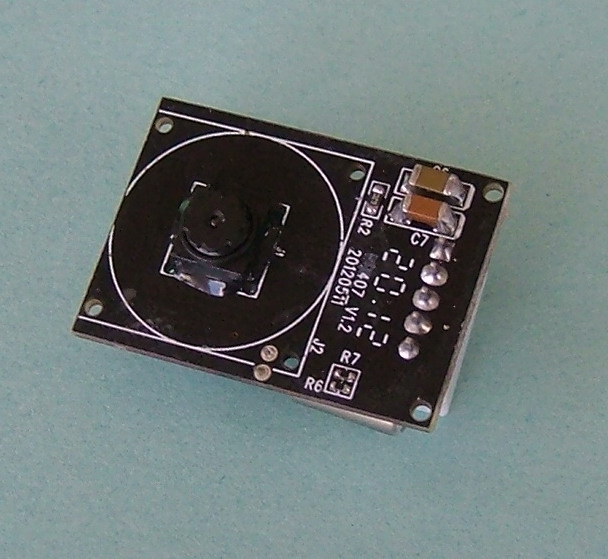

Product Description
Feature
1. Small in size: 28mm x 20mm (L x W).
2. 0.3M CMOS sensor, VGA resolution, down sample to QVGA.
3. Video-out: VGA & 60fps, optional.
4. Low power consumption, 3.3V operation.
5. UART interface support up to 115.2Kbps.
6. Built-in JPEG CODE.
7. Built-in lens, optional.
Item Specification Remark
Pixel Size PAL: 628 x 582 / NTSC: 510 x 492 NTSC default
Image Sensor 1/5" CMOS sensor OV7740
Baud Rate 9.6Kbps~115.2Kbps 38.4Kbps default
Output TTL
Video Output VGA & 60fps 1Vp-p
Operating Voltage 3.3V± 10%
Working Current 110 mA
Lens Construction: 4P+IR filter
Effective Focal Length: 3.27mm
F#: 2.5
FOV: 58°
Distortion < 1.0%
Relative illumination: 60%? 3.44
Operating Temp. -20° C~+60° C
