Product Specifications
| Prod Model: |
CD-X1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Two Way Radio CD-X1 |
| Battery: |
1500mAh High Capacity Lithium Battery |
| OEM: |
Accept |
| Range: |
3-5km |
| Size: |
109*54*30mm |
| LCD: |
Yes |
| Certification: |
SGS |
| Style: |
Handheld |
| Talk Range: |
8km Max |
| Battery Type: |
Lithium Battery |
| Type: |
Handheld |
| Display: |
With Display |
| Working Frequency Range: |
UHF Segment |
| Usage: |
Home, Commercial, Army |
Product Description

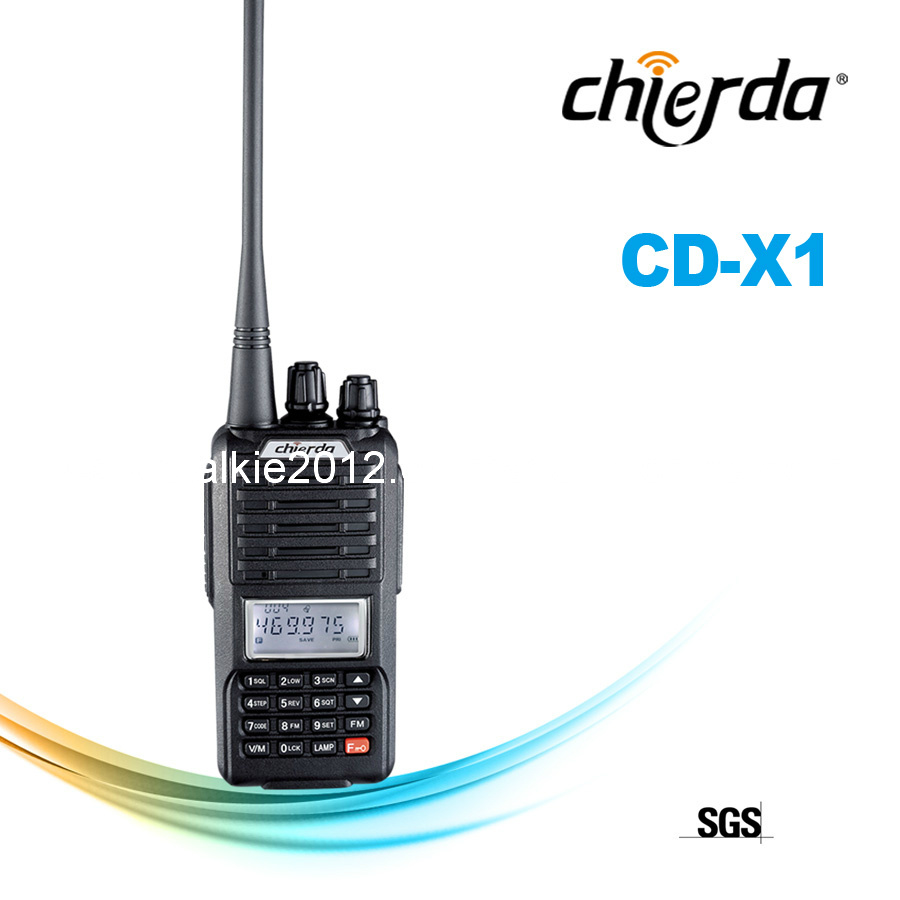

UHF 400-470MHz Ham Radio (CD-X1)
Two way radio antenna Important functions
1. Full band radio
2. VOX function
3. CTCSS/DCS
4. Low battery capacity warning
5. Sound Indication for Channel Number
6. FM Radio
7. Off Set Frequency: (VHF: 00.000-37.995MHz), (UHF: 00.000-69.995MHz)
8. Busy Channel Lock Out
9. Password Input
Standard Package Contains:
1 Radio, 1 Battery, 1 Antenna, 1 Charger, 1 Belt Clip, 1 User's Manual
Note:
1. Please contact us at first time for bulk order, larger discount waits for you
2. Please be responsible for custom tax if your local custom charge some custom tax.
3. OEM service is offered, we can design packing box and logo mark as your requirement.
4. Sample time: If with our logo, within 5 days.
5. MOQ: 2 for sample; 100 for mass production; 500 for OEM
6. Payment term: T/T, Western Union and PayPal
7. Warranty Information: 12 months for body radio; 6 months for accessories.
About us:
We do our best to produce excellent quality products and services. We hope we help you and are glad to become your faithful friends.
Shipment:
For fast delivery, usually bulk goods are shipped by DHL, UPS, FedEx, EMS etc, and large quantities depend on Customer request.
UHF 400-470MHz Ham Radio (CD-X1)
|
General Index |
Model: Radio CD-X1 |
|
Frequency Range |
136-174MHz |
|
400-470MHz |
|
Rated Voltage |
DC 7.2V |
|
Memory Channel |
128 |
|
Channel Spacing |
12.5KHz/25KHz |
|
Frequency Sensitivity |
± 2.5PPM |
|
Antenna Impedance |
50Ω |
|
Dimension |
109*54*30mm |
|
|
|
TRANSMITTER |
|
Output Power |
5W/1W |
|
Current |
≤ 1.5A |
|
Modulation Distortion |
< 5% (300-3000Hz) |
|
Maximum Frequency Deviation |
< 5kHz / < 2.5kHz |
|
CTCSS Frequency Deviation |
0.75KHz± 50Hz |
|
Spurious Radiation |
≤ 7uW |
|
Modulation Mode |
FM(16KΦ F3E/11KΦ F3E) |
|
Remanent Radiation |
≤ -35dB |
|
|
|
RECEIVER |
|
RF Sensitivity |
0.20uV |
|
Silent Sensitivity |
0.2uV |
|
Audio Frequency Power |
≥ 500mW |
|
Audio Distortion |
< 5% |
|
Spurious Rejection |
≥ 65dB |
|
Adjacent Channel Selectivity |
≥ 60dB ≥ 70dB |
|
Note: Specifications is adjusted for technology improvement. |
|
Excuse for no further notice. |
