Product Specifications
| Prod Model: |
TM-UF1 |
| Markets: |
North America,South America,Eastern Europe,Western Europe |
| Signal Transmission: |
Wireless |
| Application: |
Stage |
| Directivity: |
Uni-direction |
| Transducer Principle: |
Electrodynamic Microphone |
| Sound Field Force: |
Combined Type |
Product Description

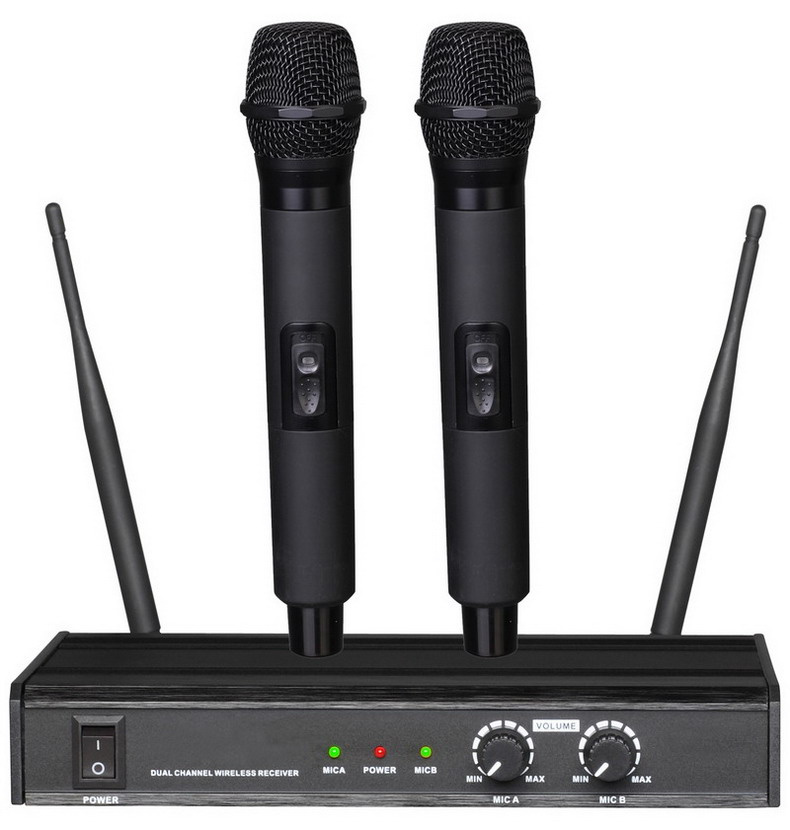

Dual channel fixed frequency wireless microphone
Working at UHF band (600-865MHz)
Smart handheld microphone and half rack size aluminum receiver.
Reliable SMT technology
Dual filter design makes better anti-interference ability
External TNC rubber antenna
High performance capsule
Each channel has individual volume control.
Balanced and line output available.
Specification:
Carrier Frequency: UHF600-865MHz
Audio Frequency Response: 40Hz-15 kHz ± 3dB
Dynamic Range: >100dB
THD: <1.0%
S/N Ratio: >85dB
Working Range: >100m
Transmitter
Max. Transmission Power: 9 mW
Max. Deviation: ± 40 kHz
Battery: 3V (1.5V AA X2)
Continuous Working Time: Up to 8 hours
Receiver
Power Supply: . DC 12V/ 800mA
Power Consumption: 9W
Receiving Sensitivity: 22dBuV
