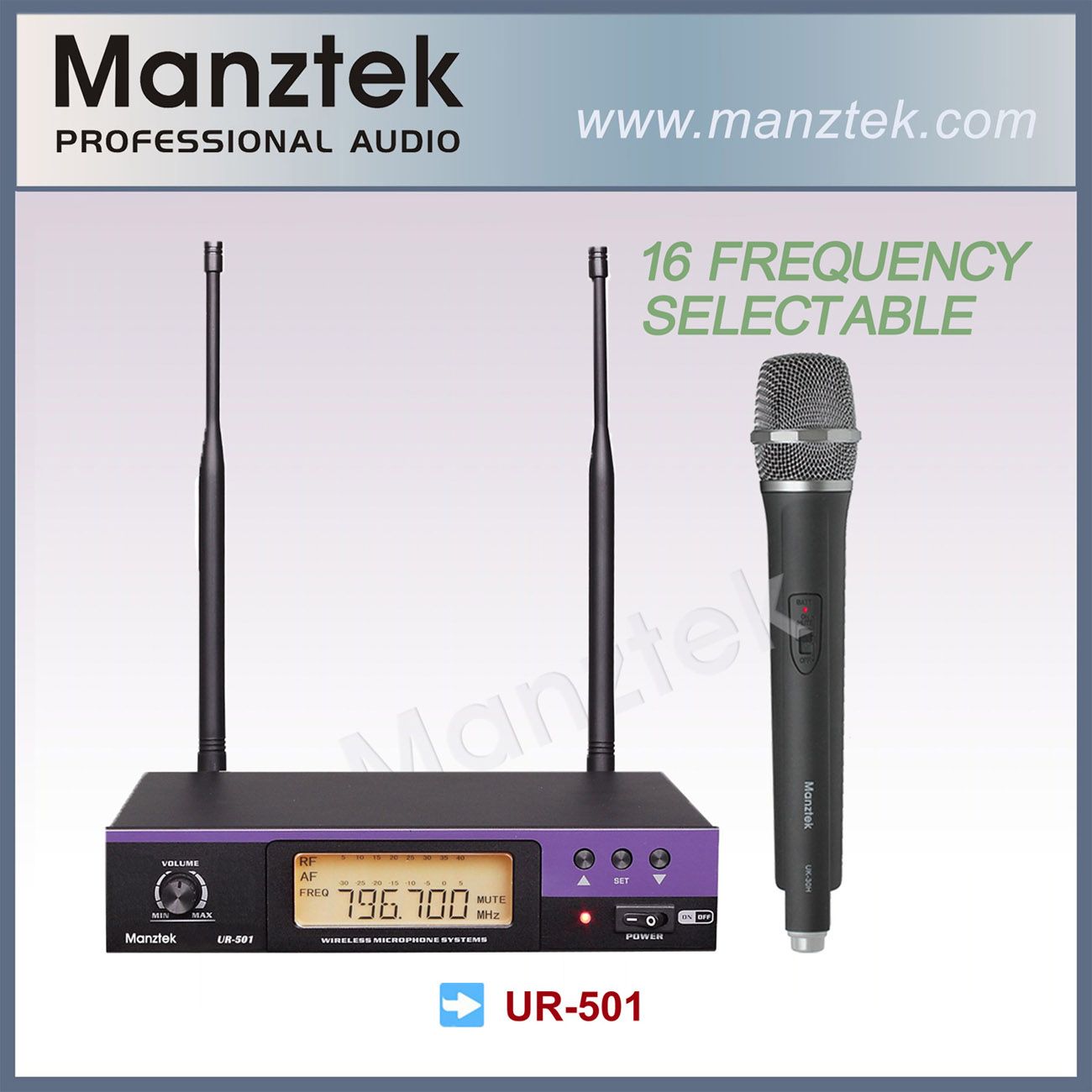

UHF Frequency Selectable Wireless Microphone (UR-501)

Name: UHF Frequency Selectable Wireless Microphone (UR-501)
Brand: china-manufacturer-directory.com
SKU: 719150895
Availability: InStock
Rating: 4.7 (34 reviews)

Supplier:	Enping Jinjue Electronic Co., Ltd.
Price:	Negotiable/Piece
Min Order:	200/Set
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	UR-501
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Eastern Asia,Western Europe
Microphone Tube Material:	Plastic
Signal Transmission:	Wireless
Application:	Meeting
Directivity:	Uni-direction
Transducer Principle:	Electrodynamic Microphone
Sound Field Force:	Pressure Type

Product Description

UHF Band, PLL Synthesized, 16 Frequencies selectable
Excellent Quality and Professional Performance
Reliable SMT Production Technics
Smart LCD Display on Receiver
Optional Battery Charger for Transmitters

SYSTEM SPECIFICATION

Modulation Mode	Frequency Modulated
Oscillation	PLL Synthesized
Carrier Frequency Range	UHF 650~860MHz
Channels	Single Channels,16 Frequencies selectable
Frequency response	75Hz~15kHz ± 3dB
Max. Deviation Range	±50kHz
T.H.D.	< 1.0% @ 1kHz
S/N	>95dB
Working Range	Up to 80m
RF Carrier Stability	±0.01% (-10C-50C)
Receiver Main Frame Size	1/2 19" EIA Standard 1-Rack Unit
Receiver Power Supply	DC12V, 600mA

HANDHELD / BODY-PACK TRANSMITTER

Carrier Frequency Range	UHF 650~860MHz
Carrier Frequency Power	< 30mw
Sound Cartridge	Dynamic (Handheld) Condenser (Body-pack)
Frequency response	75Hz~15kHz ± 3dB
Battery Type	2×AA size
Working Time	Up to 10 hrs
Dimension	254 x 51 mm (Handheld) 105 x 64 x 19 mm (Body-pack)
Weight	280 g (Handheld) 90 g (Body-pack)

We are the leading audio equipment manufacturer in CHINA, has engaged in the line of producing professional wired and wireless microphone systems since 1996. It's also the leading manufacturer in China possessing superb 'IR Series' microphone based on advanced 'Infrared Audio Wireless Transmission Technology', which has led Manztek to become an indispensable supplier of IR wireless microphone system on the market of Asia & U. S. A. since 2007.

Locating her plant of 10, 000 SQMs area with over 200 staff members in Enping China, Manztek chiefly consists of R&D, manufacturing and marketing departments. The company has been so far insisting on precise designing, standardization of production procedures and considerate service, which have enabled Manztek to enjoy compliment from the high-end demanding customers all over the world.

Keeping to principle of 'Never Sacrificing Quality For Quick Profits', the manufacturing of Manztek achieved 'ISO9001: 2000' Certifications in 2004 and most of the products achieved 'CE', 'R&TTE', 'FCC' and 'ROHS' Certifications. For years, Manztek has successfully cooperated with many famous companies all over the world. However 'Keeping Constant and Effective Improvement', will be our firm and perpetual faith.
