Enping Macarden Electronics Factory >> UHF Professional Four Channel Lavalier Microphone (MC-310L)

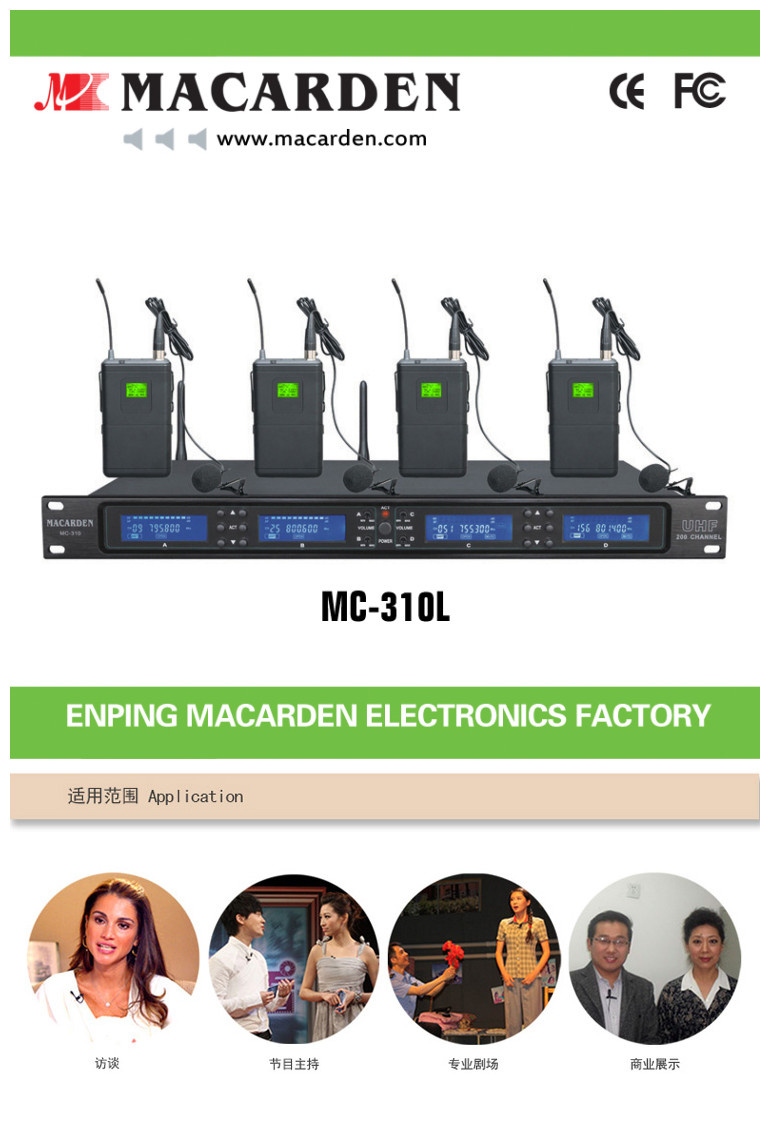

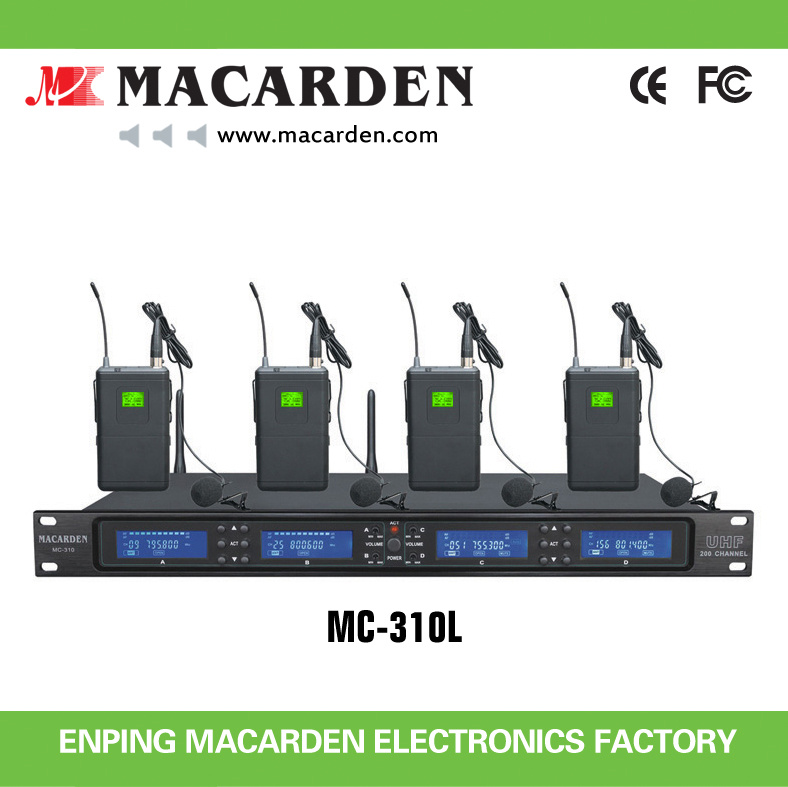

UHF Professional Four Channel Lavalier Microphone (MC-310L)

Name: UHF Professional Four Channel Lavalier Microphone (MC-310L)
Brand: china-manufacturer-directory.com
SKU: 724535615
Availability: InStock
Rating: 4.6 (101 reviews)

Supplier:	Enping Macarden Electronics Factory
Price:	Negotiable/Set
Min Order:	150/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	MC-310L
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency Range:	620-950MHz
Oscillation Mode:	Pll Synthesized
Application:	Measurement
Sound Channel:	Mono
Signal Transmission:	Wireless
Wireless Technology:	UHF
Directivity:	Uni-direction
Transducer Principle:	Electrodynamic Microphone
Output Impedance:	50-1000Ω
Sound Field Force:	Combined Type
Connector(',s):	XLR Mini
Style:	Tie Microphone

Product Description

UHF & PLL wireless microphone
Our wireless microphone are very popular in high quality. We specialized in wireless microphone for almost 10 years. Welcome you to test our wireless microphone.

MC-310
PLL & UHF FOUR CHANNEL WIRELESS TIE MICROPHONE
KEY FEATURES

UHF Band, Four Channel designed
Adopt the PLL Synthesized control technic, preset 200 non-interfered channels.
Transfer datas to transmitter by infrared.
Digital LCD information display.
Using high gain antenna, the space availability is more than 100 meters at the clearing.
EIA standard 1U dual channel rack-mountable receiver with metal classics.

MC-310 RECEIVER
RF Frequency Range: 620-950MHz
Channels by Automatic Channels Targeting: Multi Channels 200
Oscillation Mode: PLL Synthesized
Receiving Sensitivity: -90dBm
Signal/Noise Ratio:>103dB(A)
Max Deviation: ±48KHz
T.H.D: <0.5%@1KHz
Audio Output Level: 3.5dBv(1.5V)@1KHz
DC Power Supply: 1A 12~15V DC
Working Range: Up to 100m
Dimensions: 48X22X4.4cm

MC-310 BODYPACK TRANSMITTER
RF Frequency Range: 620-950MHz
Frequency Regulation:IR Sync
RF Output Power:10mW/30mW/country dependent
Max Deviation:±68KHz
Spurious Emissions:<-55dBc
Sound Cartridge:Condenser Microphone
Battery Requirement:2X1.5V AA alkaline
Dimensions: 11X6.7 cm

Remarks:Refer to actual product in the event of product discrepancy,Frequency range and peak deviation comply with the regulations of different countries.

Enping Macarden Electronics Factory. is located in Enping, Guangdong province, the "microphone manufacturing base in China". Our company, is a professional manufacturer specialized in the development, manufacture and corresponding sells of various UHF wireless microphone series and Conference System etc. We have a dynamic team, which is characterized by devotion, teamwork, integrity, and vision for the future. Combined with our advanced manufacturing and processing equipment, and refined craftsmanship, our products can be easily distinguished from those of our competitors. Up holding the principle of "Business by Quality, Making Development by Innovation, Customer First", we have been striven to meet the needs of customers with high performance, high quality and innovative designs of UHF wireless microphone series products.
Currently, our main markets are Southeast Asia, Europe, North and South America, and it is our aim to export our products worldwide so that more people may enjoy them. Our customers prefer us because of our trustworthiness, innovative products and professional after-sales service.
We will continue to progress through learning from advanced technology in the world, and work together with friends from home and abroad to provide high quality products and perfect after-sales service to satisfy the needs of customers.
