Product Specifications
| Prod Model: |
HCT-1K |
| Markets: |
North America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia |
| Type: |
Transmitter |
Product Description

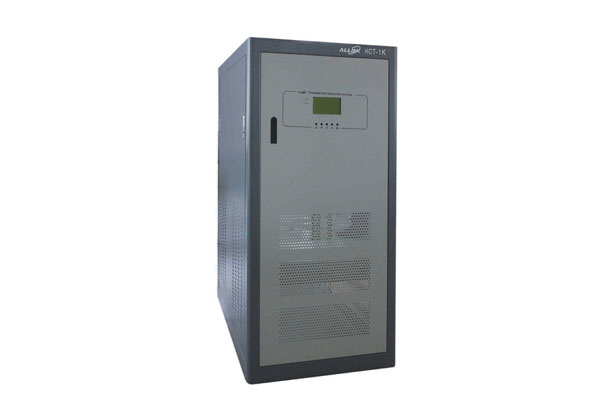

1KW/3KW/5KW/10KW UHF/VHF All Solid-state TV Transmitter
UHF/VHF All Solid-state TV Transmitter
L All solid-state circuit design, video/audio combined amplification, convenient to upgrade to digital TV transmitter
L New type broadcast quality dual exciters for backup, adopting advanced RF non-linearity correction technology to make the transmitter work under the super linear state, low distortion of TV transmission signal
L Super linearity
L Broadband power amplifier unit; Power amplifier modular-design, adopt high gain LDMOS high power valve with large redundancy and complete self-diagnosis function, easy for installation and maintenance
Functional Block Diagram of 10KW UHF All Solid-state TV Transmitter
Items
Performance Parameters
RF Specification
VHF
UHF
Rated Output Power
1KW
3/5KW
10KW
1KW
3/5KW
10KW
TV System Standard
PAL-D or Other System
Working Frequency Range
VHF I, III (Any selected channel )
470~806MHz (Any selected channel)
Video/Audio Power Ratio
10: 1 PAL-D or Other System
RF Output Impedance
50Ω
Output Interface
7/8"Flange
15/8" Flange
31/8" Flange
7/8"Flange
15/8" Flange
31/8" Flange
Frequency Stability
500HZ/ 3 months
Output Power Variation
+0.25dB
In Band Inter-modulation
≤ -52dB
Adjacent Channel Outside Spurious Output
≤ -60dB
Adjacent Channel Inside Spurious Output
≤ -40dB
Video
Specification
Video Input Level
1 Vp-p
Video Input Impedance
75Ω
Video Input Reflection Loss
≥ 34dB (0~5.5MHz +0.5 dB)
Modulation Mode
AM; Negative Polarity
Modulation Degree
≤ 87.5%
Field Time Distortion (Field Tilt)
≤ 2%
Line Time Distortion (Line Tilt)
≤ 2%
2T Sine-squared Pulse Distortion (KP)
≤ 2%
Brightness Nonlinear Distortion
≤ 10%
Variation of Blanking Level
≤ +2.5%
DG (Differential Gain)
± 5%
DP (Differential Phase)
± 5%
Chromaticity/Brightness Gain Difference
≤ 10%
Chromaticity/Brightness Time Delay Difference
+30ns
Continuous Random Clutter SCR
RMS Value, Non-weighted: ≥ 50dB; RMS Value, Weighted: ≥ 58dB
Periodic Clutter SCR
Vp-p: ≥ 56dB
Audio Specification
Audio Input Level
0dBm+6dB
Audio Input Impedance
600Ω (Balance) or ≥ 2KΩ (Imbalance)
Modulation Mode
FM
Pre-emphasis Time Constant
50 us
Max Frequency Deviation
± 50KHz
Audio Harmonics Distortion
≤ 1% (30Hz~15KHz) (100% Modulation)
Audio Amplitude-Frequency Characteristics
± 1dB (30Hz~15KHz, Pre-emphasis Time50us) (50% Modulation)
FM Signal to Noise Ratio
≥ 60dB (1KHz, 100%Modulation)
AM Noise
≤ -50dB (Modulation Free)
Inter-carrier Noise
≤ -45dB (100% Modulation)
Synchronous Parasitism AM Signal to Noise Ratio
≥ 40dB
Video to Audio Cross-modulation
≤ 10%
