Product Specifications
| Prod Model: |
ANT-352 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency: |
UHF/VHF-H |
| Usage: |
Broadcasting Antenna |
Product Description

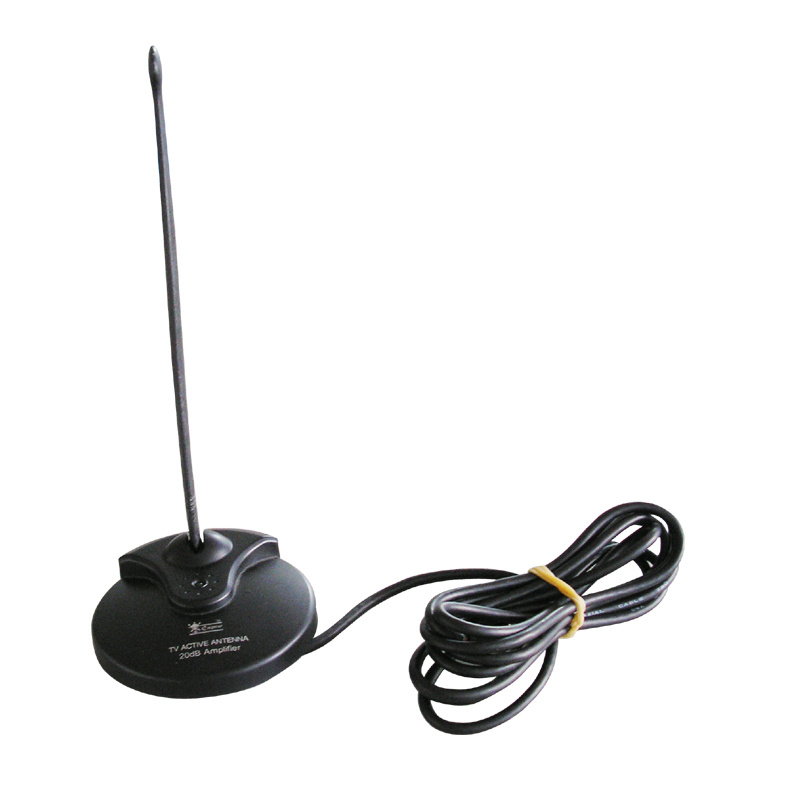

UHF/VHF-H 20dB amplify Active Antenna for Digital TV for Home Application
1. Active antenna with built in RF amplifier with digital TV
2. Receiving frequency range: VHF-H 170~230MHz, UHF 470~860MHz
3. Impedance: 75ohm Typ.
4. Supply voltage: DC 6~12V from DC input jack (with AC/DC adaptor from DC6~9V 50~100mA only)
5. DC 5V+/-10% from tuner of set top box
6. Current consumption: 12V in 35mA Max.
7. Operation assurance temperature range: -20 ~ +60 degrees
8. Storage assurance temperature range: -40 ~ +85 degrees
9. V. S. W. R: <2
10. Gain TYP. 20dB min. 15dB
11. Connector: F/IEC optional
12. Coaxiaal length: 2M
13. DC power jack: Pin 1.3mm
For over two decades, Our company with its group has been a major player in the CCTV security industry.We are now introducing our latest collection of digital TVs, ATSC/ATSC MH/DVB/CMMB/DMB/ISDB receivers and antennas for home and mobile applications.Digital TV sound radio with LED flash is our new creation, with dynamo function.
Meeting your OEM requirements is easy when you source from us.That's because we develop our own PCBs and DVB modules, and have 50 experienced R&D engineers in-house who will work on your modifications.Molding, electromechanical engineering and software development services are also provided.
Every month, we turn out up to 100, 000 digital TVs, DVB receivers and DVB modules using key components from industry-leading overseas suppliers.And 80 percent of our output is delivered to buyers in Europe, North and Latin America, and Japan.
For your assurance, all our operations are ISO 9001:2008-certified, and products are FCC-, CE-, FDA- and CSA-approved.Send us your OEM/ODM requirements today.
