Guangzhou Skytone Audio Co., Limited >> UHF Wireless Micro-Miniature Lavalier Microphone

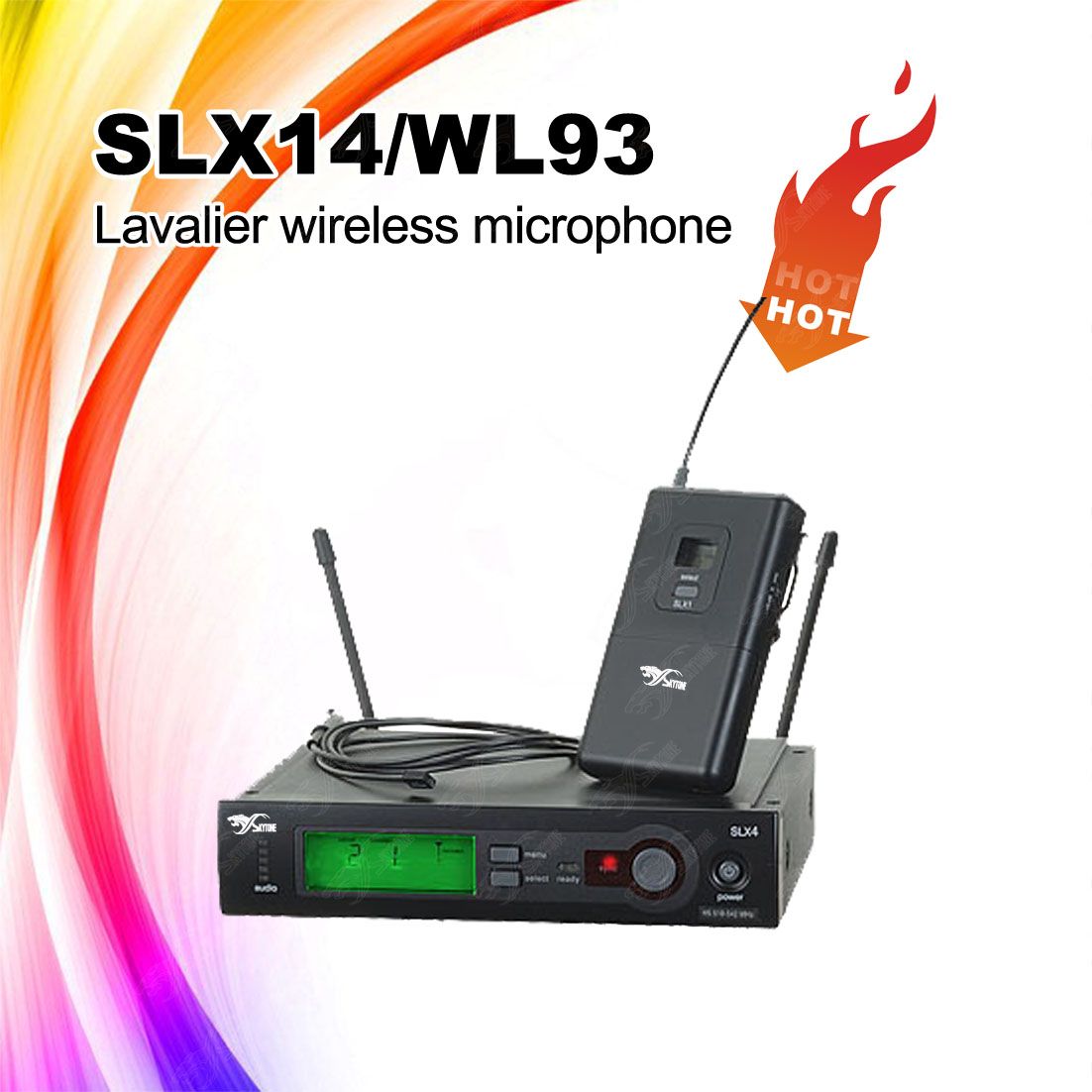

UHF Wireless Micro-Miniature Lavalier Microphone

Name: UHF Wireless Micro-Miniature Lavalier Microphone
Brand: China-Manufacturer-Directory.com
SKU: 758827945
Availability: InStock
Rating: 4.5 (137 reviews)

Supplier:	Guangzhou Skytone Audio Co., Limited
Price:	Negotiable/Piece
Min Order:	2/Piece
Quantity::
Trade Terms:	CFR,CIF,DAP

Product Specifications

Prod Model:	SLX14/WL93
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
System Type:	Lavalier Wirelss
Frequency Response:	45Hz-15kHz
Bodypacck:	Slx1 Bodypack Transmitter
Receiver:	Slx4 Receiver
Operating Range:	100m
Thd:	0.5%
Voltage:	AC110-120V /AC220-240V
Battary:	2 AA
Power:	12-18V
Application:	Measurement
Signal Transmission:	Wireless
Directivity:	Omni-direction
Sound Channel:	Stereo
Transducer Principle:	Electrodynamic Microphone
Connector(',s):	XLR 3 Pin
Wireless Technology:	UHF
Style:	Lavalier Microphone

Product Description

Wireless micro-miniature lavalier microphone
Lavalier mics
wireless mics
cordless microphone

WL93 Series Subminiature Condenser Lavalier Microphones
SLX1 Bodypack Transmitter
SLX4 Diversity Receiver

SLX Wireless Systems are powerful wireless tools that can be set up quickly and used confidently by installers and working bands. Features include auto frequency scan with transmitter setup, exceptional wireless clarity, and patented Audio Reference Companding.

SYSTEM FEATURES
--Auto Frequency Selection
Locates a clear channel instantly
--Auto Transmitter Setup
Infrared link automatically synchronizes the transmitter and receiver

RECEIVER FEATURES
--Detachable 1/4 wave antennas
--Backlit LCD
--Rack-mount hardware included
--1/4" and XLR audio outputs
BODYPACK TRANSMITTER FEATURES
--Bodypack works with headworn, lavalier and instrument microphones and cables
--Timed backlit LCD
--Frequency and power lockout

SLX14/WL93 Specification
Working Range	100M
Audio frequency Response	45-15000Hz
THD	<0.5% , typical
Dynamic Range	>100dB
Operating Temperature Range	-18ºC to +50ºC
SLX1 Specification
Audio input level	mic: -10dBV max 0dB:+10dBV max -10dB:+20dBV max
Gain adjustment Range	30dB
Input Impedance	1MΩ
RF output Power	10-30mW
Dimensions	108mmx64mmx19mm
weight	81g
Housing	galvanized steel
Power requirements	2"AA" size
Baattery life	up to 8 hours
SLX4 Specification
Dimensions	42mmx197mmx134mm
weight	816g
Housing	galvanized steel
Sensitivity	-105dBm for 12dB SINAD, typical
Power requirements	12-18V DC 150mA
Configuration	Impedance balanced
Max audio output Level	XLR connector:-13dBV(into600Ω)load 6.35mm(1/4")(into 3kΩ)load
Impedance	XLR connector:200Ω 6.35mm(1/4"):1kΩ
Image Rejection	>70dB, typical
WL93 Specification
Type	Condenser (electret bias)
Frequency Response	50 to 20,000 Hz
Polar Pattern	Omnidirectional, uniform with frequency
lmpedance	3000 ohms
Output Level	Open Circuit Voltage: -38 dBV/Pa* (13 mV) *1 Pascal = 94 dB SPL

Guangzhou Skytone Audio Co., Limited, was founded in 2004. Our office is located in the beautiful, bustling Guangzhou City, in Yilong Industrial Zone, Baiyun District, near Baiyun Lake.

We are specialized in professional loudspeakers, karaoke speakers, amplifiers and other audio peripheral such as microphone, mixer, equalizer, compressor, ect.

Our company gains a good reputation with good management mechanism, advanced technology, strong force of R&D, excellent quality and perfect after-sales services. There are many departments in our company including R&D, engineering, production, marketing, after-sales services and personnel.

To meet market developments and customers' needs, our company will continue to improve the product structure, operational management, as well as comprehensive quality of the staff. With brand-new products, vigorous power and stable paces, we will work hand-in-hand with customers home and abroad to create brilliant future!
