Enping Jinjue Electronic Co., Ltd. >> UHF Wireless Microphone (S-101)

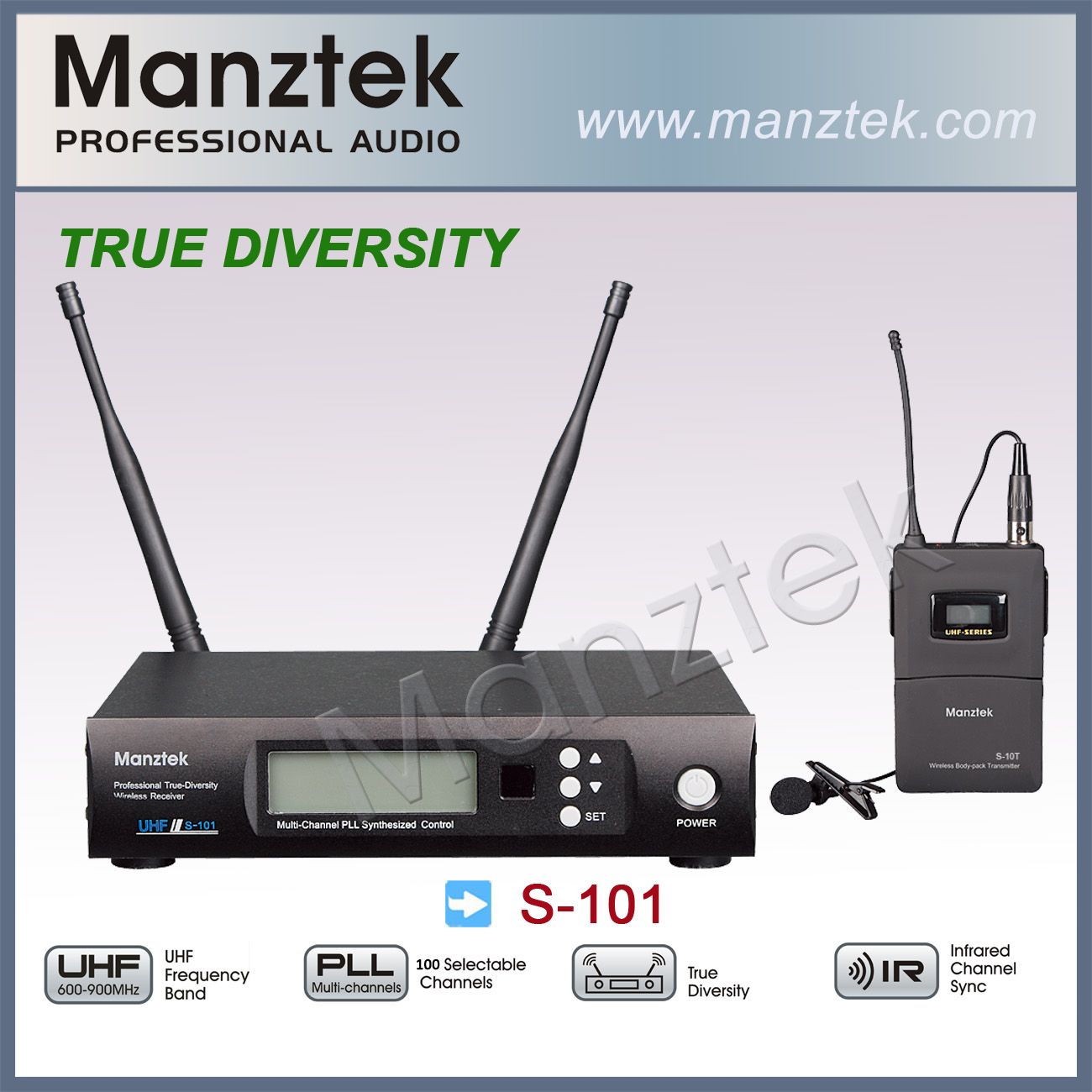

UHF Wireless Microphone (S-101)

Name: UHF Wireless Microphone (S-101)
Brand: china-manufacturer-directory.com
SKU: 619365844
Availability: InStock
Rating: 5 (41 reviews)

Supplier:	Enping Jinjue Electronic Co., Ltd.
Price:	Negotiable/Piece
Min Order:	100/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	S-101
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Signal Transmission:	Wireless
Application:	Meeting
Directivity:	Uni-direction
Transducer Principle:	Electrodynamic Microphone
Sound Field Force:	Pressure Type

Product Description

Highlighted features
UHF band, pll synthesized
High quality true diversity reception, up to 200m working distance
100 frequencies selectable, IR synchronization
Variable receiving sensitivity (squelch)
Smart LCD display on both receiver and transmitter

SYSTEM SPECIFICATIONS
Modulation Mode	Wide Band FM, PLL Synthesized
Carrier Frequency Range	UHF 640~950MHz
Bandwidth	25MHz each group, Frequency Interval 250KHz
Channels	Single Channel, 100 Frequencies
Audio Frequency response	75Hz~18KHz ± 3dB
Dynamic Range	100dB
Max. Deviation Range	± 80KHz (with level limiting)
T. H. D.	< 0.5% @ 10KHz Deviation
S/N	> 105dB
Working Range	Up to 200m
RF Carrier Stability	± 0.005% (-10º C-40º C)
Receiver Main Frame Size	1/2 19" EIA Standard 1-Rack Unit
Receiver Power Supply	DC12V, 600mA


HANDHELD MICROPHONE (S-10H)
Carrier Frequency Power	30mw(High), 3mw(Low)
Sound Cartridge	Dynamic
Battery Type	2× AA size
Battery Duration	Up to 16 hrs(Low), 10 hrs(High)
Dimension	250 x 55 mm
Weight	280 g


BODY-PACK TRANSMITTER (S-10T)
Carrier Frequency Power	30mw(High), 3mw(Low)
Tie-Clip / Headset Mic	Condenser
Battery Type	2× AA size
Battery Duration	Up to 16 hrs(Low), 10 hrs(High)
Dimensions	180 x 63 x 19 mm
Weight	100 g

We are the leading audio equipment manufacturer in CHINA, has engaged in the line of producing professional wired and wireless microphone systems since 1996. It's also the leading manufacturer in China possessing superb 'IR Series' microphone based on advanced 'Infrared Audio Wireless Transmission Technology', which has led Manztek to become an indispensable supplier of IR wireless microphone system on the market of Asia & U. S. A. since 2007.

Locating her plant of 10, 000 SQMs area with over 200 staff members in Enping China, Manztek chiefly consists of R&D, manufacturing and marketing departments. The company has been so far insisting on precise designing, standardization of production procedures and considerate service, which have enabled Manztek to enjoy compliment from the high-end demanding customers all over the world.

Keeping to principle of 'Never Sacrificing Quality For Quick Profits', the manufacturing of Manztek achieved 'ISO9001: 2000' Certifications in 2004 and most of the products achieved 'CE', 'R&TTE', 'FCC' and 'ROHS' Certifications. For years, Manztek has successfully cooperated with many famous companies all over the world. However 'Keeping Constant and Effective Improvement', will be our firm and perpetual faith.
